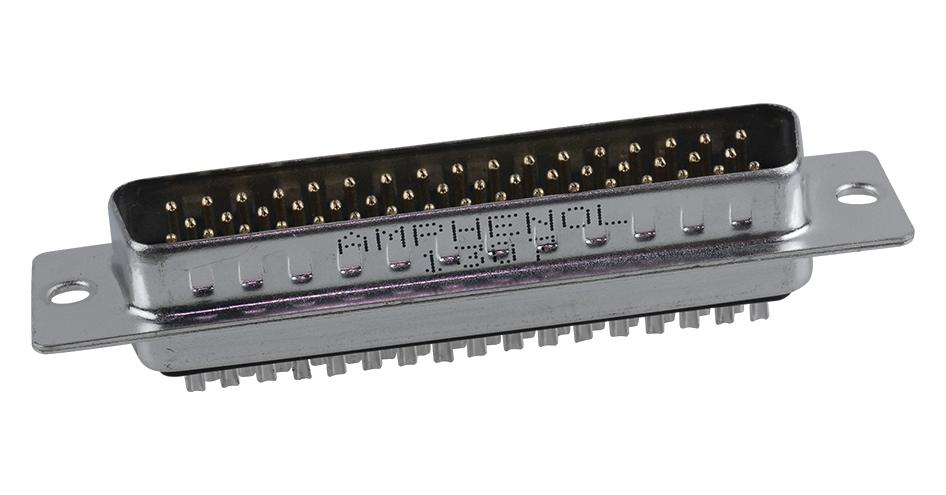

AMPHENOL COMMUNICATIONS SOLUTIONS L717SDD50P D-Sub Connector
The L717SDD50P is a 50-position standard density D-Sub connector, plug, from the SD series. It features a tin over nickel-plated steel shell with dimples for secure connection, gold-plated brass pin contacts, and a UL94V-0 glass-filled thermoplastic insulator. The SD series ensures precise contact formation and a closed entry contact cavity design. It supports a current rating of 3A, with a voltage rating of 250VAC RMS at 50Hz, and an insulation resistance of 1000 megaohms at 500VDC. The maximum contact resistance is 20 milliohms, and the operating temperature range spans from -55°C to +125°C. Suitable applications include communications, networking, and industrial environments.
AMPHENOL COMMUNICATIONS SOLUTIONS L717SDD50P D-Sub Connector Specifications:
- Contact Resistance: 30m ohms max. at DC 100mA
- Insulator Resistance: 1000M ohms min. at DC 500V
- Current Rating: 3A
- Voltage Rating: AC 250V RMS at 50Hz
- Dielectric Withstanding Voltage: AC 1000V for 1 minute
- Operating Temperature: -55°C to +125°C
- Shell Material: Tin-plated steel
- Contact Material: Brass with gold over nickel plating
- Insulator Material: UL94V-0 glass-filled thermoplastic
- Contact Plating: Gold flash
- Contact Finish: Tin over 50
Buy the Buy Ampholen 50-Position D-Sub Connector Part Number L717SDD50P Online
Order the Ampholen D-Sub Connector L717SDD50P online today to ensure reliable, high-performance connectivity for your networking, communication, and industrial applications. Designed with a robust steel shell, gold-plated brass contacts, and UL94V-0 thermoplastic insulator, this connector offers excellent durability and precise contact formation. With a current capacity of 3A and voltage rating of 250VAC RMS at 50Hz, it guarantees optimal performance under tough conditions. Perfect for professional use, this connector combines quality, safety, and efficiency for your wiring needs.
Get Ampholen L717SDD50P today—built for precise connections and long-lasting durability in industrial and communication systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L717SDD50P?
You can click on the BUY or RFQ button to purchase L717SDD50P from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L717SDD50P?
You can download the L717SDD50P datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L717SDD50P?
AMPHENOL COMMUNICATIONS SOLUTIONS
