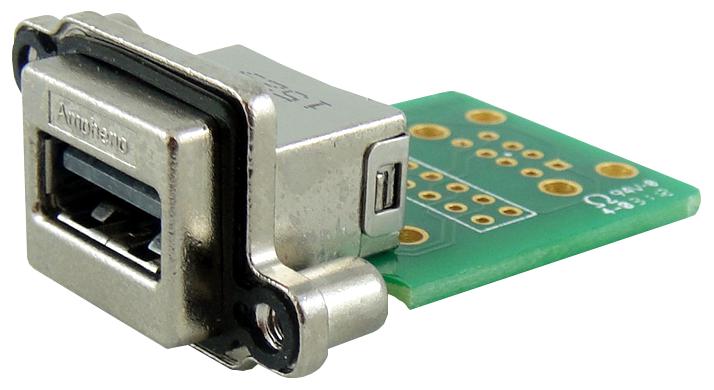

AMPHENOL COMMUNICATIONS SOLUTIONS MUSBRAA1130 Rugged USB Receptacle
The MUSBR-AA11-30 is a rugged, black, 4-contact USB Type-A receptacle designed for harsh environments. It features a right-angle PCB mount with wiring holes, a unified thread standard shell, and a dust cover for protection. Meeting military shock and vibration standards in both mated and unmated conditions, this connector provides a reliable USB 2.0 interface supporting data transfer rates up to 480 Mbps. Constructed with an engineering thermoplastic housing and phosphor bronze contacts with a minimum of 30µ-inch gold over 50µ-inch nickel plating, it offers durability and corrosion resistance. Key specifications include a contact resistance of 30mΩ minimum, insulation resistance of 1000MΩ minimum, and support for up to 1500 mating cycles. It complies with UL94V-0 flammability standards and operates within a temperature range of -40°C to 105°C. Ideal for industrial, medical, consumer electronics, defense, military, aerospace, portable devices, test and measurement, and signaling applications.
AMPHENOL COMMUNICATIONS SOLUTIONS MUSBRAA1130 Rugged USB Receptacle Specifications:
- Contact Resistance: 30 mΩ min
- Insulation Resistance: 1000 MΩ min
- Current Rating: 1.5A per contact
- Operating Temperature: -40°C to 105°C
- Material: Phosphor Bronze with 30µ-inch gold over 50µ-inch nickel
- Housing: Engineering thermoplastic, UL94V-0 rated, black
- Shell Material: Die cast zinc alloy, nickel plated
- Soldering Process: Hand or wave soldering peaked at 260°C for max 8 seconds
- Number of Mating Cycles: 1500
- Flammability: UL 94V-0
- Vibration: Per EIA364-28, Condition V, Letter A
- Shock: Per EIA364-27, 11 ms, 30G
- Humidity: Per EIA364-31, Condition C, method III
- Salt Spray Resistance: 250 hours per EIA364-26
- Dimensions: Compatible with standard USB 2.0, right-angle PCB mount
- Thread Type: Unified #4-40 UNC or M3x0.5 depending on shell, with metric options available.
- Dust Cover: Included (black), supplied bulk-packed
- Contact Material: Phosphor Bronze, gold and nickel plated
- Compliance: RoHS, UL94V-0
Buy the Buy Amphenol USB Receptacle Part Number MUSBRAA1130 Online
Purchase the rugged USB Receptacle online today to ensure reliable connectivity in demanding industrial, medical, or military environments. This high-quality connector features a durable thermoplastic housing, gold-plated contacts, and a dust cover for extra protection. Designed to withstand shock, vibration, and extreme temperatures, it supports USB 2.0 data transfer speeds up to 480 Mbps. Perfect for portable devices, testing equipment, signaling, and defense applications, providing long-lasting performance and seamless integration into your systems.
Buy Amphenol MUSBRAA1130 now and experience unmatched reliability and performance in harsh environments with superior durability and high data transfer rates.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS MUSBRAA1130?
You can click on the BUY or RFQ button to purchase MUSBRAA1130 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MUSBRAA1130?
You can download the MUSBRAA1130 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of MUSBRAA1130?
AMPHENOL COMMUNICATIONS SOLUTIONS
