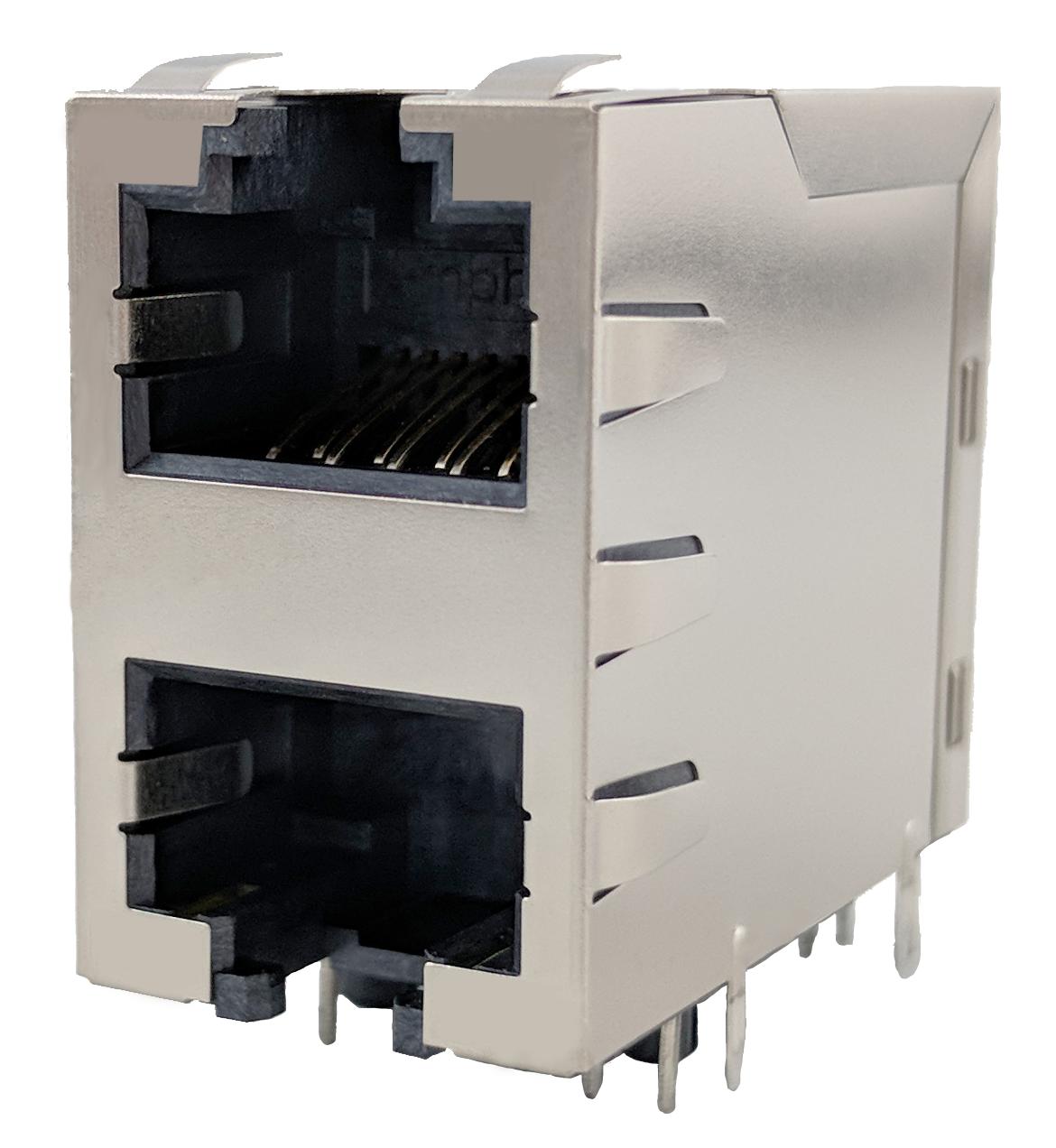

AMPHENOL COMMUNICATIONS SOLUTIONS RJE1R288225403 Modular Jack
The RJE1R series of modular jack connectors from Amphenol offers a flexible 2x1 stacked design with options for CATS, CAT5e, or CAT6 performance, suitable for diverse communication and industrial applications. Designed for durability, these connectors support up to 750 mating cycles and operate from -55°C to +85°C. They feature high-quality materials including thermoplastic insulators, gold-plated contacts, copper alloy shields, and LED indicator options for enhanced functionality. Compatible with industry-standard plugs, they meet multiple certifications, ideal for high-speed Ethernet, industrial IoT, telecommunication, and computing systems.
AMPHENOL COMMUNICATIONS SOLUTIONS RJE1R288225403 Modular Jack Specifications:
- Material: High temperature thermoplastic insulator complies with UL94V-0
- Contacts: Phosphor bronze, gold plated (6u”, 15u”, 30u”, 50u”) over nickel
- Shield: Copper alloy or stainless steel, nickel plated with tin dipped tail
- Electrical Performance: Contact resistance max 20 mΩ, insulation resistance min 500 MΩ at 500V DC
- Current Rating: 1.5 Amps, Voltage Rating: 125VAC, Dielectric Withstand: 1000V AC, 60Hz for 1 minute
- LED: Forward voltage max 2.6V, forward DC current 20mA, wavelength 565-625nm, light intensity 0.4-1.5 mcd
- Environmental: Operating temperature -55°C to +85°C, RoHS, REACH, UL certified
- Durability: Supports up to 750 mating cycles with reliable performance
- Packaging: Available in tray or tape and reel
Buy the Amphenol Series RJE1R Modular Jack: RJE1R288225403
Purchase the Amphenol RJE1R modular jack online today to ensure your communication systems are equipped with durable, high-performance connectors. Ideal for industrial, networking, and telecommunication applications, this flexible 2x1 stacked design supports CAT5e, CAT6, and CATS performance levels. With optional LED indicators, shielded and unshielded configurations, it withstands harsh environments from -55°C to +85°C, offering long-lasting durability with 750 mating cycles. Optimize your setup and enjoy hassle-free installation, excellent EMI shielding, and high-speed Ethernet compatibility by buying now.
Buy Amphenol RJE1R now and experience unmatched reliability and high-speed performance for industrial and networking systems.
