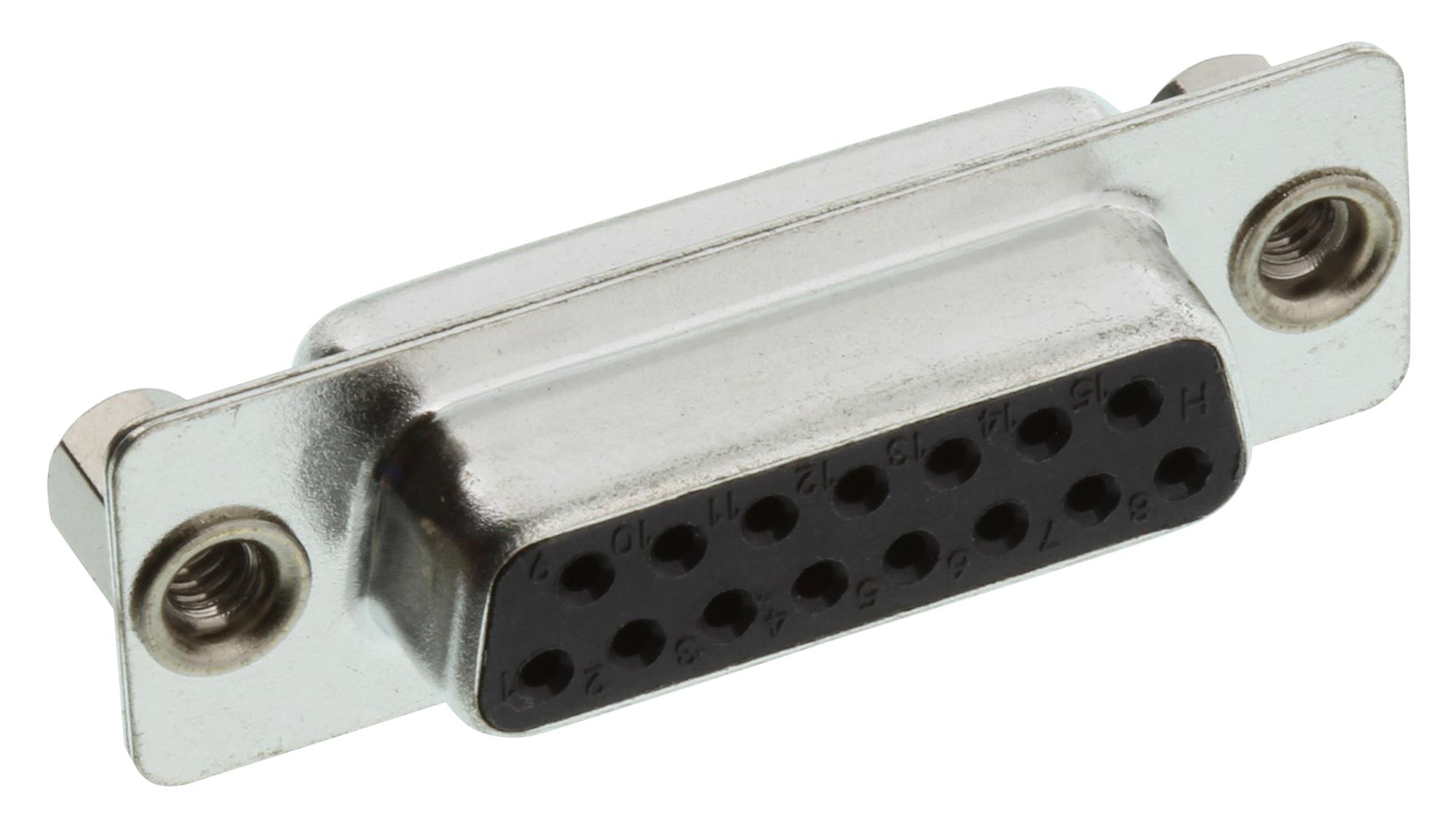

AMPHENOL COMMUNICATIONS SOLUTIONS L77SDAH15SOL2RM5C309 D-Sub Connector
The Amphenol SD series D-Sub connectors offer precision-formed contacts and a closed entry insulator, ensuring high reliability for various industrial, telecom, and commercial applications. These PCB mount connectors come in standard and high-density configurations, featuring stamped and formed contacts that meet MIL C24308 and NFC 93425-HES standards. Made with durable materials including UL 94V-0 thermoplastic and gold-plated brass, they provide excellent electrical performance with current ratings up to 5A. Their compact design supports reliable connections in limited spaces, making them ideal for industrial automation, communication systems, and hardware requiring secure, high-quality wiring solutions.
AMPHENOL COMMUNICATIONS SOLUTIONS L77SDAH15SOL2RM5C309 D-Sub Connector Specifications:
- Current Rating: Standard Density 5A, High Density 3A
- Voltage Rating: 250V AC/rms 50Hz; 1000V AC/rms 50Hz for one minute
- Material: Shells - Steel, Insulator - UL 94V-0 thermoplastic, Contact - Brass with gold plating
- Contact Resistance: Max 20mΩ
- Operating Temperature: -55°C to +125°C
- Salty spray resistance: 24 hours
- Withstanding Voltage: 1000V AC for one minute
- Dimensions vary with configuration; standard density contact spacing 2.54mm, high density varies accordingly
- Connection Type: PCB termination with stamped and formed contacts, threaded or non-threaded options available
- Plating thickness: Gold flash 0.381 μm (151”) and 0.76 μm (30p”) options
- Panel mount options include threaded, retention clips, screwlocks, and different shell finishes for durability
- The series meets industry standards for quality, reliability, and electrical performance, suitable for a wide range of industrial and communication equipment.
Buy the Amphenol Series SD D-Sub Connector: L77SDAH15SOL2RM5C309
Order the Amphenol SD series D-Sub connector L77SDAH15SOL2RM5C309 online today to benefit from high-quality construction, industry-standard compliance, and dependable electrical performance. Designed for PCB mounting, these connectors feature precision contacts, gold plating, and versatile mounting options including screwlocks and retention clips. Ideal for industrial automation, telecom, and communication systems, they ensure secure and stable connections even in harsh environments. With fast online purchasing, you can quickly enhance your electronics with durable, reliable interconnect solutions from a trusted brand.
Buy Amphenol SD Series D-Sub connector L77SDAH15SOL2RM5C309 now and experience unmatched reliability and performance for industrial and telecom applications.
