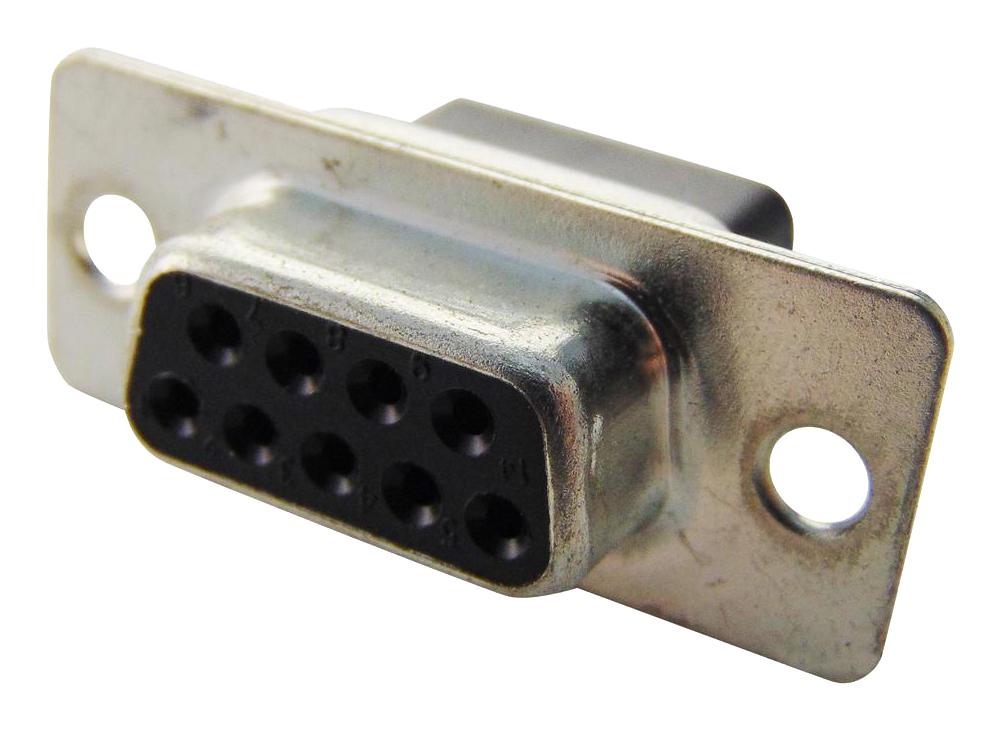

AMPHENOL COMMUNICATIONS SOLUTIONS L77SDEH09SOL2RM8C309 PCB Connector
The Amphenol SD series features precision-formed contacts with sealed entry contact cavities, offering high reliability and quality. Designed for PCB mounting, these connectors are suitable for industrial, telecom, and standard connection applications. They come with options for standard and high-density configurations, plated with gold and nickel for durability, and accommodate various mounting options including screwlocks and retention clips. With excellent electrical, mechanical, and climatic performance, the SD series ensures long-lasting, dependable connections in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS L77SDEH09SOL2RM8C309 PCB Connector Specifications:
- Materials: Steel shells, glass-filled thermoplastic insulators (UL 94V-0), brass pin contacts with gold and nickel plating, phosphor bronze socket contacts with gold plating
- Electrical Ratings: Standard density 5A, high density 3A, voltage rating 250V AC rms, withstand voltage 1000V AC rms for one minute, insulation resistance 1000MΩ at 500V DC, contact resistance max 20mΩ
- Operating Temperature: -55°C to +125°C
- Mechanical Data: Single contact insertion force SD: 0.06kg min, 0.54kg max; HD: 0.02kg min, mating/unmating force specified per configuration
- Dimensions: Standard density overall dimensions vary with contact count, between approximately 12.55mm to 69.32mm in length, width, and height, detailed dimensional charts available
- Finish: Gold flash plating 0.38μm (151”), nickel plating over contacts and shells, shell plating optional with specific thicknesses
- Mounting: Panel mounting options include threaded rear inserts, retention clips, and different screwlock configurations
- Certifications: RoHS compliant, MIL C24308, NFC 93425-HES
Buy the Amphenol L77SDEH09SOL2RM8C309 – Reliable PCB Connectors for Industrial Applications
Order the Amphenol PCB connector now for secure, reliable electrical connections in industrial, telecom, and standard applications. This high-quality connector features sealed cavities, diverse mounting options, and robust gold and nickel plating for durability. Designed for demanding environments, it ensures long-lasting performance, easy assembly, and dependable operation. Suitable for standard and high-density configurations, these connectors are essential for your manufacturing, automation, and communication needs. Purchase online today and benefit from quick delivery and technical support.
Get Amphenol L77SDEH09SOL2RM8C309 today—built for precision and long-lasting durability in industrial and telecom environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L77SDEH09SOL2RM8C309?
You can click on the BUY or RFQ button to purchase L77SDEH09SOL2RM8C309 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L77SDEH09SOL2RM8C309?
You can download the L77SDEH09SOL2RM8C309 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L77SDEH09SOL2RM8C309?
AMPHENOL COMMUNICATIONS SOLUTIONS
