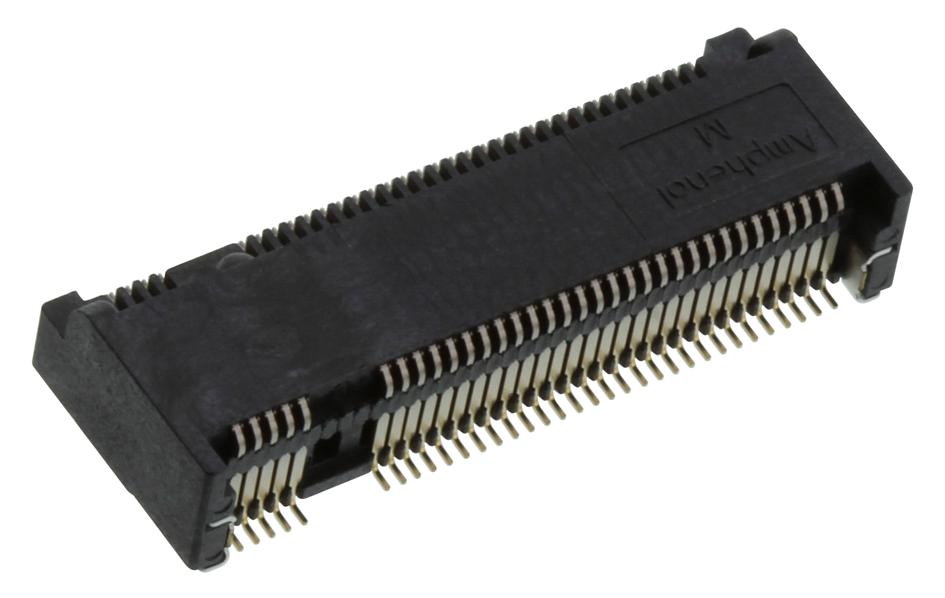

AMPHENOL COMMUNICATIONS SOLUTIONS MDT275E01001 PCIe M.2 Connector
Amphenol ICC’s PCIe M.2 Gen 3 and Gen 4 card edge connectors deliver high-performance, space-saving, and durable solutions for high-speed data transfer applications. These connectors support up to 67 contacts on a 0.50mm pitch, compatible with PCIe 3.0, USB 3.0, and SATA 3.0 standards. They are designed for laptops, tablets, storage, and server applications, supporting both single and double-sided modules, with upgradable Gen 4 support for 16Gb/s data rates. Features include various connector heights, keying options, and robust mechanical and environmental performance, ensuring reliable operation over thousands of mating cycles.
AMPHENOL COMMUNICATIONS SOLUTIONS MDT275E01001 PCIe M.2 Connector Specifications:
- Contact: Copper alloy with gold plating suitable for lead-free soldering
- Contact Resistance: Max 55mΩ initial, Max 20mΩ change
- Insulation Resistance: >5 x 10^8Ω at 500V DC
- Dielectric Withstanding Voltage: >300V AC at sea level
- Current Rating: 0.5A per contact, temperature rise not exceeding 30°C
- Voltage Rating: 50V AC per contact
- Durability: 25-60 mating cycles (standard), up to 5000 with gold plating
- Operating Temperature: -40°C to +80°C
- Shock Resistance: 250G (notebooks), 285G (tablets)
- Vibration: EIA-364-28, EIA-364-1000
- Environmental: UL 94 V-0 housing, lead-free compatible
- Packaging: Tape & Reel
- Certified: GS-12-1142, GS-12-1195, GS-12-1248
Buy the Amphenol PCIe M.2 – Reliable High-Speed Card Edge Connectors for Industrial Applications
Enhance your electronic projects with the durable, high-performance PCIe M.2 connector from Amphenol. Designed to support PCIe 3.0 and 4.0, this connector offers reliable data transmission for laptops, tablets, and storage solutions. Its space-saving design and various height options enable flexible installation in compact spaces. Crafted with copper alloy contacts and gold plating for durability, it withstands thousands of mating cycles and harsh environmental conditions. Ideal for high-speed peripherals, upgradeable to Gen 4, and compliant with industry standards, making it the perfect choice for advanced electronic construction.
Order your Amphenol Series MDT275E01001 PCIe M.2 connector today and enhance your high-speed, space-efficient storage and server solutions.
