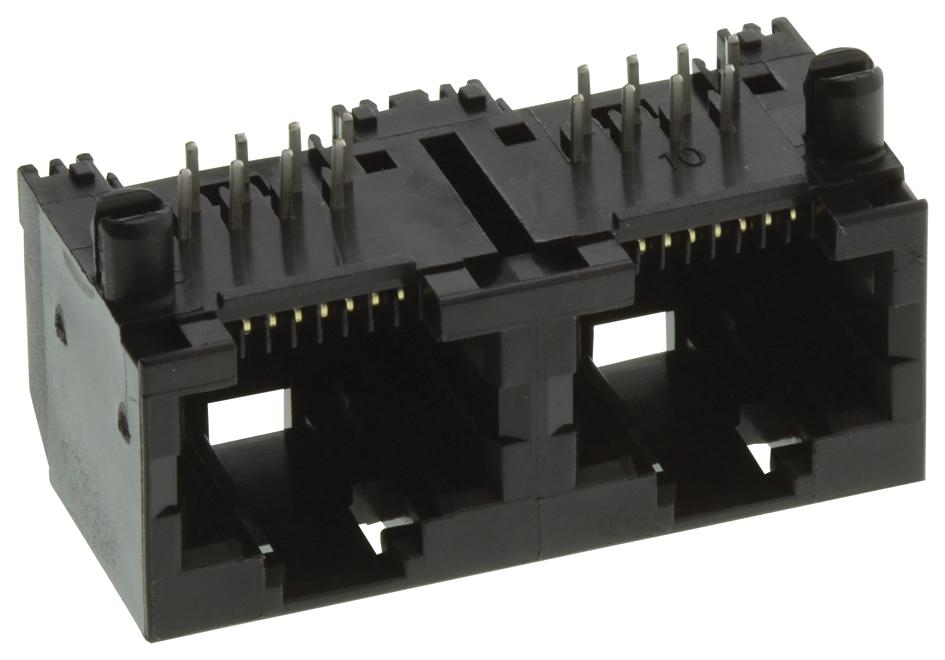

AMPHENOL COMMUNICATIONS SOLUTIONS RJHSE508002 Modular Jack
The RJHSE series EMI Quiet modular jack supports LAN applications such as routers, adapters, and network switches. It features built-in LEDs, optional shielding, and various mounting options including right-angle and vertical. Designed for durability, it withstands up to 750 mating cycles and operates from -55°C to 85°C. With a contact resistance of max 20 milliohms, a voltage rating of 125VAC, and a current rating of 1.5A per pin, this connector is ideal for industrial, communications, and PC networking needs. Its RoHS compliance and support for PoE standards make it versatile and reliable.
AMPHENOL COMMUNICATIONS SOLUTIONS RJHSE508002 Modular Jack Specifications:
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 500 MΩ at 500V DC for 2 minutes
- Voltage Rating: 125VAC
- Current Rating: 1.5A per contact
- Operating Temperature: -55°C to 85°C
- Durability: 750 mating cycles
- Dimensions: Custom depending on port configuration
- Materials: High Temp thermoplastic insulator, phosphor bronze contacts, stainless steel shield
- LED Voltage: 2.6V max. @ 20mA
- LED Wavelengths: Red 628+10 nm, Green 570+5 nm, Yellow 587+7 nm
- Supporting PoE, RoHS compliant
Buy the Amphenol Series RJHSE Modular Jack: RJHSE508002
Enhance your networking projects with the Amphenol RJHSE508002 modular jack, designed for robust industrial and communication applications. Featuring built-in LEDs, shield options, and multiple mounting configurations, it ensures reliable connections across various environments. Its durability supports up to 750 mating cycles, while operating temperature ranges from -55°C to 85°C. The connector supports PoE standards, making it suitable for high-power Ethernet devices. RoHS compliant, easy to install, and engineered for long-lasting performance, making it the perfect choice for technical professionals seeking quality and reliability.
Get Amphenol RJHSE508002 today—built for precision, durability, and EMI performance in networking and industrial setups.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJHSE508002?
You can click on the BUY or RFQ button to purchase RJHSE508002 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJHSE508002?
You can download the RJHSE508002 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJHSE508002?
AMPHENOL COMMUNICATIONS SOLUTIONS
