AMPHENOL COMMUNICATIONS SOLUTIONS T816120A1S101CEU Latch Header
The T816 series latch header is a 2.54mm pitch connector suitable for various electronic applications, featuring multiple positions, color options, and plating choices. Designed with PBT+25% G.F insulators, brass contacts, and over 50u" Ni or gold plating, it offers high insulation resistance of 1000 MQ min at 500V/DC, and a current rating of 3.0A. It is RoHS compliant, supports operating temperatures from -40°C to +105°C, and features various latch types for secure connections in compact, reliable configurations.
AMPHENOL COMMUNICATIONS SOLUTIONS T816120A1S101CEU Latch Header Specifications:
- Pitch: 2.54mm
- Housing Colors: Grey or Black
- Number of Positions: 6, 8, 10, 14, 16, 18, 20, 24, 26, 64
- Pin Dimensions: 5.08mm to 78.74mm based on position count
- Material: PBT+25%G.F insulator, brass contacts
- Plating Options: Gold flash over 50u" Ni, full tin over 50u" Ni
- Electrical Resistance: 20 mΩ max at 1A
- Insulation Resistance: 1000 MQ min at 500V/DC
- Dielectric Withstanding Voltage: 500V RMS at 60Hz for 1 min
- Current Rating: 3.0A max
- Voltage Rating: 250V AC/RMS 60Hz, DC
- Operating Temperature Range: -40°C to +105°C

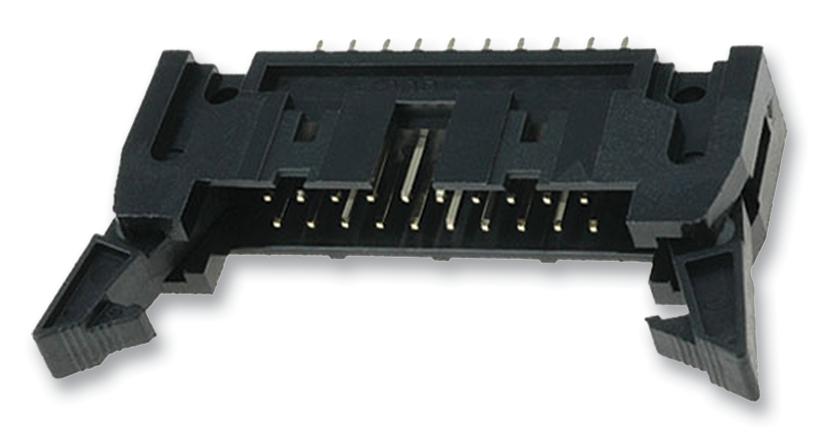

Buy the Buy BERG 2.54mm Pitch Latch Header Part Number T816120A1S101CEU Online
Purchase the BERG latch header T816120A1S101CEU online today to enhance your electronic projects with a trusted, durable connector. Its 2.54mm pitch, multiple position options, and RoHS compliance make it ideal for secure, compact connections in various applications. Crafted with high-quality materials like PBT+25%G.F insulators and brass contacts with gold or tin plating, this part offers excellent electrical performance, insulation resistance of 1000 MQ, a current rating of 3A, and a temperature range from -40°C to +105°C. Easy to install and reliable for your manufacturing needs.
Order your BERG Series T816120A1S101CEU latch header today and secure reliable connections with this high-quality, RoHS compliant component.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816120A1S101CEU?
You can click on the BUY or RFQ button to purchase T816120A1S101CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816120A1S101CEU?
You can download the T816120A1S101CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816120A1S101CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
