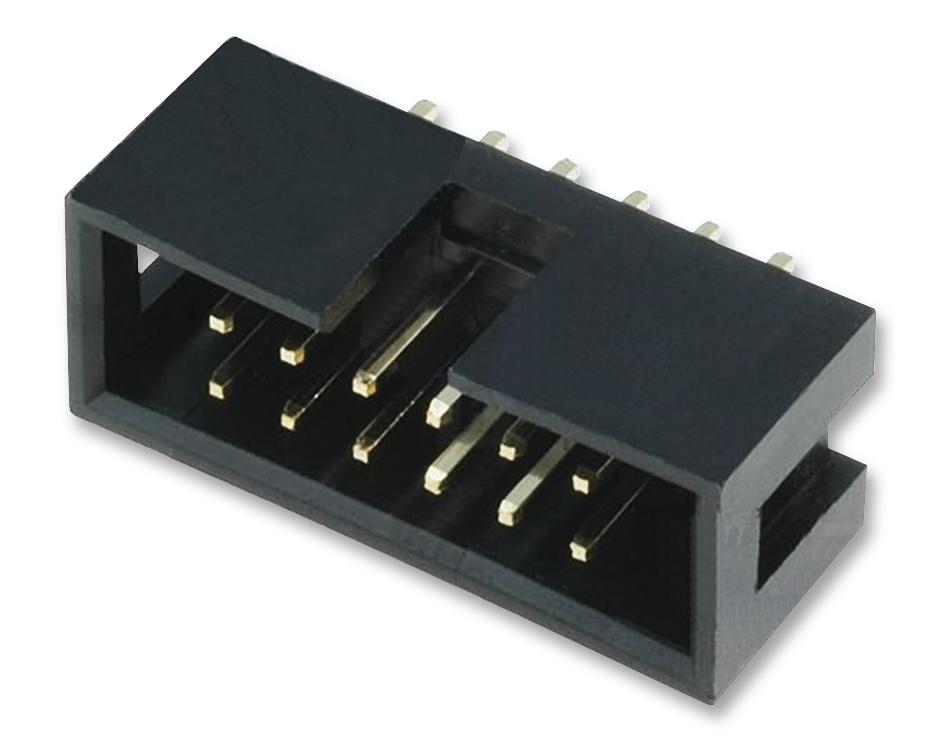

AMPHENOL COMMUNICATIONS SOLUTIONS T821112A1S100CEU Box Header Connector
The T821112A1S100CEU is a 2.54mm pitch box header connector designed for industrial applications requiring reliable and durable connections. Constructed from thermoplastic with UL 94V-0 certification, it features phosphor bronze contacts plated with full flash gold or selected gold, under-plated with 50u" nickel for corrosion resistance. It supports up to 64 positions, with configurations including straight and right-angle orientations. Capable of operating from -40°C to +105°C, it has an insulation resistance of 1000 Megohms and a dielectric withstand voltage of 1000 VAC for one minute, rated for 3A per contact at 250VAC/RMS.
AMPHENOL COMMUNICATIONS SOLUTIONS T821112A1S100CEU Box Header Connector Specifications:
- Material: Thermoplastic UL 94V-0
- Contact Material: Phosphor Bronze
- Plating: Full flash gold or selected gold, under-plated with 50u" nickel
- Number of Positions: Up to 64
- Contact Resistance: 20 mΩ max at 1A
- Insulation Resistance: ≥1000 Megohms
- Dielectric Withstanding Voltage: 1000 VAC RMS for 1 minute
- Operating Temperature: -40°C to +105°C
- Current Rating: 3A per contact
- Voltage Rating: 250VAC RMS, 60Hz
- Physical Dimensions: 2.54mm pitch, straight or right-angle orientation
- Color Options: Grey, Black
- Plating Variants: Full flash gold, 15u" gold, 30u" gold, gold flash with tin
- Stand-offs: For pin compatibility, with optional full tin plating
- Standards: UL Listed, RoHS Compliant
- Application: Industrial electronic assemblies, control systems, automation equipment
Buy the Mphenol 7821 R1 – Reliable Box Header for Industrial Applications
Purchase the Mphenol box header connector online today and ensure robust, reliable connections for your industrial electronics projects. Designed with high-quality materials like thermoplastic and phosphor bronze contacts, this connector guarantees excellent performance across a temperature range of -40°C to +105°C. Its gold-plated contacts provide corrosion resistance, ensuring longevity. Suitable for up to 64 positions with configurations supporting both straight and right-angle orientations, it features a dielectric withstand voltage of 1000VAC and an insulation resistance of 1000 Megohms—perfect for demanding industrial environments.
Get Mphenol 7821 R1 today—built for precision, ruggedness, and long-lasting durability in industrial electronics.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T821112A1S100CEU?
You can click on the BUY or RFQ button to purchase T821112A1S100CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T821112A1S100CEU?
You can download the T821112A1S100CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T821112A1S100CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
