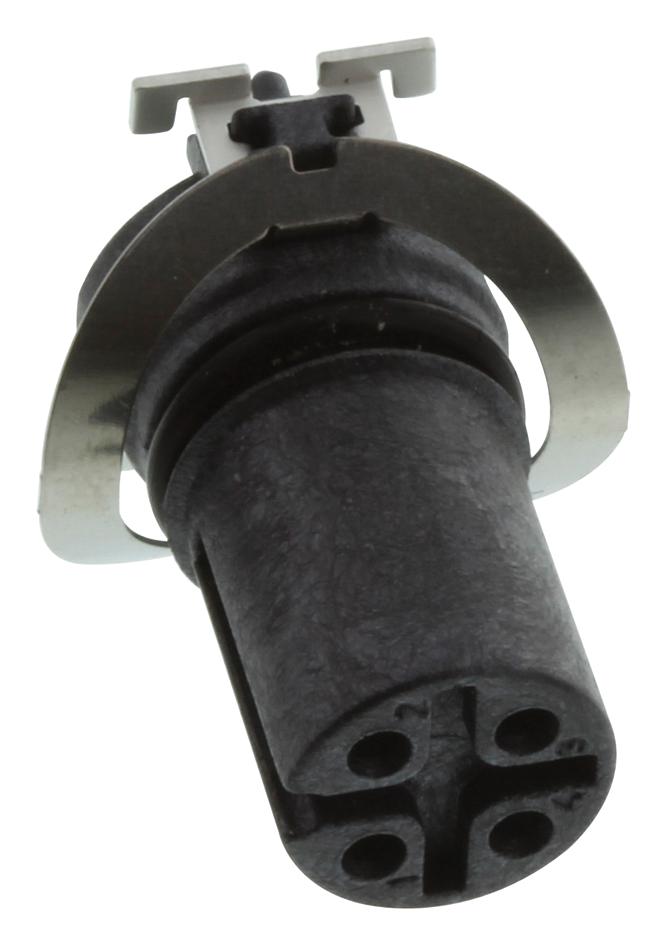

AMPHENOL LTW MSAS04PFFTEE0001 SMT Industrial Connector
The product is a high-quality SMT-type connector designed for reliable electronic connections in industrial and automation systems. Featuring a thermoplastic housing, gold-plated copper female pins, and stainless steel springs, it offers exceptional durability and corrosion resistance. The connector supports a voltage rating of up to 250V DC/AC for 3- and 4-pin configurations, with a rated current of 4A. It is suitable for temperatures ranging from -55°C to +125°C and withstands salt spray testing for 48 hours, making it ideal for demanding industrial environments.
AMPHENOL LTW MSAS04PFFTEE0001 SMT Industrial Connector Specifications:
- Housing: Thermoplastic
- Female Pin Material: Copper Alloy, Gold Plated
- Ground Material: Copper Alloy, Tin Plated
- Spring Material: Stainless Steel
- O-Ring Material: Silicone, Gray
- Contact Resistance: 10mΩ Max
- Insulation Resistance: 100MΩ Min
- Dielectric Withstanding Voltage: 1kV
- Rated Voltage: 250V DC/AC (3Pin & 4Pin), 60V DC/AC (1Pin)
- Rated Current: 4A for 3Pin, 4Pin, & 5Pin; 2A for BPin
- Temperature Range: -55°C to +125°C
- Salt Spray Test: 48 hours
- SMT Soldering: 260°C/5 seconds
- Min SMT Paste Thickness: 0.12mm
- Durability: 1000 Cycles
- Connector Type: SMT
- Pin Count: 3, 4, 5, BPin, 8Pin
Buy the Industrial Solutions MSAS04PFFTEE0001 – Reliable SMT Connector for Industrial Applications
Enhance your industrial assemblies with this durable SMT industrial connector featuring a thermoplastic housing, gold-plated copper pins, and stainless steel springs. Rated for up to 250 volts and 4 amps, this connector guarantees secure and reliable connections under demanding conditions. Its temperature tolerance from -55°C to +125°C, salt spray resistance, and durability of 1000 cycles make it ideal for automation systems, control panels, and electronic equipment. Purchase online today and ensure your projects’ success with top-quality connectivity solutions.
Buy Amphenol SMT connector MSAS04PFFTEE0001 now and experience unmatched reliability and performance in your industrial projects.
Frequently Asked Questions
Where can I buy AMPHENOL LTW MSAS04PFFTEE0001?
You can click on the BUY or RFQ button to purchase MSAS04PFFTEE0001 from an authorized AMPHENOL LTW distributor.
How do I troubleshoot issues or seek technical support for part MSAS04PFFTEE0001?
You can download the MSAS04PFFTEE0001 datasheet or visit the AMPHENOL LTW website for support.
Who is the manufacturer of MSAS04PFFTEE0001?
AMPHENOL LTW
