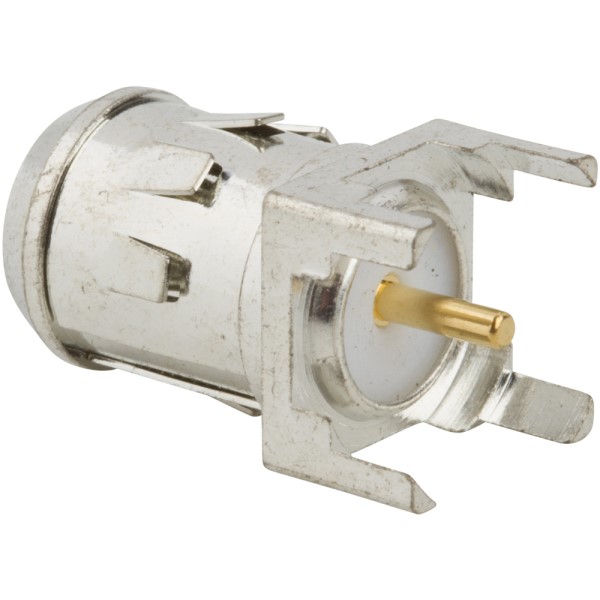

AMPHENOL RF 53140051 Type G Jack Connector
Amphenol's Type G connector is designed as a slide-on replacement for Type F connectors, boasting a 15A continuous current rating. It provides quick installation and multiple mating cycles thanks to push-on blind mate capabilities and BeCu springs. The connector's cylindrical coaxial contact ensures superior RF performance and excellent insertion/withdrawal characteristics. It is ideal for CATV applications and complies with MIL-STD-202 specifications for vibration, shock, thermal shock, moisture resistance, and salt spray. Available in various configurations including bulkhead mount and PCB mount receptacles.
AMPHENOL RF 53140051 Type G Jack Connector Specifications:
- Impedance: 75 Ω
- Frequency Range: DC - 3 GHz
- Return Loss: 30 dB @ DC - 1 GHz
- RF Leakage: 100 dB minimum @ 1 GHz
- Mating: Push-on coupling
- Durability: 100 cycles minimum
- Temperature Range: -40°C to +140°C
- Female Contact Material: Beryllium copper or phosphor bronze, matte tin plated
- Crimp Ferrule Material: Copper or brass, nickel or matte tin plated
- Insulator Material: PTFE
