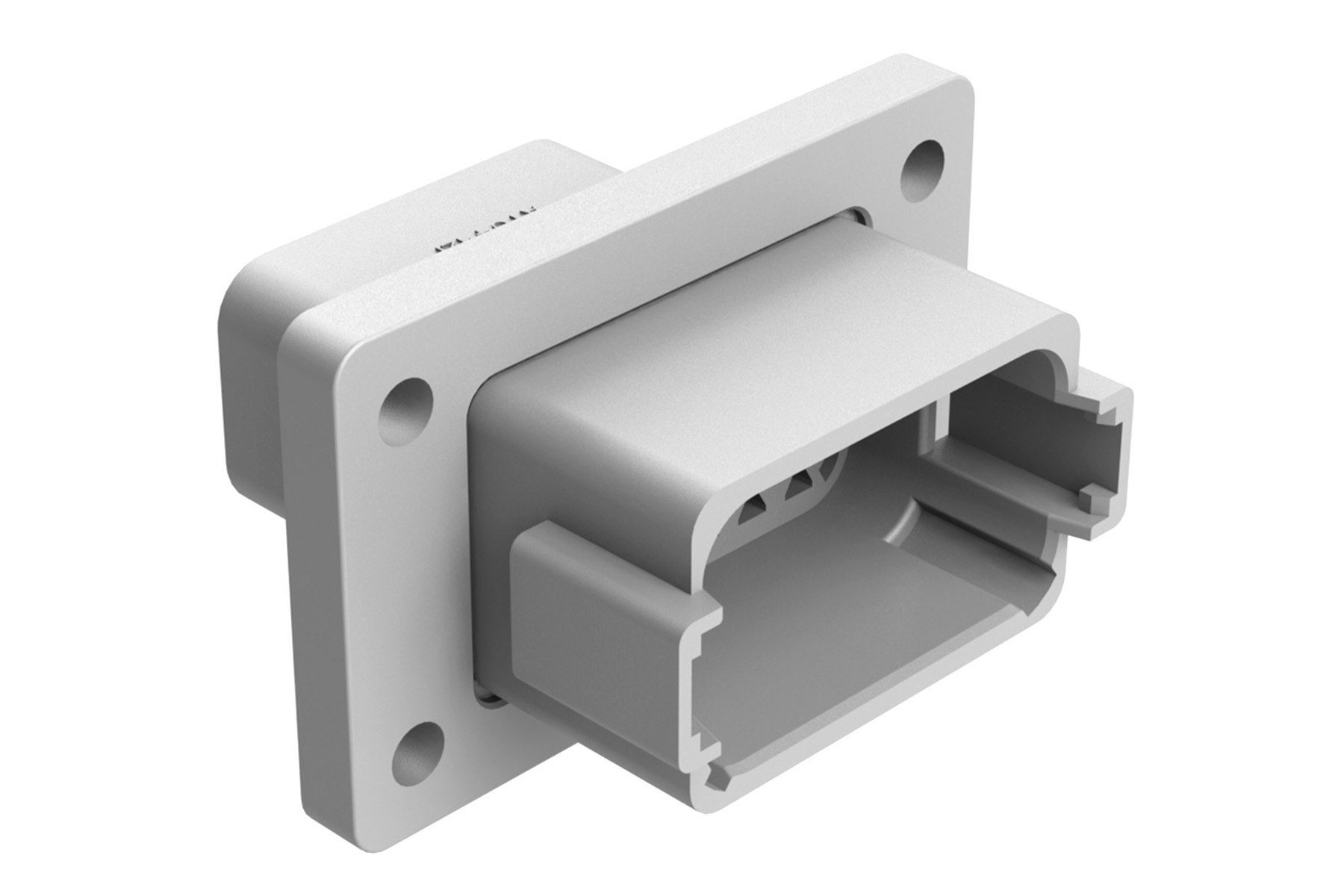

Amphenol Sine Systems AT0412PAL012 12P Receptacle, Flange Mount
The Amphenol Sine Systems AT04-12PA-L012 is a robust circular connector designed for flange mount applications in industrial settings. Constructed with a thermoplastic housing and a silicone rubber seal, this connector provides excellent environmental protection and durability. It is rated for a current of 13 amps and operates effectively within a temperature range of -55°C to +125°C. The connector's design ensures a secure and reliable connection, making it suitable for various applications including power distribution, automation, and heavy machinery. It is RoHS compliant, meeting environmental standards for restricted substances.
Amphenol Sine Systems AT0412PAL012 12P Receptacle, Flange Mount Specifications:
- current_rating: 13 Amps
- operating_temperature: -55℃ to +125℃
- dielectric_withstanding_voltage: Less than 2 milliamps current leakage @ 1500 Volts AC
- insulation_resistance: 1000 Megohms Min @ 25℃
- moisture_resistance: IP67 (mated condition)
- mating_cycle_durability: 100 cycles
- material_housing: Thermoplastic
- material_seal: Silicone Rubber
- rohs_compliant: Yes
- mating_part: AT06-12SX* (X=A,B,C,D keys, * = modifications and colors)
Buy the AT04-12PA-L012 Amphenol Sine Systems 12P Receptacle, Flange Mount | myMectronic
Purchase the Amphenol Sine Systems AT04-12PA-L012 connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Amphenol Sine Systems AT0412PAL012?
You can click on the BUY or RFQ button to purchase AT0412PAL012 from an authorized Amphenol Sine Systems distributor.
How do I troubleshoot issues or seek technical support for part AT0412PAL012?
You can download the AT0412PAL012 datasheet or visit the Amphenol Sine Systems website for support.
Who is the manufacturer of AT0412PAL012?
Amphenol Sine Systems
