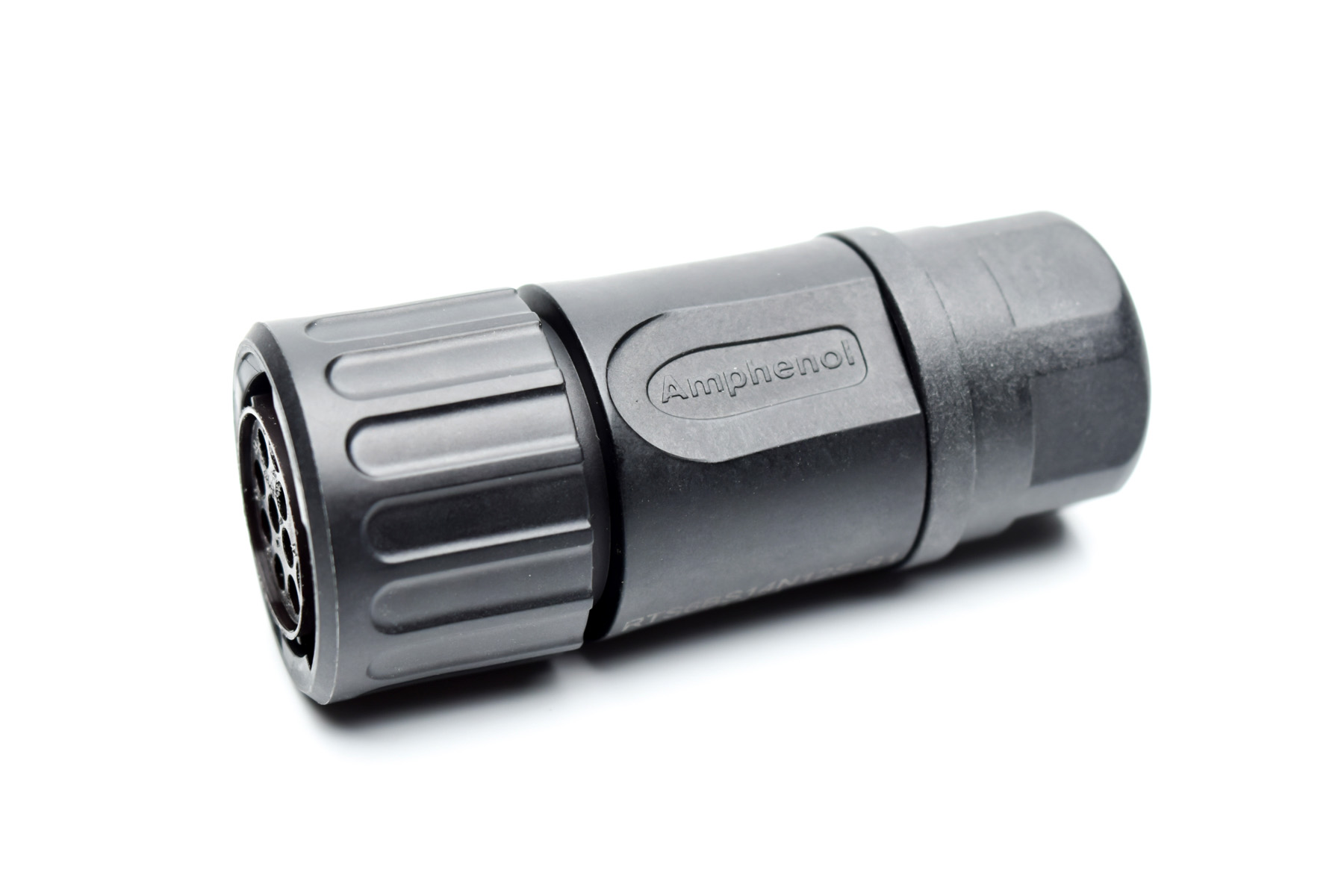

Amphenol Sine Systems RTS6BS14N12S03 12 Position Socket Connector
The Amphenol Sine Systems RTS6BS14N12S03 is a robust circular connector designed for a wide range of industrial and automotive applications. Its thermoplastic housing, silicone rubber o-rings, and gold-plated contacts ensure reliable performance in harsh environments. The connector is rated for high durability and is RoHS compliant, making it suitable for environmentally conscious designs. It is designed to provide a secure and sealed connection, protecting against moisture and contaminants. Suitable contact sizes are 16. This connector is a key component in various systems requiring reliable power and signal transmission.
Amphenol Sine Systems RTS6BS14N12S03 12 Position Socket Connector Specifications:
- Material: Thermoplastic (UL94 V-0), NBR or Silicone Rubber O-ring
- Rated Current: 13A (MAX)
- Rated Voltage: 500V (AC/DC)
- Operating Temperature: -40°C ~ +105°C
- Dielectric Withstanding Voltage: Less than 2 Milliamps Current Leakage @ 2000 Volts AC
- Insulation Resistance: 5000 Megohms Min
- IP Class: IP67 and IP69K (Mated Condition)
- Mating Cycles Durability: 500 Cycles Min
- Cable OD Range: 6.0-12.0MM
- Contact Size: 16
- RoHS Compliant: Yes
- Dimension A: 30.6 mm
- Dimension B: 25.5 mm
- Cable OD Range Key: N
- Dimension C: 12.3 mm
- Dimension D: 14.3 mm
