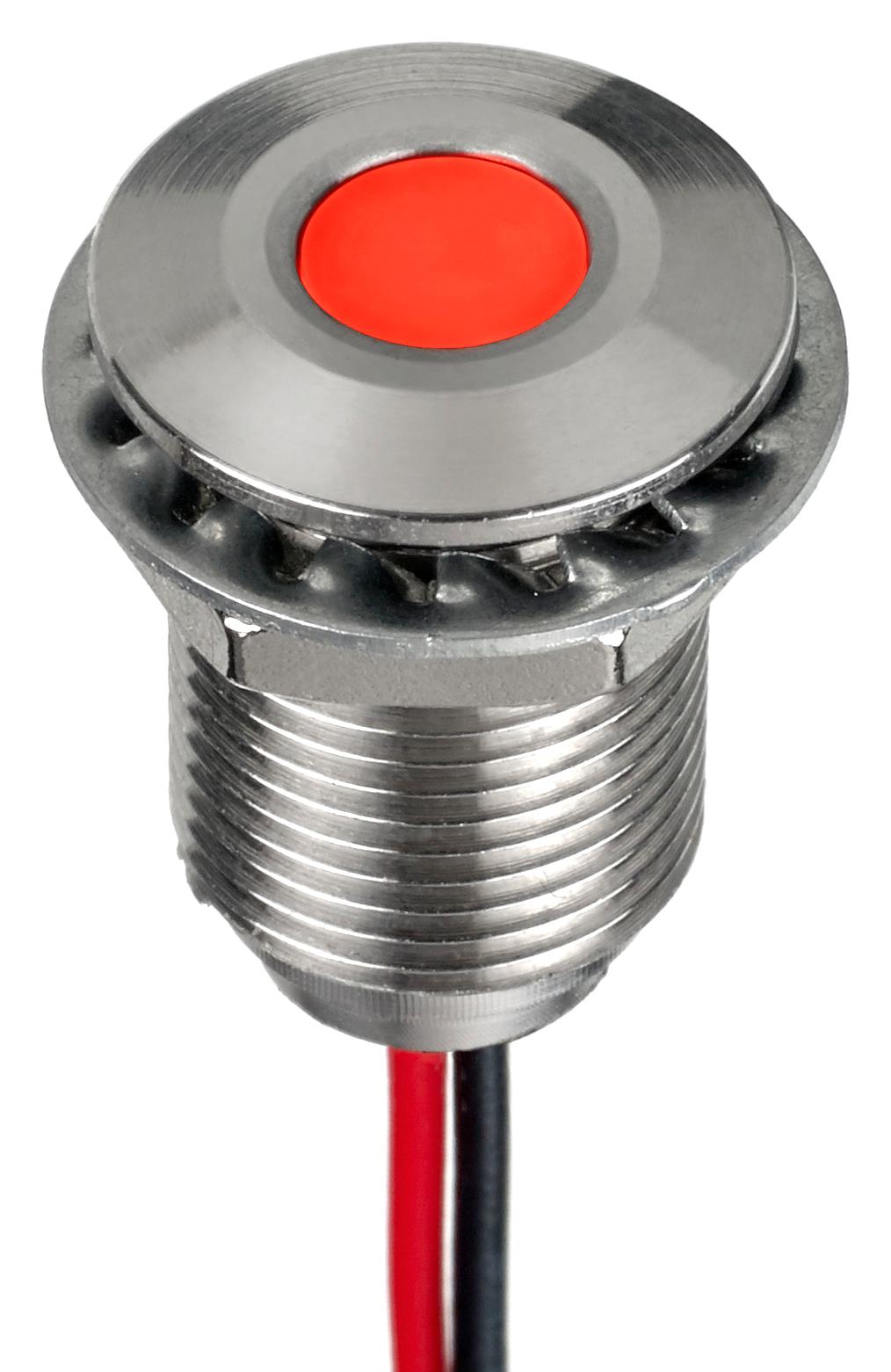

Apem Q10F5SXXHR02E panel mount LED indicator
The Q10 series are 10 mm panel mount LED indicators designed for easy installation and reliable visibility in various environments. They feature a flush chamfered bezel style, with options including diffused, hyper bright, and water clear LEDs available in multiple colors such as red, green, yellow, blue, white, and orange. These indicators offer IP67 sealing for enhanced durability, operate within temperatures of -40°C to +85°C, and have an expected lifespan of 100,000 hours. Mounting is suitable for panel thickness up to 7 mm, with wire terminations measuring 200 mm long for flexible connection. The series includes RGB, bi-color, tri-color, and monochrome variants, all built with high-quality materials like stainless steel or anodized aluminum, ensuring high performance in industrial applications.
Apem Q10F5SXXHR02E panel mount LED indicator Specifications:
- Diameter: 10 mm
- Bezel Style: Flush chamfered
- Materials: Stainless Steel 316L or Anodized Aluminum
- Sealing: IP67 option available
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Max Panel Thickness: 7 mm
- Wire Termination Length: 200 mm
- LED Types: Diffused, Hyper Bright, Water Clear
- LED Colors: Red, Green, Yellow, Blue, White, Orange, RGB
- Life Expectancy: 100,000 hours
- Viewing Angle: 60°
- Max Reverse Voltage: 5 V
- Torque: 20 to 25 cNm
- Operating Voltages: 1.8 V to 33 VDC, with resistor use advised for current control
- Environmental Resistance: Suitable for industrial environments
Buy the APEM Series Q10 LED Indicators: Q10F5SXXHR02E
Discover the durable and highly visible panel mount LED indicators from the Q10 series, designed for industrial applications requiring IP67 sealing and long-lasting performance. These 10 mm indicators come with a flush chamfered bezel, available in multiple colors including RGB, and feature high brightness options to ensure excellent visibility in various environments. Easy to install with a wire termination length of 200 mm, they are made from stainless steel or anodized aluminum, providing durability and corrosion resistance. Perfect for control panels, machinery, or safety systems, ensuring reliable operation and clear status indication.
Buy APEM Q10F5SXXHR02E now and experience unmatched reliability and performance with high brightness LED indicators for industrial control panels.
