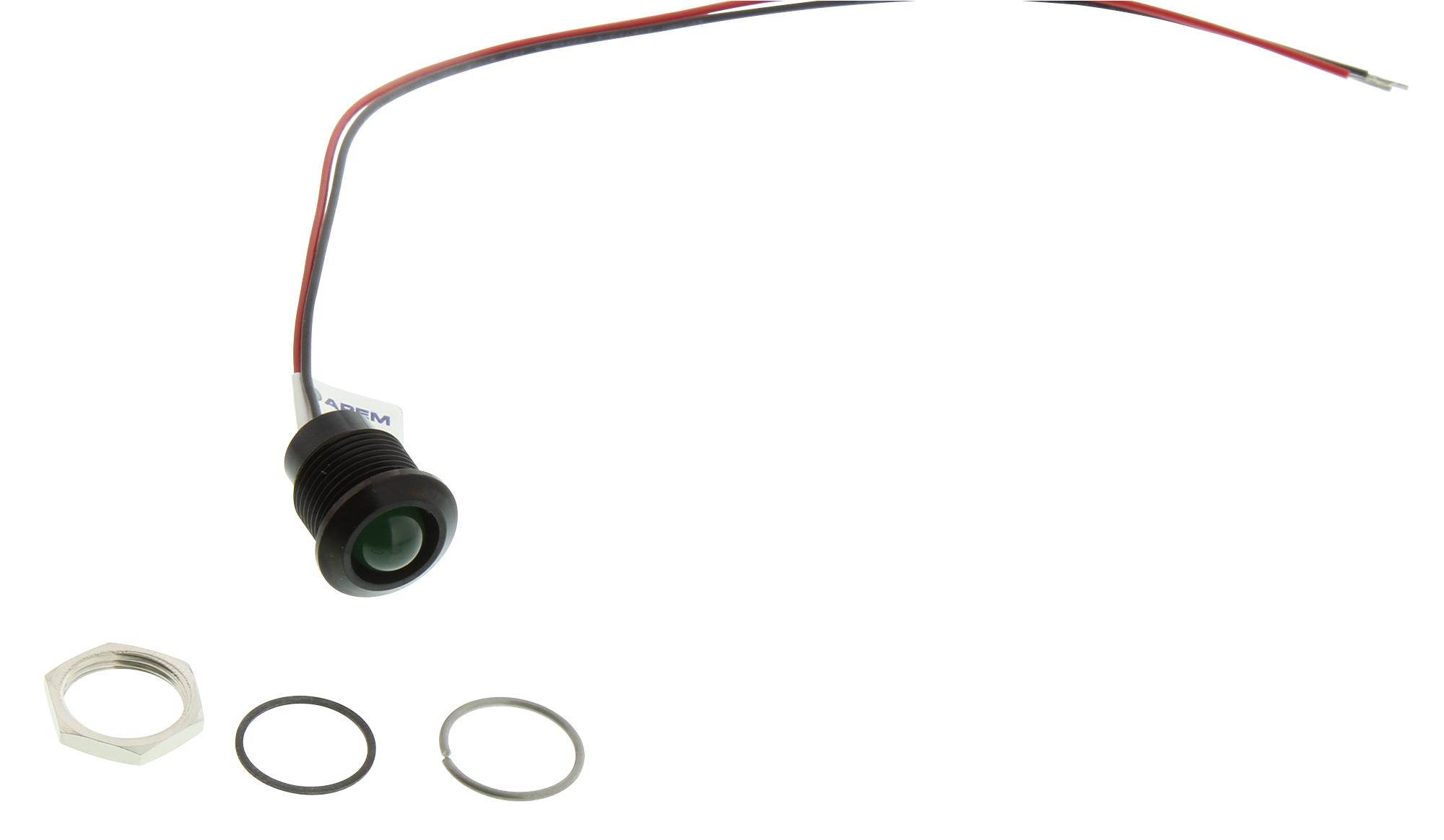

Apem Q127P5BXXHG12E Panel Mount LED Indicator
The Q12-7 series features 12.7 mm (0.5 inch) panel mount LED indicators available in prominent and recessed bezel styles, with various terminal options. These LEDs are designed for effective visual signaling with high brightness options, including super bright and hyper bright variants, suitable for a range of industrial and electronic applications. They support voltage ranges from 2VDC to 220VAC, with sealed IP67 options for harsh environments. Constructed with durable materials like plated brass bezels and molded polycarbonate bodies, they offer long life expectancy up to 100,000 hours and multiple mounting configurations for versatile installation.
Apem Q127P5BXXHG12E Panel Mount LED Indicator Specifications:
- Diameter: 12.7 mm (0.5 inches)
- Bezel Material: Plated brass with bright chrome, black, or satin grey finish
- Body Material: Moulded polycarbonate, rear epoxy option available
- Mounting Hole: 12.7 mm (0.5 inches), maximum panel thickness 7 mm
- Operating Voltage: 2VDC - 220VAC, with multiple voltage ratings for various models
- LED Brightness: Super bright and hyper bright variants available
- Viewing Angle: 30-100 degrees depending on model
- Lifespan: Approximately 100,000 hours based on environmental conditions
- Sealing Options: Unsealed or IP67 waterproof (EN60529)
- Temperature Range: -40 °C to +85°C depending on body, -30°C to +65°C rear plastic
- Connections: Solder lug, faston terminals, pins, or 200 mm wire leads
- Max Reverse Voltage: 5 V
- Symbol: Continuous illumination or flashing options, various colors including red, green, yellow, blue, white, orange, and bi-color versions
Buy the APEM Series Q12 LED Indicator: Q127P5BXXHG12E
Purchase the APEM Q12-7 series LED indicator online today for reliable visual signaling solutions. These robust indicators feature high brightness, sealed IP67 options for harsh environments, and various voltage ratings to match your system requirements. Constructed with high-quality materials like plated brass bezels and polycarbonate bodies, they ensure long-lasting performance with a lifespan of up to 100,000 hours. Easy to install via solder lug, faston terminals, pins, or wire leads, perfect for industrial, control panels, and electronic applications, available now for quick delivery.
Get APEM Q12-7 series LED indicator today—built for durability with high brightness and versatile mounting options.
Frequently Asked Questions
Where can I buy Apem Q127P5BXXHG12E?
You can click on the BUY or RFQ button to purchase Q127P5BXXHG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q127P5BXXHG12E?
You can download the Q127P5BXXHG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q127P5BXXHG12E?
Apem
