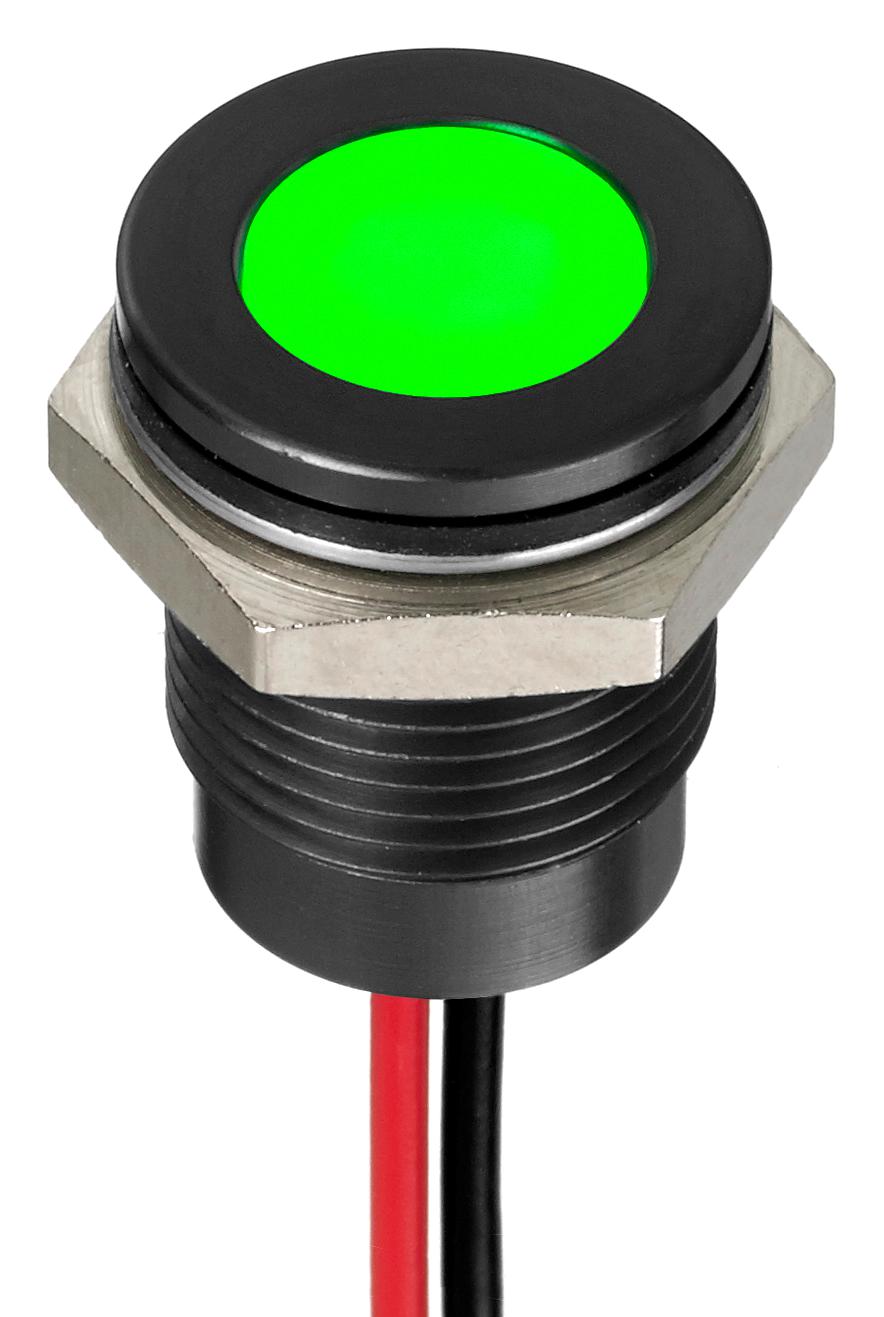

Apem Q14F5BXXHG12E LED Indicator
The Q14 series panel mount LED indicators feature 14 mm diameter, water- and dust-resistant IP67 sealing, bright LEDs in various colors such as red, green, yellow, blue, and white, with optional RGB and bi-color configurations. Designed for panel thickness up to 11 mm, these indicators have flush, recessed, and prominent bezel styles, with multiple termination options including solder lug, faston, pins, and long wires. Operating temperature ranges from -30°C to +85°C, and they offer long life expectancy with high luminous intensity. Suitable for industrial control panels requiring clear, durable, and customizable illumination signals.
Apem Q14F5BXXHG12E LED Indicator Specifications:
- Diameter: 14 mm
- Sealing: IP67
- Operating Temperature Range: -30 °C to +85 °C
- Lens: 10 mm diffused epoxy or water clear
- LED Types: Super Bright, Hyper Bright, RGB, Bi-color, Tri-color
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Panel Thickness: Max 11 mm
- Material: Plated brass bezel in chrome, black, satin grey; polycarbonate rear body
- Terminations: Solder lug, faston, pins, wire leads (200 mm)
- Bezel Styles: Prominent, recessed, flush
- Mounting: Panel mount via M14x1.0 thread
- Environmental Resistance: Optional IP67 sealing
- Dimensions: 14 mm diameter with various mounting options
Buy the Buy APEM Q14 Series LED Indicators Part Number Q14F5BXXHG12E Online
Enhance your control panels with the durable and high-visibility LED indicators from the Q14 series. Featuring IP67 sealing, multiple color options, and various mounting styles, these indicators are ideal for industrial, automation, and safety applications. They offer long life expectancy of up to 100,000 hours and are available in super, hyper, RGB, bi-color, and tri-color configurations. Designed to withstand harsh environments with operating temperatures from -30°C to +85°C, ensuring reliable performance in critical settings. Perfect for signals, status indication, and automation controls, these indicators are easily customizable and quick to install online. Buy now for long-lasting, clear, and bright indicator solutions.
Get APEM Q14 series LED indicator today—designed for durability, bright illumination, and easy installation with customizable options.
Frequently Asked Questions
Where can I buy Apem Q14F5BXXHG12E?
You can click on the BUY or RFQ button to purchase Q14F5BXXHG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F5BXXHG12E?
You can download the Q14F5BXXHG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F5BXXHG12E?
Apem
