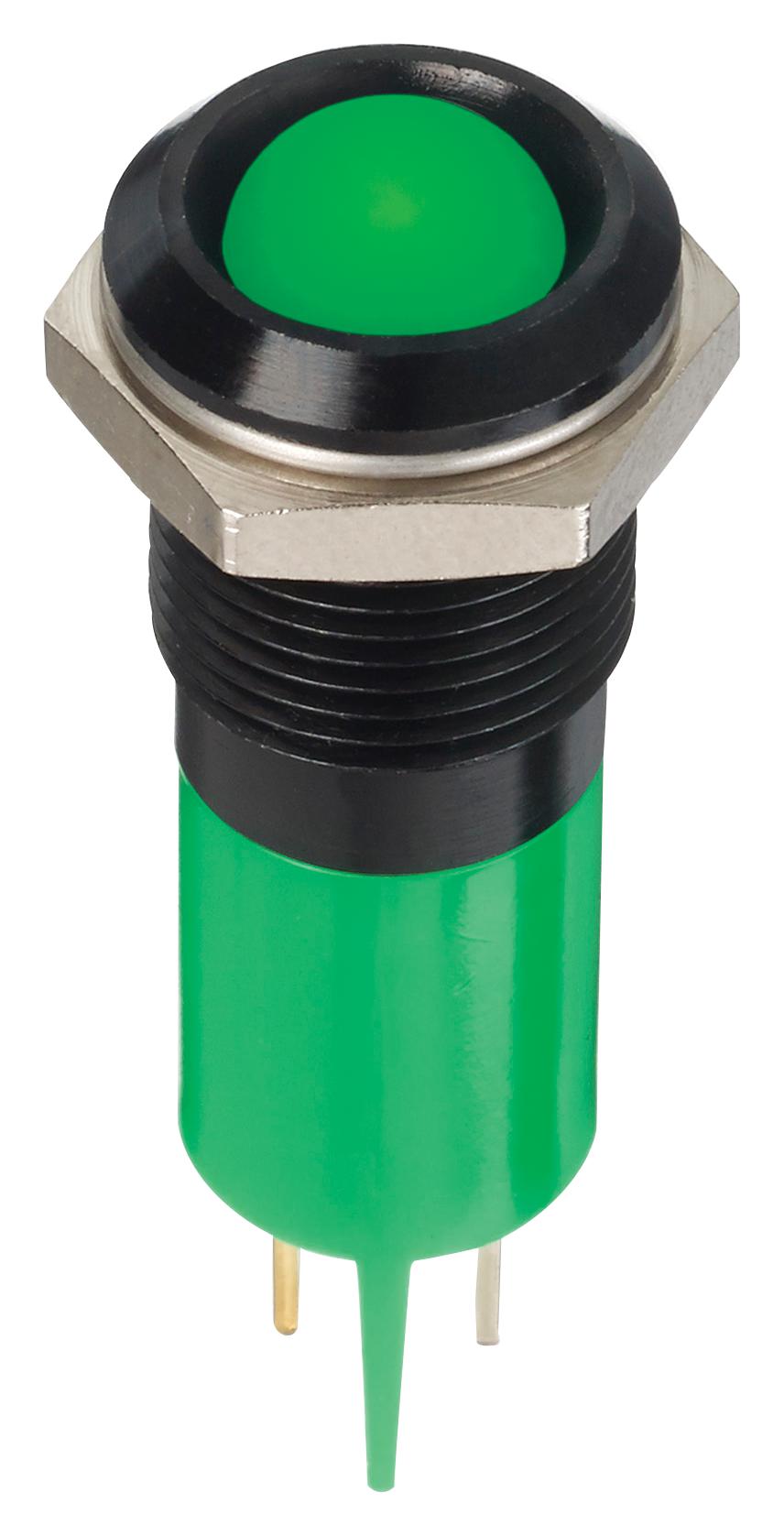

Apem Q14P1BXXG12 Panel Mount LED Indicator
The Q Series panel mount LED indicators feature a 14mm diameter with prominent bezel options such as chrome, black chrome, or satin grey. They accommodate various LED colors including red, green, yellow, blue, white, and orange, with bright or super-bright intensities for high visibility. Suitable for voltages from 2VDC up to 220VAC, these indicators offer IP67 sealing for rugged environments. They include solder lug, faston terminals, wire terminations, and customizable engravings. Designed for reliable operation, they have a life expectancy of 100,000 hours and operate at temperatures from -40°C to +85°C, making them ideal for industrial indicator applications.
Apem Q14P1BXXG12 Panel Mount LED Indicator Specifications:
- Diameter: 14mm
- Bezel options: Chrome, Black Chrome, Satin Grey
- LED colors: Red, Green, Yellow, Blue, White, Orange
- Brightness: Bright or Super Bright
- Operating Voltage: 2VDC to 220VAC
- IP67 sealing for rugged environments
- Threads: Solder lug, Faston terminals, wire terminations
- Life Expectancy: 100,000 hours
- Operating Temperature Range: -40°C to +85°C
- Viewing Angle: 30-100° depend on model
- Reverse Voltage Max: 5V
- Current: 20mA (typical)
- Operating Current: varies by voltage, e.g., 20mA at 12VDC
- Physical Dimensions: 14mm diameter, suitable for panel cutout
- Material: Polycarbonate body with plated brass bezel
- Sealing option: IP67
- Custom engraving available for labels or symbols
- Terminals: Solder lug or faston, with wire options
- Max panel thickness: 11mm
Buy the Buy APEM Panel Mount LED Indicator Part Number Q14P1BXXG12 Online
Purchase the APEM Panel Mount LED Indicator online today for highly reliable illumination in industrial control and indicator applications. Featuring a 14mm diameter, various LED colors, bright or super-bright intensities, and IP67 sealing, it ensures visibility and durability. Suitable for voltages from 2VDC to 220VAC, with multiple terminal options including solder lug, faston, and wire terminations. The indicator is designed for easy installation with a standard panel cutout, operating reliably from -40°C to +85°C, and offering a lifespan of 100,000 hours. Custom engravings enhance the functionality for specific use cases.
Get APEM Q14P1BXXG12 today—built for high visibility, rugged durability, and customizable options for control panels.
Frequently Asked Questions
Where can I buy Apem Q14P1BXXG12?
You can click on the BUY or RFQ button to purchase Q14P1BXXG12 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14P1BXXG12?
You can download the Q14P1BXXG12 datasheet or visit the Apem website for support.
Who is the manufacturer of Q14P1BXXG12?
Apem
