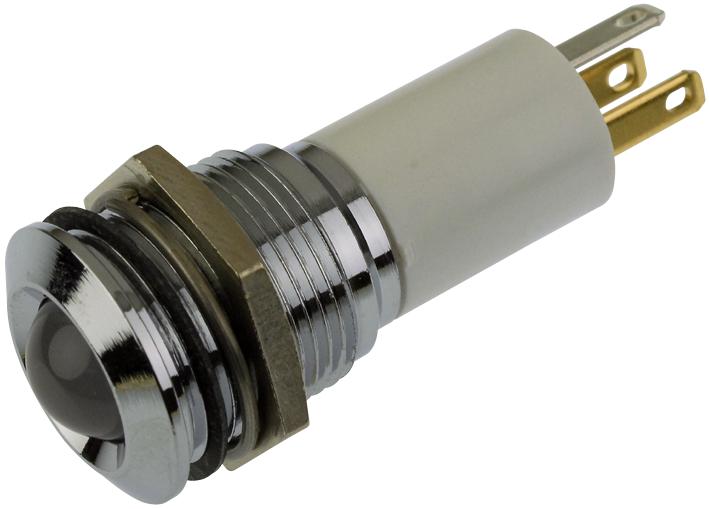

Apem Q16P1CZZRYG24E Tri-Color Indicator Light
This 16mm diameter prominent tri-color indicator light features red, green, and yellow LEDs, providing high visibility and versatile signaling. It is IP67 rated for excellent sealing against dust and water ingress, making it ideal for harsh industrial environments. The indicator has a bright chrome finish for durability and aesthetic appeal. Suitable for 24V electrical systems, it offers multiple mounting and termination options including solder lug, fastons, pins, or wires. Designed to withstand operating temperatures from -40°C to +85°C, with a lifespan of 100,000 hours, ensuring reliable long-term operation.
Apem Q16P1CZZRYG24E Tri-Color Indicator Light Specifications:
- Diameter: 16mm
- Color options: Red, Green, Yellow
- LED Type: Diffused epoxy lens, super bright LEDs
- Sealing: IP67
- Finish: Bright chrome
- Material: Plastic bezel with bezel options in satin grey, gold, black ABS or bright chrome
- Operating Voltage: 24VDC (21.6 to 26.4VDC)
- Operating Current: 20mA
- Forward Voltage: 2.1V (Yellow), 2.2V (Green), 2.0V (Red)
- Intensity: Yellow 2,500mcd, Green 4,100mcd, Red 7,500mcd
- Viewing Angle: 100°
- Life Expectancy: 100,000 hours
- Operating Temperature: -40°C to +85°C
- Max Reverse Voltage: 5V
- Terminations: Solder lug, fastons, pins, or wires
- Max Panel Thickness: 11mm
- Certifications: UL Recognised Component
Buy the APEM Q16P1CZZRYG24E – Reliable Tri-Color Indicator for Industrial Applications
Purchase the APEM Tri-Color Indicator Light online today to ensure reliable visual signaling in your industrial applications. This 16mm LED indicator features red, green, and yellow LEDs with high brightness and IP67 waterproof sealing. Its robust construction with a bright chrome finish makes it suitable for demanding environments. Easy to install with multiple termination options, it is designed for 24V systems, offering long-lasting performance of up to 100,000 hours. Ideal for control panels, machinery, and safety indicators, order now for fast delivery and quality assurance.
Order your APEM Series Q16P1CZZRYG24E today and enhance your industrial signaling system with this durable, IP67-rated indicator light.
Frequently Asked Questions
Where can I buy Apem Q16P1CZZRYG24E?
You can click on the BUY or RFQ button to purchase Q16P1CZZRYG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q16P1CZZRYG24E?
You can download the Q16P1CZZRYG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q16P1CZZRYG24E?
Apem
