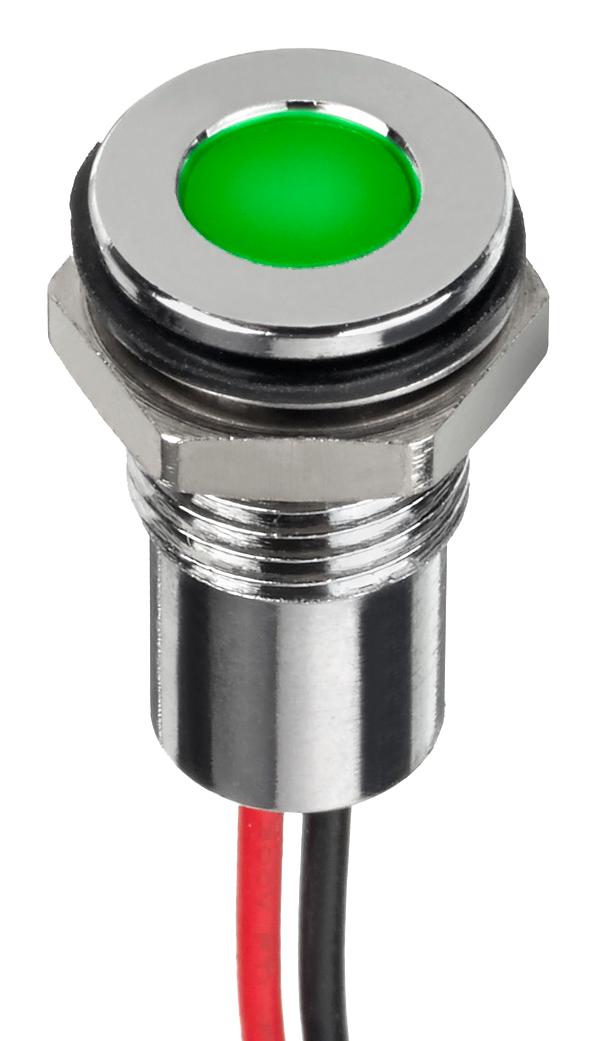

Apem Q8F5CZZRYG02E Panel Mount LED Indicator
The Q8 series panel mount LED indicators feature 8 mm size with various lens colors including red, green, yellow, blue, and white. They offer high brightness options such as super bright and hyper bright LEDs, with viewing angles up to 100°. The indicators are available with different bezel styles like prominent, recessed, flush, and extended short bodies, finished in bright chrome, black, satin grey, or stainless steel. They are sealed to IP67 standards, operate within -40°C to +85°C, and support multiple termination options including solder lug, faston, pins, and wires. Ideal for industrial, control, and automation applications, these LEDs provide long life expectancy, varied voltage ratings from 2 VDC to 220 VAC, and are suitable for panel thickness up to 7 mm.
Apem Q8F5CZZRYG02E Panel Mount LED Indicator Specifications:
- Size: 8 mm diameter
- Lens Colors: Red, Green, Yellow, Blue, White
- Brightness: Super Bright, Hyper Bright LED options
- Viewing Angle: 30-100° (dependent on model)
- Operating Temperature Range: -40°C to +85°C
- Sealing: IP67 sealing option available
- Max Panel Thickness: 7 mm
- Terminals: Solder lug, faston, pins, wires
- Materials: Plated brass bezel, stainless steel (flush bezel), polycarbonate rear body
- Life Expectancy: 100,000 hours
- Electrical Ratings: 2 VDC to 220 VAC, various current ratings up to 20 mA
- Bezel Finishes: Bright chrome, black, satin grey, stainless steel
- Mounting: Panel mount with various terminal options
- Application: Industrial equipment, control panels, automation systems
Buy the APEM Series Q8 Panel Mount LED Indicator: Q8F5CZZRYG02E
Enhance your control panels with the Q8 series LED indicators, offering high brightness, IP67 sealing, and multiple terminal options. Designed for durability in harsh environments, these indicators provide long-lasting performance with a wide voltage range from 2 VDC to 220 VAC. Their versatile bezel styles and lens colors make them suitable for various industrial applications. Quick and easy to install, they are ideal for automation, control systems, and machinery, ensuring clear visual signals and reliable operation in demanding settings. Order online today for fast delivery and superior quality.
Buy Q8 series LED indicators now and experience unmatched brightness, durability, and versatile mounting options for industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q8F5CZZRYG02E?
You can click on the BUY or RFQ button to purchase Q8F5CZZRYG02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8F5CZZRYG02E?
You can download the Q8F5CZZRYG02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8F5CZZRYG02E?
Apem
