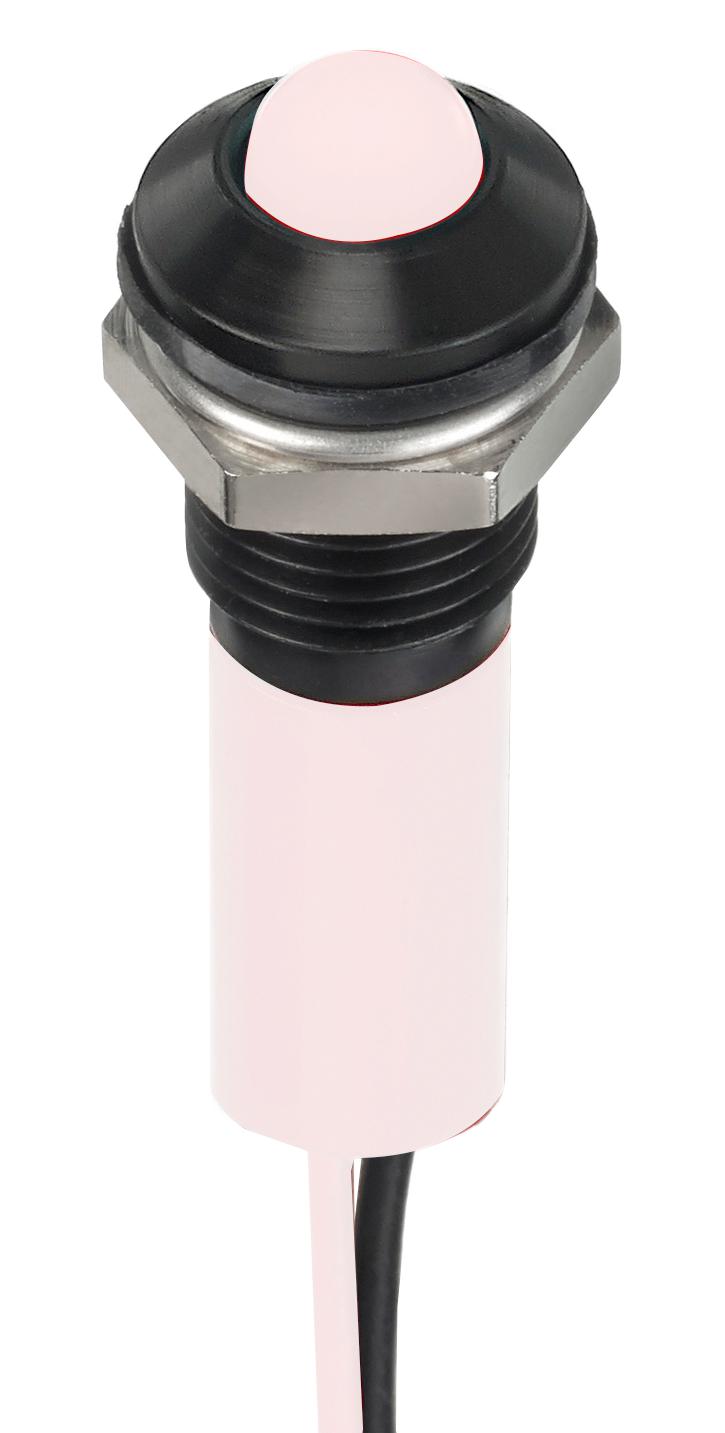

Apem Q8P3BXXW12E Panel Mount LED Indicators
The Q8 series panel mount LED indicators feature DS designed with a 8 mm diameter, IP67 sealing option, and a choice of prominent, recessed, or flush bezels. They are equipped with super bright LEDs in various colors including red, green, yellow, blue, white, and orange, offering high visibility and long lifespan up to 100,000 hours. The indicators support multiple mounting options with solder lug, faston terminals, pins, or long wire terminations, suitable for diverse industrial and control panel applications. Operating voltage ranges from 1.8 V to 110 VAC/DC, with high resistance to environmental conditions and robust materials including plated brass, stainless steel, and polycarbonate bodies.
Apem Q8P3BXXW12E Panel Mount LED Indicators Specifications:
- Diameter: 8 mm
- Sealing: IP67 (optional)
- LED Colors: Red, Green, Yellow, Blue, White, Orange, Tricolor, Bi-color, Hyper Bright, Super Bright
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Operating Voltage: 1.8 V to 110 VAC/DC
- Forward Voltage: Red 2V, Green 3V, Yellow 2.2V, Blue 3V, White 3V, Orange 2V
- Operating Current: Up to 20 mA
- Terminal Types: Solder lug, fastons, pins, wire terminations (200 mm)
- Material: Plated brass bezel, stainless steel bezel, polycarbonate rear body
- Maximum Panel Thickness: 7 mm
- Temperature Range: -30°C to +85°C depending on body type
- Torque: 20-25 cNm
Buy the ApeM Series 8 mm Panel Mount LED Indicators: Q8P3BXXW12E
Enhance your control panels with our 8 mm panel mount LED indicators, featuring high brightness LEDs, multiple bezel options, and versatile wiring configurations. Designed for durability, they support IP67 sealing and operate across a wide voltage range, ensuring reliable performance in harsh environments. Easy to install with solder lug, faston terminals, or wire connections, and made from high-quality materials like plated brass and polycarbonate. Achieve optimal visibility and long service life with our robust LED indicators suited for industrial, automation, and control systems.
Buy ApeM Series 8 mm Panel Mount LED Indicators Q8P3BXXW12E now and experience unmatched reliability and performance in industrial control applications.
Frequently Asked Questions
Where can I buy Apem Q8P3BXXW12E?
You can click on the BUY or RFQ button to purchase Q8P3BXXW12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q8P3BXXW12E?
You can download the Q8P3BXXW12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q8P3BXXW12E?
Apem
