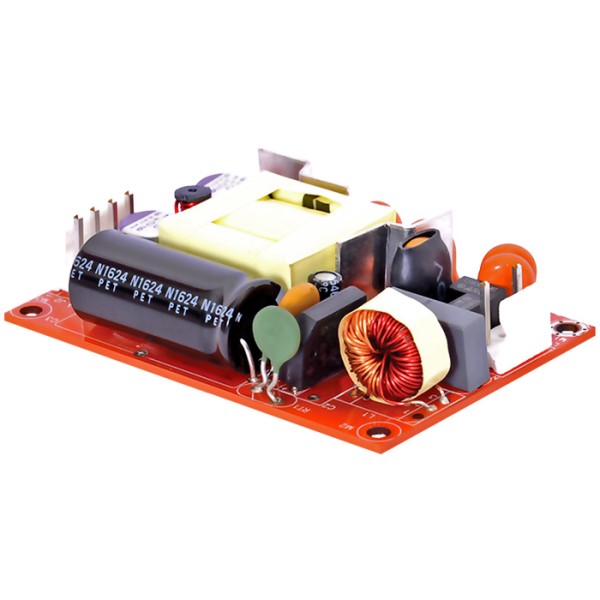

BEL POWER SOLUTIONS MBC411015P Medical Power Supply
The BEL POWER SOLUTIONS MBC41 series is a range of ultra-low open frame medical power supplies designed for a variety of applications including medical, telecom, datacom, and industrial equipment. These power supplies offer a wide universal AC input range (85-264 VAC) and deliver 40W of output power with natural convection cooling. They are available in isolated single output voltages and feature a PCB mount option for simplified integration. The MBC41 series is designed and approved to the latest medical standards (EN/IEC 60601-1), providing 2 x MOPP isolation for Class I & Class II applications.
BEL POWER SOLUTIONS MBC411015P Medical Power Supply Specifications:
- Input Voltage: 85 - 264 VAC / 390 VDC
- Input Frequency: 47 - 63 Hz
- Input Current (115 VAC): 0.8 A max.
- Input Current (230 VAC): 0.4 A max.
- No Load Power: < 0.3 W
- Inrush Current (115 VAC): 25 A
- Inrush Current (230 VAC): 45 A
- Leakage Current: < 300 µA
- Switching Frequency: 65 kHz
- Output Power: 40 W
- Efficiency: 85% Typical
- Hold-up Time (230 VAC): 6 ms
- Line Regulation: ± 0.5%
- Load Regulation: ± 1%
- Transient Response: < 5 ms
- Rise Time: 50 ms
- Set Point Tolerance: ± 2% (± 3% for 5 V model)
- Over Current Protection: > 110%
- Over Voltage Protection: 110 to 140%
- Short Circuit Protection: Hiccup mode
- Cooling: Convection
- Operating Temperature: -40 to 70 °C
- Storage Temperature: -40 to +85°C
- Altitude (Operating): 16,000 ft
- Altitude (Non-operating): 40,000 ft
- MTBF: 2 million hours
