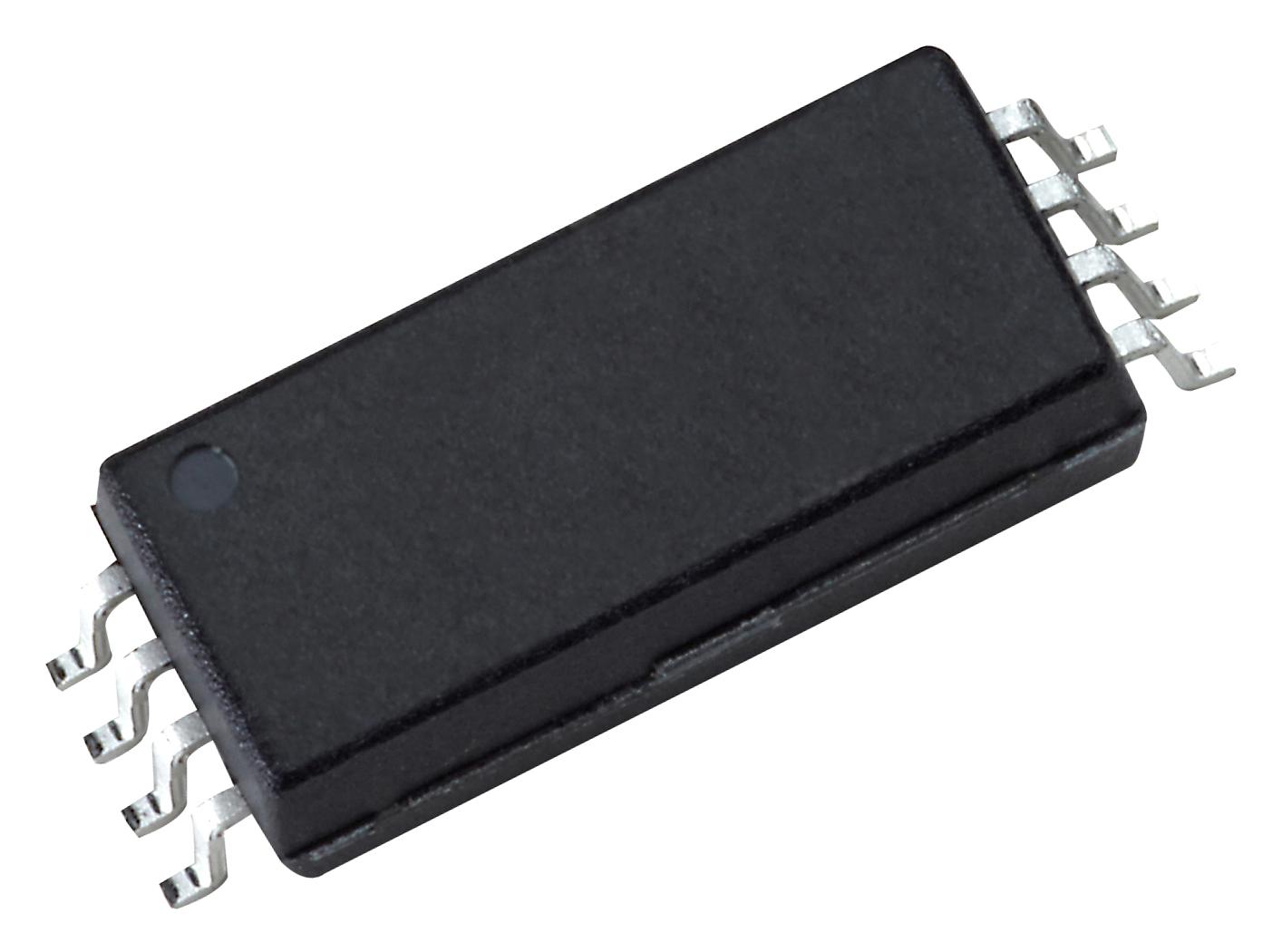

BROADCOM ACPLK75T560E Digital Signal Isolator
The ACPL-K75T560E is a high-speed digital CMOS optocoupler designed for automotive and industrial applications, offering reliable signal isolation with reinforced insulation and AEC-Q100 Grade 1 qualification. It features dual channels in a Stretched SO-8 package, compatible with surface mount processes. Key features include a propagation delay of approximately 60 ns at 4 mA, low LED drive current, high common-mode rejection of 40 kV/μs, and safety approvals like UL1577, CSA, and IEC/EN standards. Suitable for CAN bus, SPI communication, power transistor isolation, and digital/analog signal isolation in high-temperature environments.
BROADCOM ACPLK75T560E Digital Signal Isolator Specifications:
- Package: Stretched SO-8 surface mount
- Propagation delay: approximately 60 ns at 4 mA
- Input Current: 4 to 15 mA
- Input Reverse Voltage: 5 V maximum
- Output Voltage: up to 65 V
- Isolation Voltage: 5000 Vms (UL approval)
- Operating Temperature: -40°C to 125°C
- Lead Solder Temperature: 260°C for 10s
- Output Power Dissipation: 30 mW
- Input Capacitance: 90 pF
- Common-Mode Rejection: 40 kV/μs
- Safety Certifications: UL1577, CSA, IEC/EN/DIN EN 60747-5-5
Buy the Broadcom ACPL-K75T560E – Reliable Digital Isolator for Industrial Applications
Purchase the Broadcom ACPL-K75T560E online now to upgrade your automotive and industrial systems with high-speed, reliable digital isolation. This optocoupler offers reinforced insulation, low drive current of just 4 mA, and excellent safety approvals including UL1577 and IEC standards. Its dual-channel design in a surface-mount SO-8 package makes it ideal for CAN bus, SPI interfaces, and power transistor isolation in high-temperature environments up to 125°C. Get dependable signal integrity and security for your critical applications by buying it online today.
Order your Broadcom ACPL-K75T560E today and ensure robust, high-speed signal isolation for your automotive and industrial projects.
Frequently Asked Questions
Where can I buy BROADCOM ACPLK75T560E?
You can click on the BUY or RFQ button to purchase ACPLK75T560E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ACPLK75T560E?
You can download the ACPLK75T560E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ACPLK75T560E?
BROADCOM
