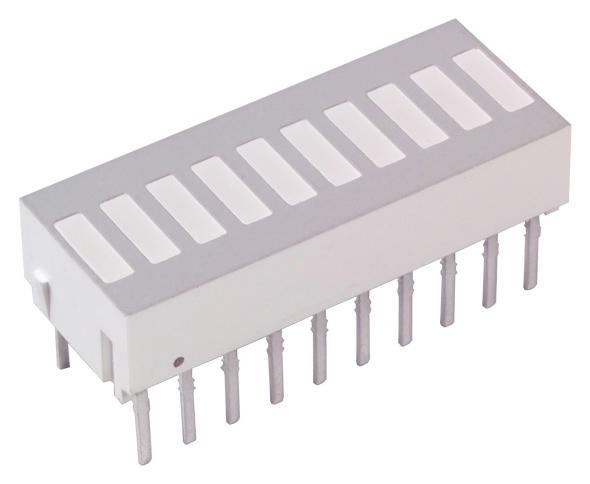

BROADCOM HDSP4830 LED Bar Graph
The HDSP-4830 is a high-efficiency red 10-element bar graph LED array designed to visually display information through easily recognizable bars. It features matched LEDs for uniform appearance, rugged construction, wide viewing angles, and high contrast between ON and OFF states for each segment. The array is end stackable, making it suitable for various applications. Its large segments provide clear visibility, and the LEDs are categorized by luminous intensity, ensuring consistent brightness across the display. Applications include consumer electronics, sensing and instrumentation, and computer peripherals. Due to high market demand, lead times for this product may be extended, and delivery dates may vary. The product is not eligible for discounts.
BROADCOM HDSP4830 LED Bar Graph Specifications:
- Package Dimensions: > + 25.40 (1.000) MAX, 10.16 mm (0.400) spacing.
- LED Elements: 10, Single color (Red).
- LED Type: AlGaAs Red (HLCP-J100).
- Luminous Intensity: 600 to 3500 cd depending on category and current.
- Peak Wavelength: 635 nm, Dominant Wavelength: 626 nm.
- Forward Voltage: 1.8V at 20mA, typical.
- Reverse Voltage: 3V for Yellow, 5V for Red.
- Maximum Power Dissipation per LED: 87 mW (Red).
- Operating Temperature Range: -20°C to +100°C.
- Storage Temperature Range: -55°C to +100°C.
- Peak Forward Current: Up to 90 mA.
- DC Forward Current: 15 to 30 mA per LED.
- Viewing Angle: Wide, with high contrast and luminance categories.
- Package Type: End stackable with interlock for correct alignment.
- Luminous efficiency: normalized to peak current values, calculated for various drive conditions.
- Electrical ratings vary by LED color and category, suitable for strobed operation.
Buy the Avago Technologies HDSP4830 - Reliable Red LED Bar Graph Array for Industrial Applications
Enhance your projects with the high-efficiency red LED bar graph array from Avago Technologies. Featuring 10 uniform segments with wide viewing angles and rugged construction, it's ideal for industrial controls, instrumentation, and consumer electronics. Designed for easy stacking and alignment, this array offers reliable performance with categories based on luminous intensity, ensuring clear, consistent visibility. Perfect for displays requiring bright, easily recognizable bars. Purchase online today to ensure quick delivery and reliable operation for your engineering and automation needs.
Get Avago Technologies HDSP4830 today—built for precision and long-lasting durability in industrial and instrumentation displays.
Frequently Asked Questions
Where can I buy BROADCOM HDSP4830?
You can click on the BUY or RFQ button to purchase HDSP4830 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HDSP4830?
You can download the HDSP4830 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HDSP4830?
BROADCOM
