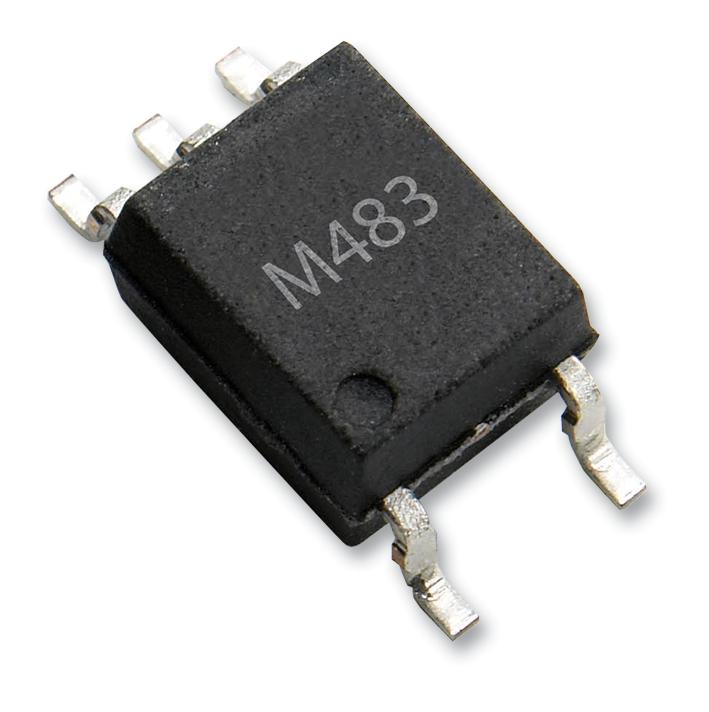

BROADCOM ACPLM483000E High-Speed Optocoupler
The ACPL-M483 series is a high-speed optocoupler featuring an inverted logic high to low CMR interface, ideal for isolated IGBT/MOSFET gate drive, inverter systems, and industrial motor drives. It contains an AlGaAs LED and a photo detector with built-in Schmitt trigger, eliminating the need for additional wave shaping. Its totem pole output allows direct drive of intelligent power modules, with guaranteed performance over industrial temperature ranges. UL and IEC safety approvals, short propagation delay, and high common mode rejection make this optocoupler suitable for robust digital isolation tasks.
BROADCOM ACPLM483000E High-Speed Optocoupler Specifications:
- Packaging: SO-5 and Stretched SO-6 options
- Input Voltage Range: 4.5V to 30V
- Propagation Delay Time: 120 ns maximum
- Pulse Width Distortion: 50 ns max
- Temperature Range: -40°C to 105°C
- Maximum Insulation Voltage: 567 Vpeak (ACPL-M483)
- UL Recognition: 3750-5000 Vms for various models
- Isolation Resistance: >10^12 Ohm at 500 Vac
- Output Voltage: Logic High V_{OL}: 0.04 V, Logic Low V_{OL}: 0.3 V
- Output Current: 50 mA maximum
- Power Dissipation: 145 mW (ACPL-M483), 210 mW (ACPL-W483)
- Thermal Resistance: Junction to Ambient approx. 77-99 K/W depending on the package
- Peak Transient Voltage: 6000-8000 Vpeak during transients
- Gate Drive Compatibility: Direct interface with IGBTs/MOSFETs
- Safety Standards: IEC/EN 60747-5-5, UL 1577, CSA
Buy the Avago Series ACPL-M483 High-Speed Optocoupler: ACPL-M483000E
Order the Avago ACPL-M483 high-speed optocoupler online today to ensure reliable digital isolation in industrial applications. This device offers fast propagation delays of up to 120 ns, high common mode rejection of 30 kV/us, and robust insulation ratings, making it ideal for inverter systems, motor drives, and gate driver interfaces. With UL recognition up to 5000 Vms and IEC standards compliance, purchasing online provides quick delivery and technical support, enabling seamless integration into your power and control systems.
Buy Avago ACPL-M483000E now and experience unmatched reliability and performance, perfect for industrial isolation and power control applications.
Frequently Asked Questions
Where can I buy BROADCOM ACPLM483000E?
You can click on the BUY or RFQ button to purchase ACPLM483000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ACPLM483000E?
You can download the ACPLM483000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ACPLM483000E?
BROADCOM
