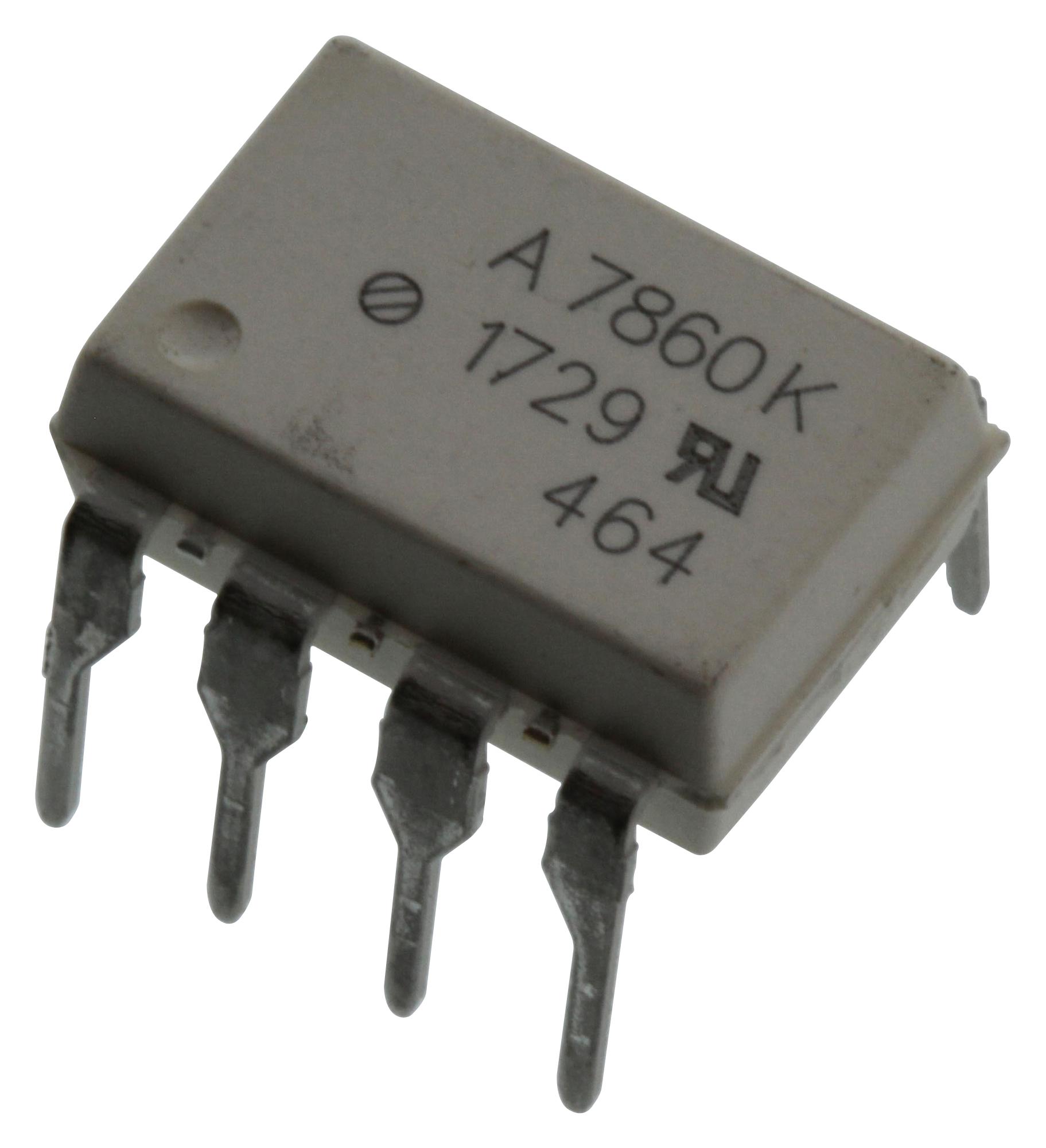

BROADCOM HCPL7860000E Optical Isolator
The HCPL-7860 is an isolated modulator that converts a low-bandwidth analog signal into a high-speed, one-bit data stream using a sigma-delta oversampling modulator. This provides high noise margins and strong immunity to transient conditions during isolation. The data and sampling clock are encoded and transmitted across the isolation barrier, then recovered and decoded into separate high-speed clock and data channels. When used with the HCPL-0872 digital interface IC or digital filter, it forms a complete isolated analog-to-digital conversion system. This device is suitable for directly measuring motor phase currents in power inverters. Key features include 12-bit linearity, a 200 ns conversion time, approximately 12-bit effective resolution, a ±200 mV input range with a 5V supply, and 15 kV/µs isolation transient immunity. It is CSA and IEC/EN/DIN EN 60747-5-2 approved and UL recognized. Please note that due to high market demand, lead times may be extended, and delivery dates are subject to fluctuation. This product is exempt from discounts.
BROADCOM HCPL7860000E Optical Isolator Specifications:
- Linearity: 12-bit
- Conversion Time: 200 ns
- Effective Resolution: approximately 12-bit (via HCPL-0872)
- Input Range: ±200 mV with 5 V supply
- Isolation Transient Immunity: 15 kV/µs
- Input Supply Voltage: 4.5V to 5.5V
- Operating Temperature Range: -40°C to +85°C
- Insulation Voltage: 15 kV/µs transient immunity, UL Recognized, IEC/EN/DIN EN 60747-5-2
- Safety Certification: UL 1577, CSA, IEC/EN 60747-5-5
- Package: Options include DIP or surface-mount packages, RoHS compliant available
