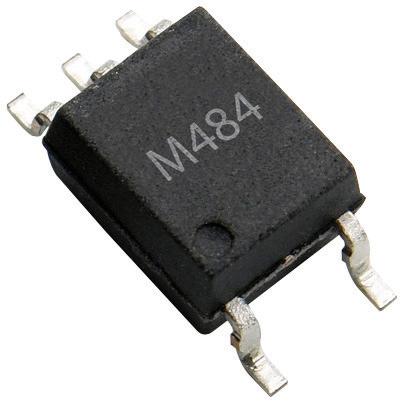

BROADCOM ACPLM484000E High-Speed Power Optocoupler
The ACPL-M484-000E is a high-performance, positive logic high CMR (Common Mode Range) optocoupler designed for intelligent power module applications. It features an AlGaAs LED and a photodetector with a built-in Schmitt trigger, providing clean, logic-compatible waveforms without additional waveform shaping circuitry. The device has a totem pole output that eliminates the need for a pull-up resistor, enabling direct drive of power modules or gate drivers. Its minimized propagation delay and pulse width distortion make it ideal for improving inverter efficiency by reducing switching dead time. Suitable for power management, motor drive and control, and consumer electronics, this optocoupler offers reliable performance in demanding electronic systems.
BROADCOM ACPLM484000E High-Speed Power Optocoupler Specifications:
- Maximum Junction Temperature: 125°C
- Package: SO-5, Stretched SO-6 options available
- Isolation Voltage: 3750 Vms (ACPL-M484 & ACPL-P484), 5000 Vms (ACPL-W484)
- Input LED Current: 4-7 mA (typical ON), Reverse Voltage: 5 V
- Output Voltage: -0.5 to 35 V, Max Output Current: 50 mA
- Propagation Delay Time: 120-150 ns, Max Pulse Width Distortion: 90 ns
- Response Guarantee: Vcc from 4.5 V to 30 V, High Common Mode Rejection: ≥30 kV/μs at 1000 V
- Operating Temperature Range: -40°C to 105°C
- Insulation Resistance: >10^9 Ω at 500 V, Safety Certifications: UL, CSA, IEC/EN 60747-5-5
- Solder Reflow Profile: As per JEDEC standards, RoHS compliant
- Maximum Power Dissipation: 145-210 mW depending on package
- Creepage and Clearance: ≥8 mm (ACPL-W484), Meets safety standards for industrial use
Buy the Avago Series ACPL-M484 High-Speed Optocoupler: ACPLM484000E
Purchase the Avago Series ACPL-M484 high-performance optocoupler online today to elevate your power management and motor drive systems. Its excellent common mode rejection, low propagation delay, and robust safety certifications make it ideal for inverter and industrial applications. With a proven track record for high reliability and fast response times, this optocoupler ensures your electronic systems operate safely and efficiently. Get yours now and enjoy seamless integration into your power modules and digital isolation solutions, backed by manufacturer certification.
Order your Avago Series ACPL-M484 high-speed optocoupler today and ensure reliable, efficient isolation for your power electronics and motor control projects.
