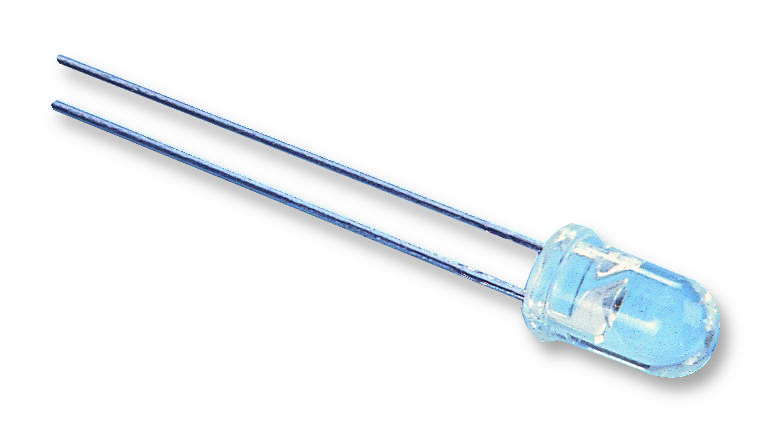

BROADCOM HLMPC223 LED Lamp
These high-intensity, non-diffused LED lamps offer bright illumination with a smooth radiation pattern, ideal for backlighting, indicator lights, and signage. Designed with a 20 mil lead frame, enhanced flange, and tight meniscus controls, they ensure uniform brightness and reliable performance. Suitable for indoor and outdoor applications, these LEDs come in various colors including red, yellow, orange, green, and emerald. They feature high efficiency and consistent viewability, with tape and reel packaging options supporting automated manufacturing and installation processes.
BROADCOM HLMPC223 LED Lamp Specifications:
- Color: Red, Yellow, Orange, Green, Emerald Green
- Package: T-1 3/4 (5 mm)
- Dimensions: Length 5.00 ± 0.20 mm, Width 8.71 mm, Height 1.85 mm
- Lead Diameter: 0.70 mm
- Forward Voltage: Typ. 2.2 V, Max. 3.0 V
- Forward Current: 20-30 mA
- Reverse Voltage: 5 V
- Luminous Intensity: Min. 290 mcd (for HLMP-C223)
- Peak Wavelength: 626 nm (Red)
- Viewing Angle: 23°
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Maximum Peak Soldering Temperature: 250°C for 3 seconds
- RoHS compliant
Buy the Avago HLMP-C223 – Reliable LED Lamp for Industrial Applications
Enhance your electronic devices and signage with the high-performance LED lamp available online. Featuring excellent brightness, uniform light distribution, and broad color options, this LED is perfect for industrial backlighting, switches, and outdoor signs. Its compact T-1 3/4 package and tape reel packaging support easy automation and assembly, saving time and reducing costs. Designed with reliable features and RoHS compliance, it ensures long-lasting performance and consistent illumination in various environmental conditions. Order now to upgrade your lighting solutions with this durable, high-efficiency LED.
Buy Avago HLMP-C223 now and experience unmatched brightness and durability for your backlighting, indicator, and signage needs.
Frequently Asked Questions
Where can I buy BROADCOM HLMPC223?
You can click on the BUY or RFQ button to purchase HLMPC223 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPC223?
You can download the HLMPC223 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPC223?
BROADCOM
