BROADCOM ACPLM72T000E Digital Optocoupler
The ACPL-M72T is a low power digital optocoupler designed for high-temperature industrial and automotive applications, featuring CMOS IC technology for low power consumption and fast response times. Suitable for microcontroller interfaces, isolating A/D and D/A conversions, and high speed gate driving for IGBTs and power MOSFETs, the device operates over -40°C to 125°C with reinforced R2Coupler™ isolation, making it ideal for automotive CANBus communication and other high reliability electronics. It is recognized by UL, CSA, and IEC standards, complying with AEC-Q100 Grade 1 testing guidelines.
BROADCOM ACPLM72T000E Digital Optocoupler Specifications:
- Input-Output Momentary Viso 4000 Vins withstand voltage, measured for 1 minute
- Input-Output Resistance Rio 10^14 Ω at 500 V
- Input-Output Capacitance Cro 0.6 pF at 1MHz
- Maximum Working Insulation Voltage Viorm 567 VpEAK
- Input Current Ie, max 150 mA, typical 40 mA at Ta=25°C
- Output Power Ps, max 600 mW
- Operating Temperature Range: -40°C to 125°C
- Storage Temperature: -55°C to 130°C
- Supply Voltage Vop 0 to 65 V, typical 5V
- Propagation Delay: High Speed model 26-35 ns, low power model 60-100 ns
- UL1577 Recognized, 4000 Vrms/1 min dielectric withstand
- CSA approved, IEC/EN/DIN EN 60747-5-5 compliant

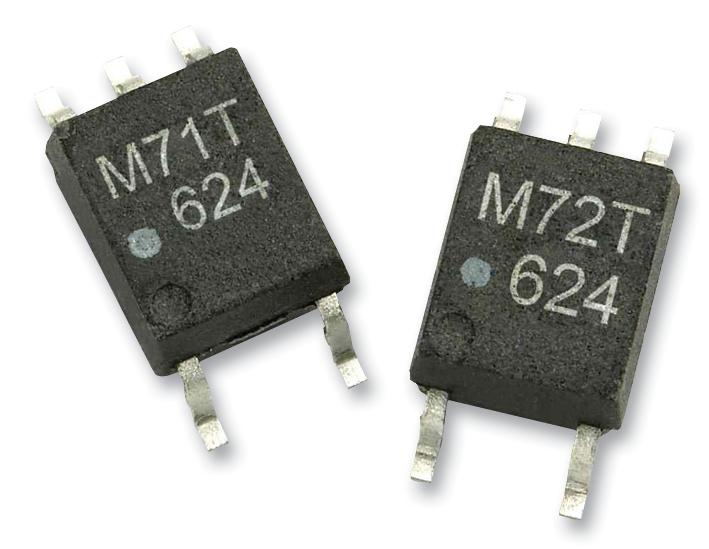

Buy the Buy Avago High Speed Low Power Digital Optocoupler Part Number ACPL-M72T Online
Enhance your electronic systems with the Avago ACPL-M72T digital optocoupler, offering low power consumption, fast response times, and wide operating temperature. Suitable for automotive CANBus, microcontroller interfaces, and high-speed gate drivers, this device provides reinforced R2Coupler™ isolation for critical safety and reliability. Recognized by UL and CSA with IEC standards compliance, it ensures high-performance digital signal isolation. Easy to order online, this optocoupler is essential for engineers seeking robust, efficient, and certified optocoupling solutions in demanding environments.
Order your Avago series ACPL-M72T low power high-speed digital optocoupler today and ensure reliable, high temperature signal isolation for automotive and industrial projects.
Frequently Asked Questions
Where can I buy BROADCOM ACPLM72T000E?
You can click on the BUY or RFQ button to purchase ACPLM72T000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ACPLM72T000E?
You can download the ACPLM72T000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ACPLM72T000E?
BROADCOM
