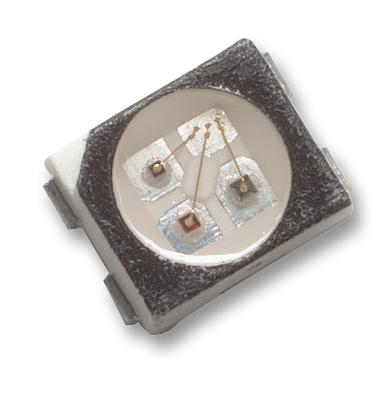

BROADCOM HSMFA201A00J1 Surface Mount LED Indicators
This family of surface mount LED indicators is packaged in a standard PLCC-4 form factor, designed for high reliability and environmental resilience. Suitable for automotive interior, signage, and industrial applications, these LEDs feature a super wide 120° viewing angle, built-in reflector for increased brightness, and compatibility with IR reflow soldering. They are available in multiple colors, including red, yellow, green, and multicolor options, with bin and intensity selections that ensure consistent luminous performance across batches, making them ideal for backlighting, indicator panels, and signage in harsh environments.
BROADCOM HSMFA201A00J1 Surface Mount LED Indicators Specifications:
- Package Type: PLCC-4 (Plastic Leaded Chip Carrier)
- Device Colors: Red, Yellow, Green, Amber, Orange, Green, Blue, Multicolor
- Viewing Angle: 120°
- Maximum Forward Current: 30mA
- Peak Forward Current: 100mA
- Power Dissipation: 48-120mW depending on model
- Reverse Voltage: 5V
- Junction Temperature: 110°C
- Operating Temperature Range: -55°C to +100°C
- Storage Temperature Range: -55°C to +100°C
- Dominant Wavelength Range: 468-635nm depending on color
- Luminous Intensity (typical): 9.0 to 560.0 mcd depending on bin and color
- Electrical Characteristics: Forward Voltage approximately 1.9V to 3.9V depending on color
- Compatibility: IR and TTW reflow processes
- Environmental Compliance: RoHS compliant
- Package Dimensions: approximately 28mm x 28mm footprint
Buy the Avago Technologies HSMx-A2-xx-xxxxx – Reliable Surface Mount LED Indicators for Industrial Applications
Enhance your electronic projects with Avago Technologies surface mount LED indicators. These high-reliability LEDs feature a 120° viewing angle, wide color options, and compatibility with IR reflow soldering, making them ideal for automotive, industrial, and signage applications. Packaged in a standard PLCC-4 form factor, they ensure consistent brightness and performance even in harsh environments. Order now online to improve your backlighting, indicator panels, and signage durability with proven LED technology designed for industrial-grade reliability.
Buy Avago Technologies HSMx-A2-xx-xxxxx surface mount LED indicators now and experience unmatched environmental reliability and versatile illumination performance.
Frequently Asked Questions
Where can I buy BROADCOM HSMFA201A00J1?
You can click on the BUY or RFQ button to purchase HSMFA201A00J1 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMFA201A00J1?
You can download the HSMFA201A00J1 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMFA201A00J1?
BROADCOM
