BROADCOM HLMPK150 Deep Red LED
The HLMP-K150 from Avago is a through-hole, deep red LED based on AlGaAs technology, offering high efficiency and low power consumption. It features a T-1 (3mm) round package with a wavelength of 637nm, a forward voltage of approximately 1.6V at 1mA current, and a luminous intensity of around 2mcd. The LED has a wide viewing angle of 60 degrees and is compatible with CMOS and TTL circuits. It is ideal for high light output with minimal power, suitable for low-power circuits, battery-powered equipment, and telecommunication indicators.
BROADCOM HLMPK150 Deep Red LED Specifications:
- Package: T-1 (3mm) round
- Wavelength: 637 nanometres
- Forward Voltage: approx. 1.6V at 1mA
- Luminous Intensity: around 2mcd
- Viewing Angle: 60 degrees
- Current: 1mA
- Material: AlGaAs/GaAs technology
- Application: low power circuits, battery operated devices, telecommunication indicators
- Compatible with CMOS and TTL
- Operating Temperature Range: -20°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Peak Forward Current: 300 mA
- Power Dissipation: 87 mW
- Reverse Voltage: 5V
- Junction Temperature: 110°C
- Peak Wavelength: 637 nm
- Spectral Line Halfwidth: 20 nm
- Rise Time: 30 ns

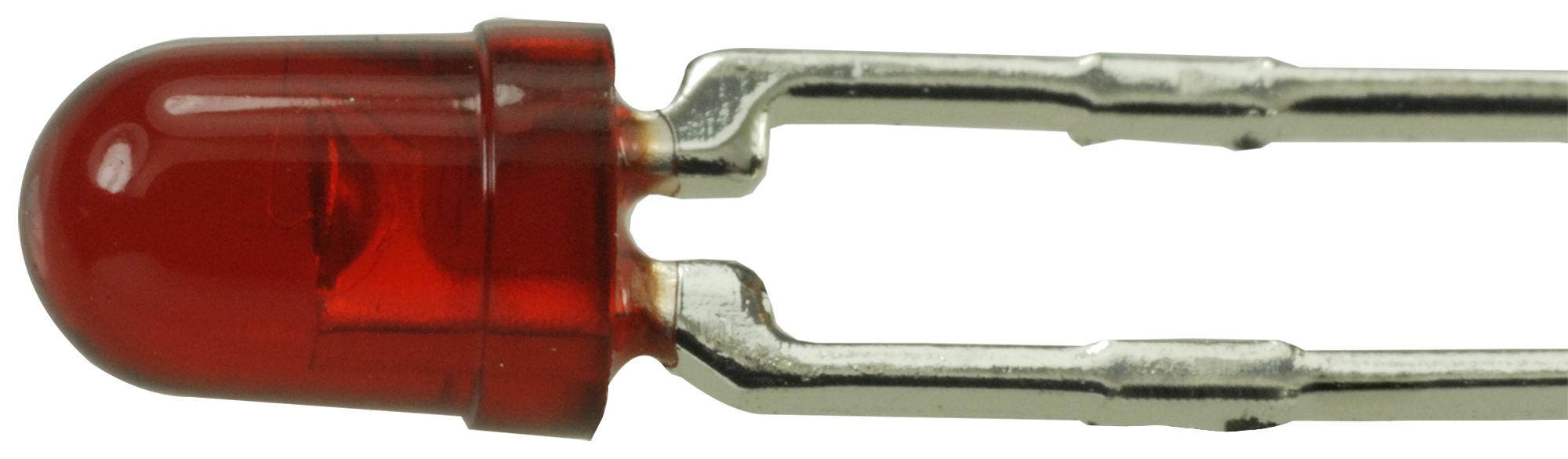

Buy the Avago HLMPK150 – Reliable Red LED for Industrial Applications
Enhance your projects with the Avago HLMP-K150, a high-efficiency red LED designed for low power consumption and high reliability. Its deep red color (637nm) provides excellent visibility and suitability for telecommunication indicators, low-power circuits, and battery-powered equipment. The T-1 package offers a wide viewing angle of 60 degrees, making it perfect for various industrial applications. Compatible with CMOS and TTL circuits, this LED ensures robust performance in demanding environments, delivered with specifications optimized for durability and consistent luminous output.
Get Avago HLMP-K150 today—built for precision and long-lasting durability in LED lighting components.
Frequently Asked Questions
Where can I buy BROADCOM HLMPK150?
You can click on the BUY or RFQ button to purchase HLMPK150 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMPK150?
You can download the HLMPK150 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMPK150?
BROADCOM
