BROADCOM ACPLP347560E Optocoupler Power Driver
The ACPL-P347/W347 is an optocoupler designed for driving SiC and GaN power transistors such as MOSFETs and IGBTs used in power conversion, motor drives, and inverters. It features high peak output current of 1.0A, rail-to-rail output voltage, and fast propagation delay of 110 ns, ensuring efficient switching. Compliant with safety standards including UL, CSA, and IEC/EN 60747-5-5, it provides high common-mode rejection (up to 100 kV/µs) and an isolation voltage of up to 3750V, making it ideal for industrial and renewable energy applications.
BROADCOM ACPLP347560E Optocoupler Power Driver Specifications:
- Output Current: 1.0A maximum peak output current
- Supply Voltage: 15V to 30V
- Propagation Delay: 110 ns maximum
- Propagation Delay Difference: 50 ns maximum
- Output Voltage: Rail-to-rail with Vos = -0.4V to 0.2V
- Common Mode Rejection: 100 kV/µs minimum (at Vom = 1500V)
- Isolation Voltage: 3750V UL Recognized / 5000V UL Recognized option
- Maximum Operating Temperature: -40°C to +105°C
- Insulation Voltage: Up to 891Vpeak (ACPL-P347), Up to 1140Vpeak (ACPL-W347)
- Package Type: Stretched SO6, compact size, compliance with safety standards
- Thermal Resistance (junction to ambient): LED 135°C/W, Detector 47°C/W
- Input LED current: 4.2 mA maximum with hysteresis

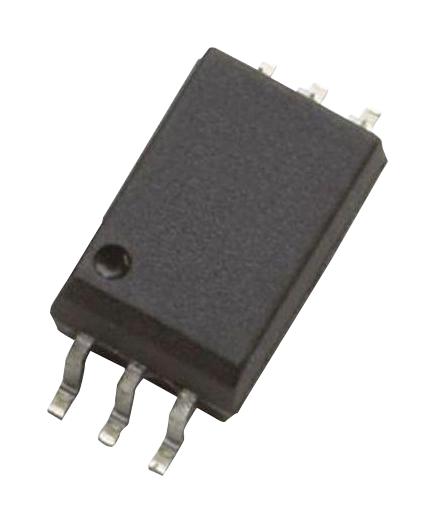

Buy the Buy Broadcom ACPL-P347 Part Number 560E Online
Purchase the Broadcom ACPL-P347 optocoupler online to ensure efficient SiC/GaN MOSFET and IGBT gate drive with high peak current of 1A, fast propagation delay, and robust safety features. Its rail-to-rail output voltage and high common-mode rejection make it ideal for industrial, motor drives, and renewable energy inverter applications. Easily integrated with a compact stretched SO6 package, it meets UL, CSA, and IEC safety standards. Experience reliable insulation and enhanced system efficiency by ordering today for quick delivery and technical support.
Get Broadcom ACPL-P347 today—built for high current drive and reliable industrial performance.
Frequently Asked Questions
Where can I buy BROADCOM ACPLP347560E?
You can click on the BUY or RFQ button to purchase ACPLP347560E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ACPLP347560E?
You can download the ACPLP347560E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ACPLP347560E?
BROADCOM
