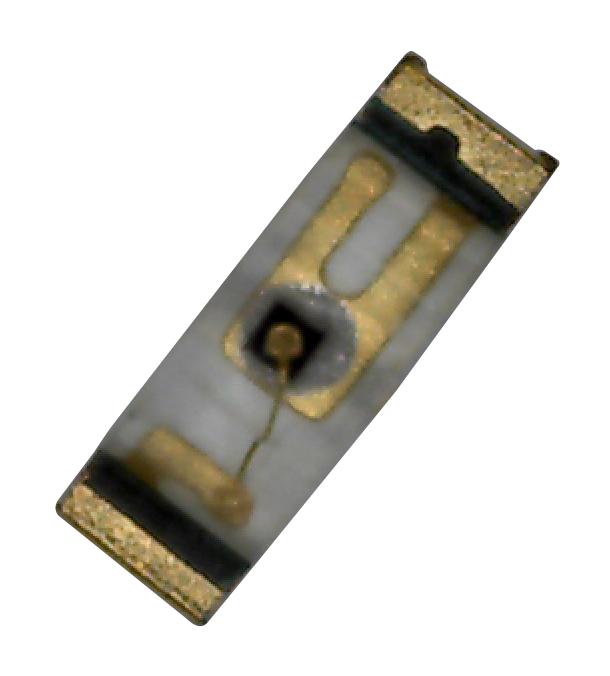

BROADCOM HSMAC120 High Performance LED
High-performance LED chip utilizing AlInGaP technology, ideal for backlighting, indicators, and signage. Features diffused optics, high brightness, operational from -40°C to +85°C, compatible with IR soldering, and available in multiple colors and packages designed for surface mount applications. Packaged in tape and reel with moisture barrier for easy pick and place processing, suitable for various industrial and consumer electronic uses. Emphasizes reliable, efficient lighting suitable for LCD backlighting, keypad illumination, and microdisplay applications, ensuring long-lasting performance and bright output.
BROADCOM HSMAC120 High Performance LED Specifications:
- Material: AlInGaP
- Operating Temperature Range: -40°C to +85°C
- Reel Packaging: 4000 units per reel for most packages
- Package Types: Top emitting, side emitting, reverse mount
- Optics: Diffused and non-diffused options
- Colors Available: Amber, Orange, Red, Deep Red
- Maximum Forward Current: 25 mA
- Power Dissipation: 60 mW
- Reverse Voltage: 5 V
- Junction Temperature: 95°C
- Soldering Compatibility: IR reflow
- Storage Conditions: 5°C to 30°C at 60% RH max
- Laser Wavelength Range: 595–639 nm depending on color
- Peak Brightness: Up to 90 lm at 20 mA
Buy the Avago Series HSMx High Performance LED: HSMAC120
Purchase Avago HSMAC120 high-performance LED chips online today to enhance your electronic projects with reliable, bright, and efficient lighting solutions. Designed for superior backlighting, indicators, and signage applications, these LEDs feature high luminous efficiency and diffused optics for excellent light distribution. Packaged in tape and reel for seamless integration into manufacturing processes, they support IR soldering and operate effectively within -40°C to +85°C. Buy now to upgrade your electronic systems with durable, high-brightness LEDs built for long-term performance and consistency.
Get Avago HSMAC120 high-performance LED today—designed for vibrant backlighting and indicator displays with reliable and long-lasting brightness.
Frequently Asked Questions
Where can I buy BROADCOM HSMAC120?
You can click on the BUY or RFQ button to purchase HSMAC120 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMAC120?
You can download the HSMAC120 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMAC120?
BROADCOM
