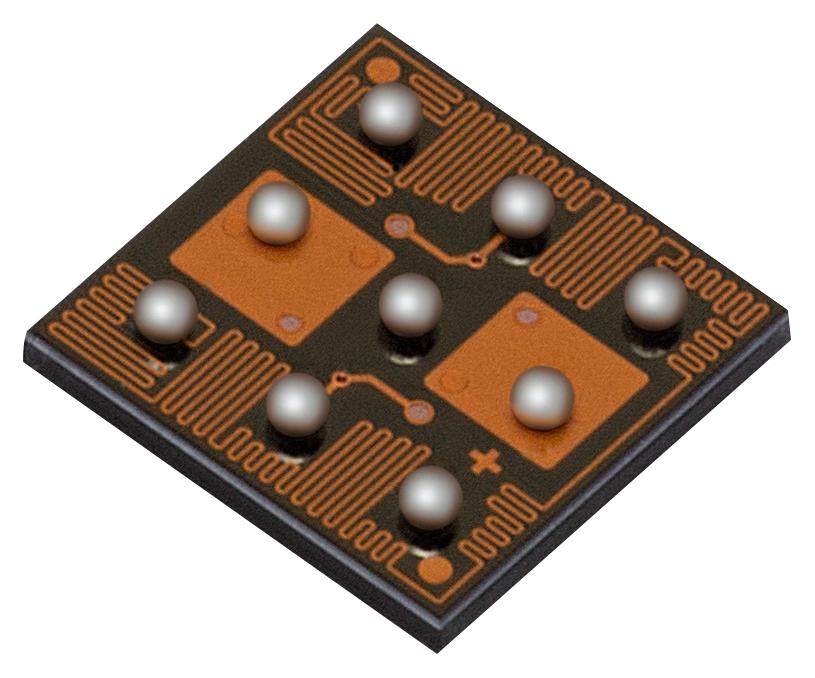

BROADCOM AFBRS4N33C013 Silicon Photo Multiplier
The Broadcom AFBR-S4N33C013 is a highly sensitive silicon photo multiplier designed for precise detection of single photons across a broad spectrum, including UV and visible light. With a 3.0 x 3.0 mm active area, high photon detection efficiency over 54% at 420 nm, and excellent timing and gain uniformity, it is ideal for applications like nuclear medicine, astrophysics, and high-energy physics. The device features a chip-sized package with TSV technology for high-density tiling, operates from -40°C to +85°C, and is RoHS compliant for environmentally friendly manufacturing.
BROADCOM AFBRS4N33C013 Silicon Photo Multiplier Specifications:
- Device area: 3.14 x 3.14 mm2
- Active area: 3.0 x 3.0 mm2
- Micro cell pitch: 30 um
- Number of micro cells: 9815
- Fill factor: 76%
- Spectral range: 300 - 900 nm
- Peak sensitivity wavelength: 420 nm
- Breakdown voltage: 26.9 V
- Temperature coefficient of breakdown voltage: 26 mV/K
- Dark current: 23 pA
- Dark count rate: 2.3 Mcps
- Gain: 3.2 x 10^6
- Optical crosstalk: 11 - 34%
- After pulsing probability: <1%
- Recharge time constant: 48 ns
- Nominal terminal capacitance: 498 pF
- Operating temperature: -40°C to +85°C
Buy the Broadcom AFBR-S4N33C013 – Reliable Silicon Photo Multiplier for Industrial Applications
Purchase the Broadcom AFBR-S4N33C013 today online to experience unparalleled sensitivity in photon detection. Perfect for nuclear medicine, astrophysics, and scientific instrumentation, this silicon photo multiplier offers high PDE over a broad spectrum, excellent timing, and uniform gain. Easy to integrate with chip-sized package and TSV technology for high-density tiling, it ensures reliable performance in demanding research and industrial environments. Secure fast delivery and expert support when you buy online now.
Order your Broadcom AFBR-S4N33C013 silicon photo multiplier today and enhance your photon detection systems with our proven, high-performance sensor technology.
