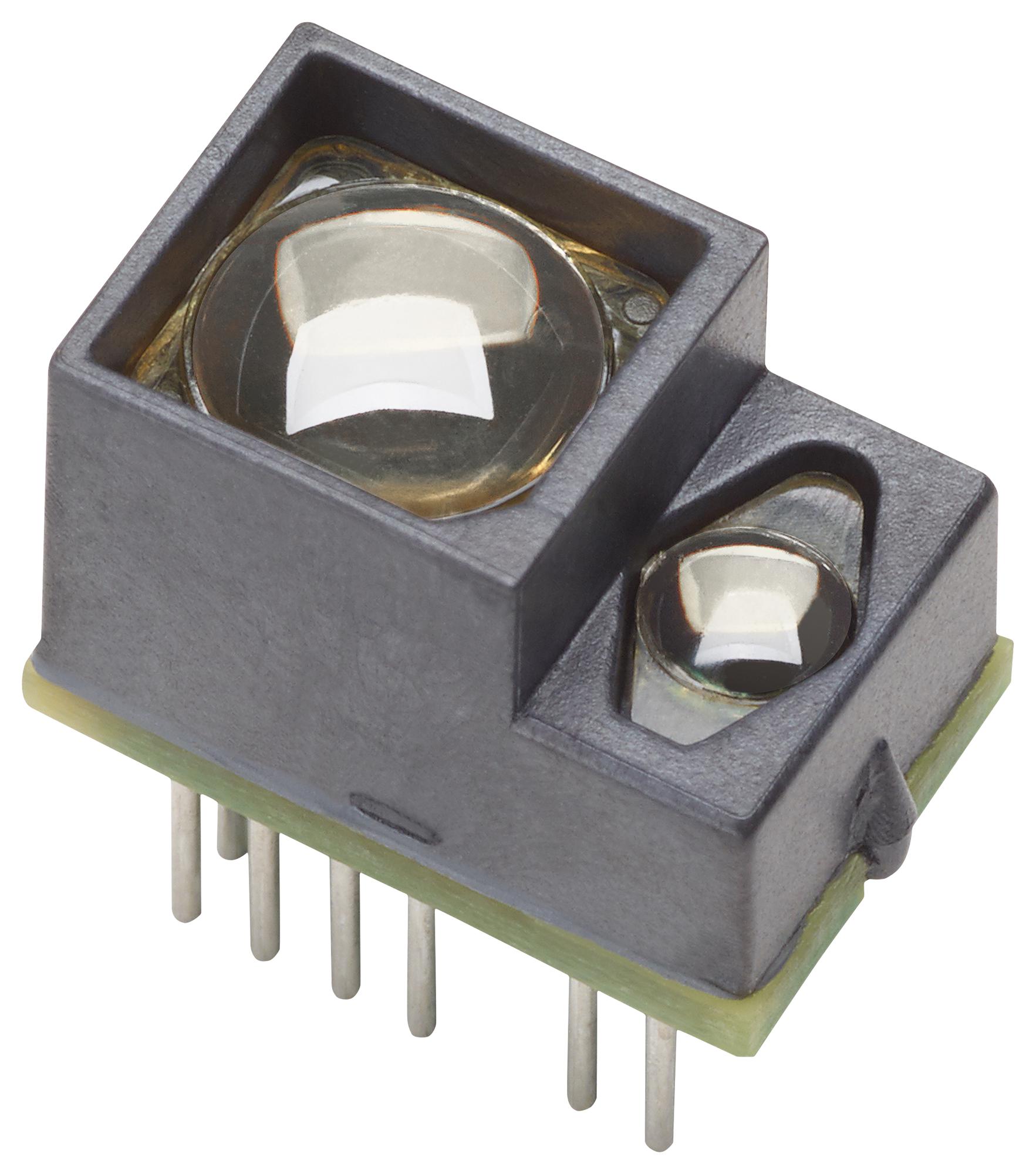

BROADCOM AFBRS50LV85D Time-of-Flight Sensor Module
The Broadcom AFBR-S50LV85D is an advanced Time-of-Flight module designed for high-speed distance and motion sensing over medium-range distances up to 30 meters. It features an integrated 850-nm laser source, 32 receiver pixels with a 1.55° field of view per pixel, and a compact size of 12.4 x 7.6 x 7.9 mm. Capable of frame rates up to 3 kHz and operation in bright sunlight, it supports applications like robotics, security, and automation, with low power consumption and high measurement accuracy below +1% error.
BROADCOM AFBRS50LV85D Time-of-Flight Sensor Module Specifications:
- Voltage Supply: 5 V
- Current Consumption: Typical 33 mA
- Laser Wavelength: 850 nm
- Laser Power: Peak 40 mW, Average < 0.6 mW
- Receiver Pixels: 32
- Field of View per Pixel: 1.55° x 1.55°
- Transmitter Beam Width: 2 x 2°
- Maximum Distance Range: Up to 30 meters
- Operating Temperature: -20°C to 70°C
- SPI Interface: Up to 25 MHz
- Size: 12.4 mm x 7.6 mm x 7.9 mm
- Frame Rate: Up to 3 kHz
- Measurement Accuracy: Typically below +1%
- Unambiguous Range: Up to 100 meters in 2f mode
- Ambient Light Tolerance: Operation up to 200 kLux
- Laser Safety Class: 1 (eye-safe)
Buy the Buy BROADCOM AFBR-S50LV85D Part Number AFBRS50LV85D Online
Order the Broadcom AFBR-S50LV85D now for high-precision distance and motion sensing. With integrated 850-nm laser, 32 pixels, and 30 meters range, this compact module offers fast frame rates up to 3 kHz, low power use, and sunlight operation. Ideal for robotics, security, automation, and industrial applications, it ensures accurate readings with minimal error and broad ambient light tolerance. Get yours today to enhance your system's sensing capabilities with reliable, advanced technology designed for outdoor and indoor environments.
Get BROADCOM AFBR-S50LV85D today—built for precise distance measurement, high-speed operation, and reliable outdoor performance.
