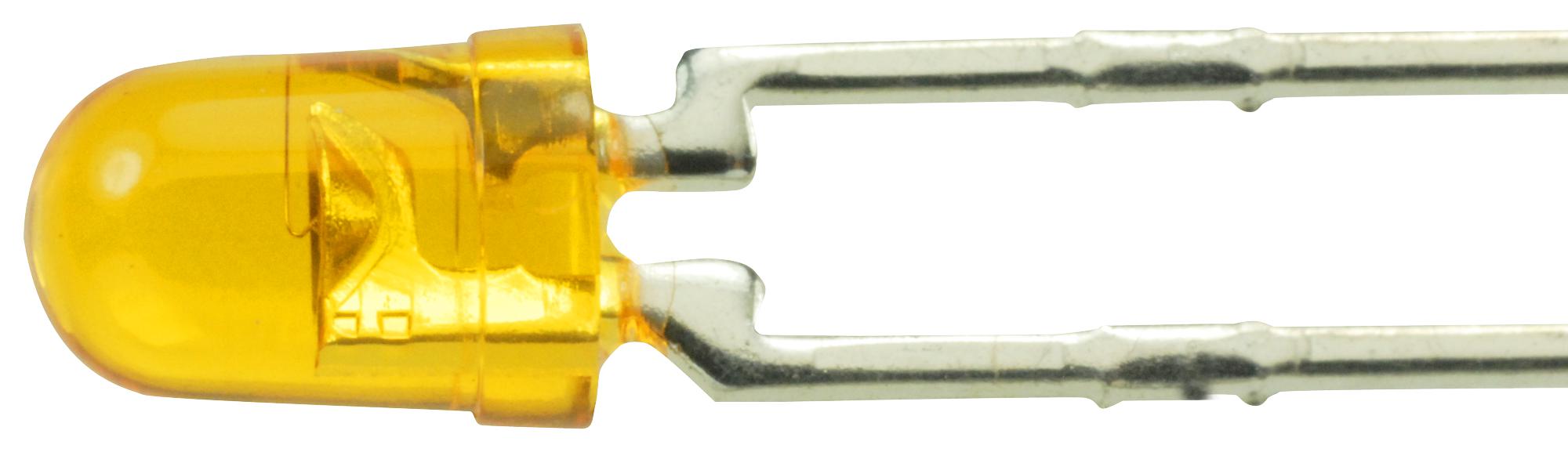

BROADCOM HLMP1421 High-Intensity Yellow LED
The HLMP-1421 is a high-efficiency yellow LED lamp with a 3mm T-1 package featuring a tinted, non-diffused lens. It provides high brightness with a narrow beam angle for focused illumination, ideal for LED lighting and industrial use. Designed to deliver a luminous intensity of at least 92 mcd at 10mA, it offers excellent reliability, rugged construction, and consistent performance in various settings. Its compact size and focus on high on-axis brightness make it suitable for applications demanding intense, directional light. Suitable for general-purpose lighting, indicators, and signage.
BROADCOM HLMP1421 High-Intensity Yellow LED Specifications:
- Lens: Tinted, Non-diffused
- Color: Yellow
- Package Size: T-1 (3 mm)
- Luminous Intensity at 10 mA: 92 mcd (min.)
- Peak Wavelength: 583 nm
- Spectral Line Halfwidth: 36 nm
- Dominant Wavelength: 585 nm
- Forward Voltage: 2.0 V (typ.) at 10 mA
- Reverse Voltage: 5.0 V
- Power Dissipation: 85 mW
- Maximum Forward Current: 60 mA
- Average Forward Current: 20 mA
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Lead Configuration: General purpose leads
- Reliability: Rugged and durable construction
- Dimensions: Diameter 3 mm, length varies with leads
- Package Options: Tape & Reel available
- Compliance: UL Listed, CSA Certified
Buy the Avago Series HLMP High-Intensity LED Lamp: HLMP1421
Experience the high-performance yellow LED with focused, narrow-beam light for industrial, indicator, and lighting projects. Compact, rugged, and efficient, this 3mm T-1 LED delivers at least 92 mcd brightness at 10mA, with a spectral peak around 583 nm. Designed for durability and reliable operation, it’s perfect for signage, indicators, and precise illumination. Easy to integrate into various electronic and lighting systems thanks to its general-purpose leads and tape & reel packaging. Order now to ensure bright, consistent performance for your applications.
Get Avago HLMP1421 today—built for high brightness, durability, and focused illumination in industrial and lighting applications.
Frequently Asked Questions
Where can I buy BROADCOM HLMP1421?
You can click on the BUY or RFQ button to purchase HLMP1421 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP1421?
You can download the HLMP1421 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP1421?
BROADCOM
