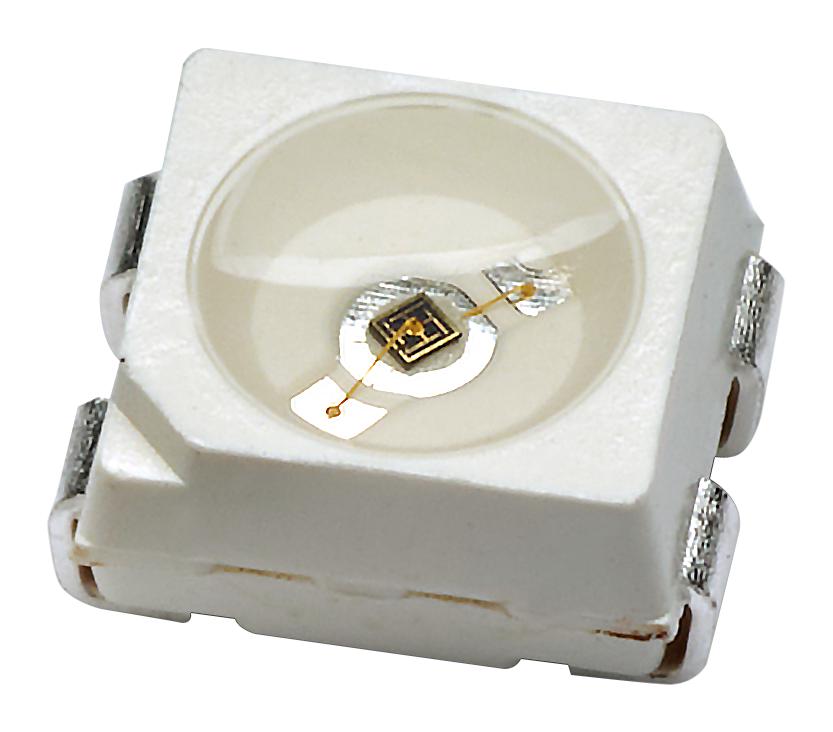

BROADCOM AREQ80C000000 3528 PLCC-4 Infrared LED
The Broadcom AREQ-80C0-00000 is a high-efficiency, double-junction 850-nm infrared emitter packaged in a standard PLCC-4 format. This emitter is specifically engineered for industrial sensing and infrared illumination applications, particularly for cameras. Its design facilitates easy pick-and-place assembly via tape and reel packaging and is compatible with reflow soldering processes. The device offers a wide viewing angle of 120° and is suitable for various industrial environments requiring reliable infrared emission.
BROADCOM AREQ80C000000 3528 PLCC-4 Infrared LED Specifications:
- Peak Wavelength: 850 nm
- Viewing Angle: 120°
- Radiant Intensity (Ie): 11.2-45.0 mW/sr
- DC Forward Current: 100 mA
- Peak Forward Current: 1000 mA
- Power Dissipation: 200 mW
- LED Junction Temperature: 125 °C
- Operating Temperature Range: -40 to +100 °C
- Storage Temperature Range: -40 to +100 °C
- Spectral Half-Width (Δλ½): 34 nm
- Forward Voltage (VF): 1.6-2.0 V
- Rise and Fall Time: 15 ns
- Thermal Resistance (RθJ-S): 140 °C/W
- Temperature Coefficient of Radiant Intensity (TCIe): -0.13 %/°C
- Temperature Coefficient of Forward Voltage (TCVF): -0.8 mV/°C
- Temperature Coefficient of Peak Wavelength (TCλp): 0.28 nm/°C
- Package Type: PLCC-4
- MSL: 3
