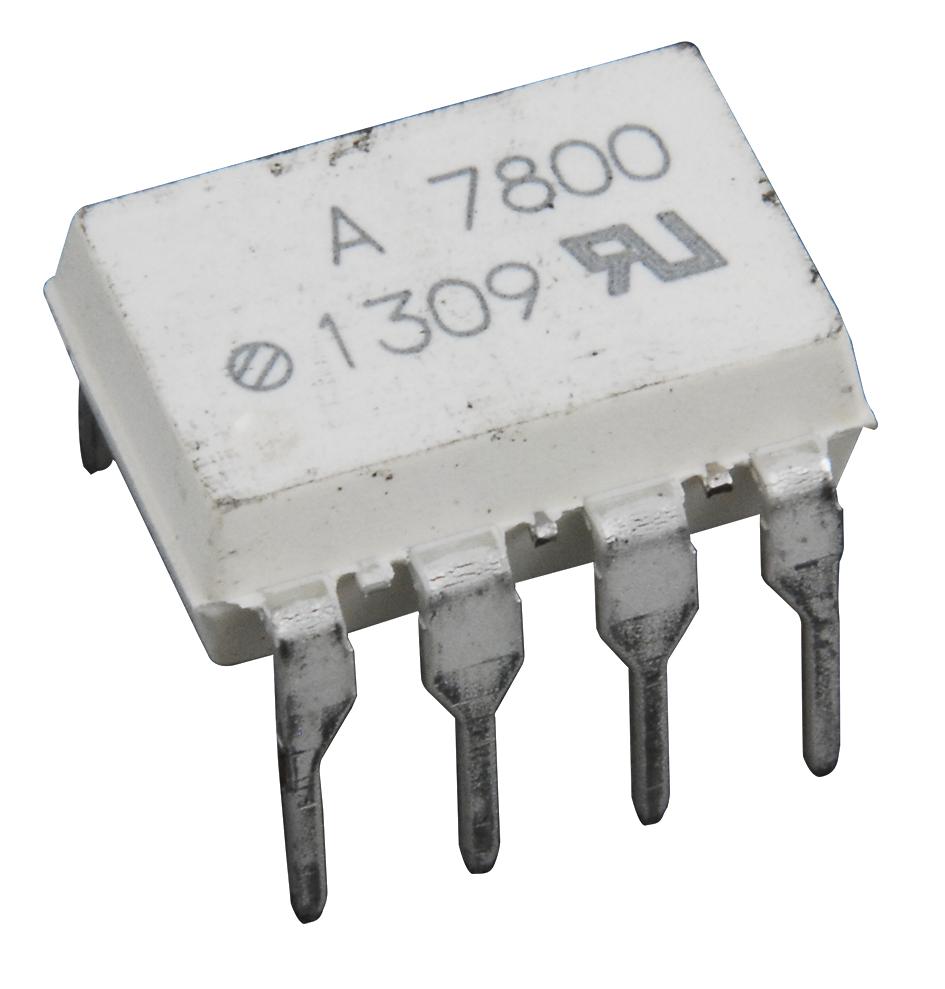

BROADCOM HCPL7800000E Isolation Amplifier
The HCPL-7800A/HCPL-7800 family is designed for current sensing in motor drives and industrial applications, offering high precision and stability. Utilizing sigma delta analog-to-digital converter technology, chopper stabilized amplifiers, and fully differential topology, these isolation amplifiers provide excellent noise rejection, offset, and gain accuracy. They feature high common-mode rejection, compact 8-pin DIP packages, and RoHS compliance, making them suitable for high-noise environments and general analog signal isolation tasks. Their robust design ensures reliable performance in demanding industrial and power management settings.
BROADCOM HCPL7800000E Isolation Amplifier Specifications:
- Common-Mode Rejection: 15 kV/us at Vcm= 1000 V
- Gain Drift vs. Temperature: 0.00025 V/V/°C
- Input Offset Voltage: 0.3 mV
- Bandwidth: 100 kHz
- Nonlinearity: 0.004%
- Isolation Voltage: UL Recognized 3750 Vrms for 1 min
- Input/Output test voltage: 3750 Vrms
- Operating Temperature: -40°C to +85°C
- Supply Voltage: 0 to 55 V
- Input Voltage Range: -200 mV to 200 mV (accurate operation)
- Output Voltage: 1.29 V (low state), 3.80 V (high state)
- Power Dissipation: 600 mW
- Output Resistance: 15 Ω
- Insulation Resistance: >10^9 Ω
- Capacitance: 12 pF at 1 MHz
- Input Impedance: 500 kΩ
- Input DC Common-Mode Rejection Ratio: 76 dB
