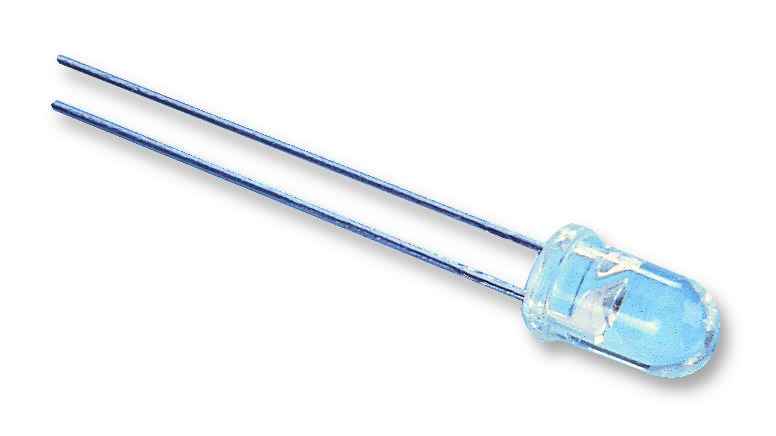

BROADCOM HLMPEG24PS000 High-Intensity LED Lamp
These high-brightness AllnGaP LED lamps provide intense light output for outdoor traffic signals, pedestrian signs, and automotive lighting. Featuring precision optical design, well-defined radiation patterns, and high temperature tolerance up to +130°C, they ensure excellent visibility and durability in various environmental conditions. Available in multiple viewing angles and colors including red, amber, orange, and red-orange, they meet critical standards for traffic management, signage, and automotive applications. The lamps utilize advanced epoxy with UV inhibitors for long-term outdoor performance, making them ideal for demanding outdoor illumination and signaling needs.
BROADCOM HLMPEG24PS000 High-Intensity LED Lamp Specifications:
- Wavelengths: 584.5-626 nm depending on color variant
- Viewing angles: 8°, 15°, 23°, 30°
- Maximum junction temperature: +130°C
- Operating temperature range: -40°C to +100°C
- Forward Current: DC 50mA, Peak Pulsed 100mA
- Forward Voltage: Amber 2.02V, Red 1.90V, Orange 1.98V
- Power Dissipation: Derates linearly at 30mA for longevity
- Encapsulation: Advanced epoxy with UV inhibitors for outdoor resistance
- Package options: With or without lead standoffs, 5 mm round package
- Certifications: RoHS compliant, UL and CSA recognized
Buy the AllnGaP LED Series Signal Light: HLMPEG24PS000
Buy your Avago Technologies High-Intensity LED Lamp online now to ensure reliable outdoor signaling for traffic management, signage, and automotive lighting. These durable LED lamps feature advanced epoxy with UV inhibitors for long-term outdoor performance, high maximum junction temperature up to +130°C, and multiple viewing angles and colors including red, amber, orange, and red-orange. Easy to install with options for lead standoffs and various package configurations, they meet all relevant safety and performance standards, making them the perfect choice for demanding outdoor illumination and signaling projects. Secure your supply today for optimal visibility and reliability.
Order your Avago Technologies Series High-Performance LED Lamp today and enhance outdoor signaling with reliable, high-intensity illumination solutions.
