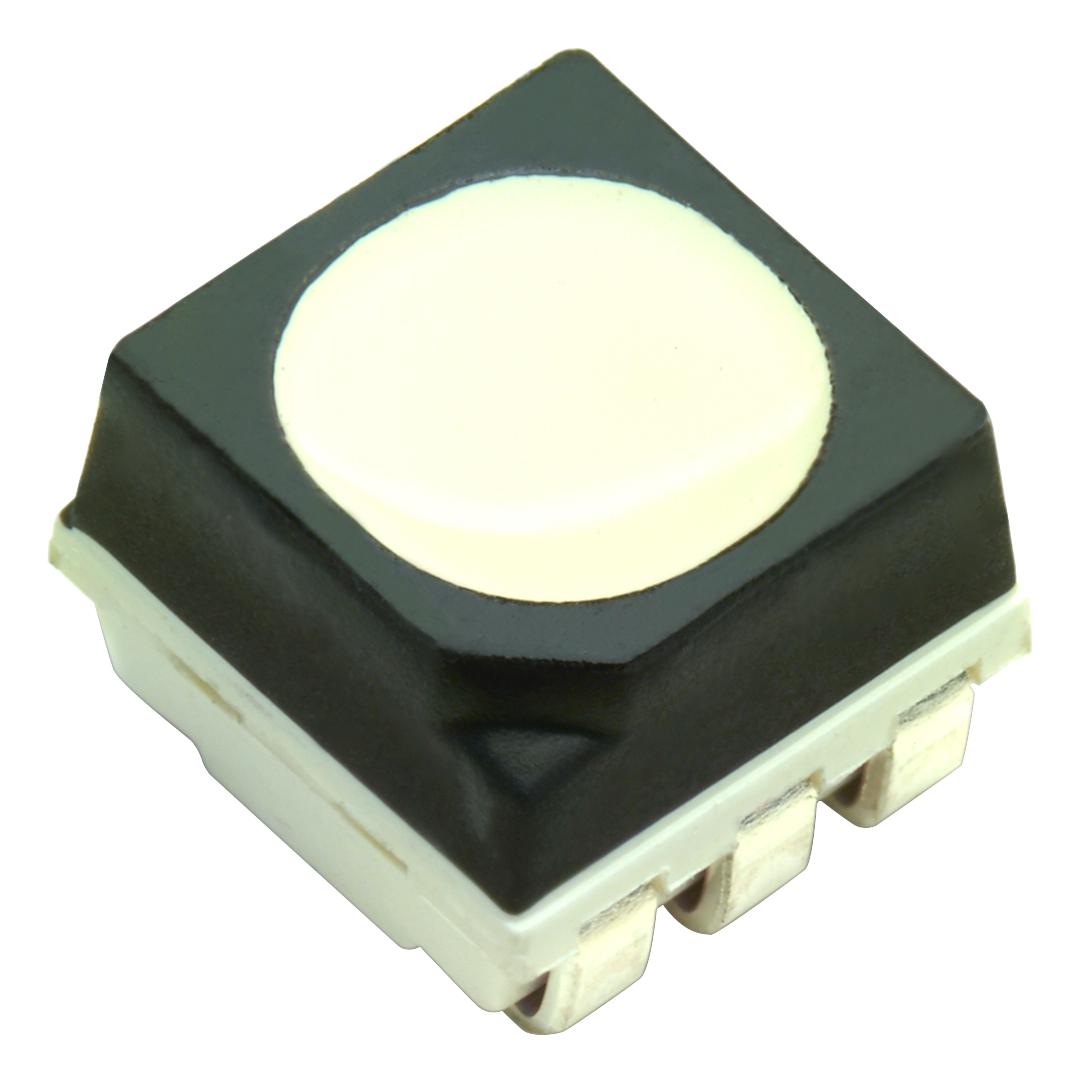

BROADCOM ASMBTTF00A20B Tricolor LED
The Broadcom ASMB-TTF0-0A20B is a tricolor PLCC-6 LED designed for outdoor full color displays, featuring a black outer appearance for enhanced contrast, individually addressable pins for each color, and diffused encapsulation. Its short-lead design facilitates easier potting and reflow soldering, making it suitable for demanding outdoor applications. The LED delivers luminous intensities up to 2210 mcd for green, with a viewing angle of 110°, and operates reliably within a temperature range of -40°C to +100°C, ensuring durable performance in various environments.
BROADCOM ASMBTTF00A20B Tricolor LED Specifications:
- Package Type: PLCC-6
- Color: Red, Green, Blue, individually addressable
- Luminous Intensity: Green up to 2210 mcd, Red and Blue at specified ranges
- Viewing Angle: 110°
- Peak Wavelength: Red 640-910 nm, Green 519-2210 nm, Blue 355-490 nm
- Forward Voltage: Red 1.80-2.40 V, Green 2.70-3.60 V, Blue 2.70-3.60 V
- DC Forward Current: Red 50 mA, Green 30 mA, Blue 30 mA
- Peak Forward Current: 100 mA
- Power Dissipation: Red 120 mW, Green 108 mW, Blue 108 mW
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -40°C to +100°C
- Thermal Resistance: Red 644°C/W, Green 690°C/W, Blue 740°C/W
- Reverse Voltage: Not recommended for reverse bias
- Encapsulation: Epoxy; Terminal Finish: Silver Plating
- Package Marking: No. 4, 2, 3, 4, 5, 6 pin configuration
- Handling: Sensitive to ESD, observe precautions
- Soldering: Reflow soldering recommended, do not exceed twice reflow cycles
Buy the Broadcom ASMB-TTF0-0A20B – Reliable Tricolor LED for Industrial Applications
Purchase the Broadcom ASMB-TTF0-0A20B LED online today to enhance your outdoor full color displays with vibrant, durable illumination. Designed for easy pick-and-place assembly, this high-brightness, weather-resistant LED is perfect for demanding applications, offering excellent contrast and long-lasting performance. Its diffused encapsulation and short-lead design facilitate reliable reflow soldering and potting processes, ensuring a smooth manufacturing experience. Reliable and bright, this tricolor LED is the ideal choice for outdoor signage, digital displays, and engineering projects requiring vibrant color accuracy and harsh environment resilience.
Get Broadcom ASMB-TTF0-0A20B today—built for outdoor full color display durability and precision lighting solutions.
Frequently Asked Questions
Where can I buy BROADCOM ASMBTTF00A20B?
You can click on the BUY or RFQ button to purchase ASMBTTF00A20B from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ASMBTTF00A20B?
You can download the ASMBTTF00A20B datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ASMBTTF00A20B?
BROADCOM
