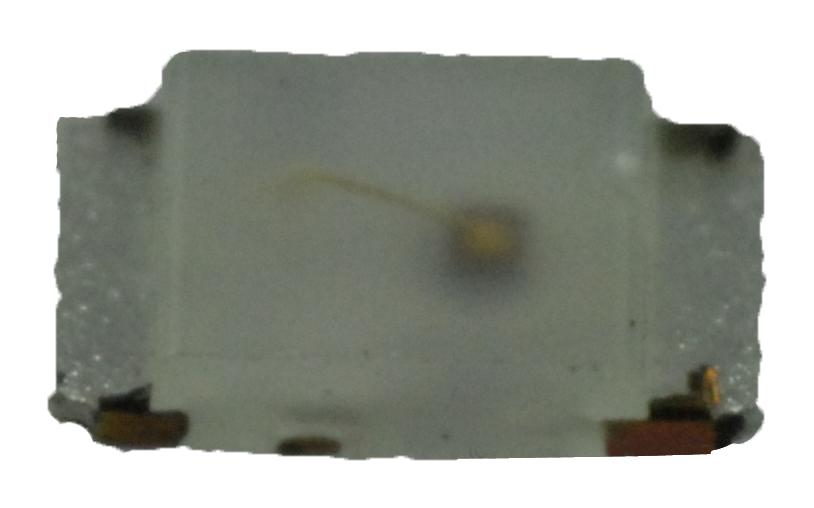

BROADCOM ASMTRR45AQ902 Surface Mount ChipLED
The ASMT-Rx45 series LED is a compact 0.45mm diameter surface-mount chip LED based on the 0603 platform, offering a wide 130° viewing angle and high brightness. Designed for ease of soldering via IR reflow, it features a Moisture Sensitivity Level of MSL-2a and operates from -40°C to 100°C. Available in multiple colors including red, orange, yellow-green, and amber, it is ideal for automotive dash lighting, industrial switch illumination, LED signage, and backlight applications in consumer electronics and automation systems. This robust, RoHS-compliant LED ensures reliability in demanding environments.
BROADCOM ASMTRR45AQ902 Surface Mount ChipLED Specifications:
- Platform: 0603 (1.6 x 0.8 x 0.45mm)
- Color Options: Red, Orange, Yellow Green, Amber
- Viewing Angle: 130°
- Operating Temperature Range: -40°C to +100°C
- Junction Temperature: 110°C
- Moisture Sensitivity Level: MSL-2a
- Soldering: IR reflow compatible
- Forward Current: 20 mA(max)
- Power Dissipation: 48 mW
- Reverse Voltage: 5 V
- Peak Wavelengths: Red 636 nm, Orange 612 nm, Yellow-Green 574 nm, Amber 593 nm
- Forward Voltage: 1.60V to 2.40V depending on color
- RoHS compliant, Lead (Pb) free
Buy the Avago ASMT-Rx45-U–Reliable Surface Mount ChipLED for Industrial Applications
Order the Avago ASMT-Rx45 series LED online today to ensure high-brightness, reliable performance, and easy integration into automotive dashboards, industrial controls, or signage. These compact, RoHS-compliant LEDs feature wide viewing angles and are compatible with IR reflow soldering, making them suitable for quick assembly in demanding environments. Perfect for use in navigation backlighting, push buttons, switches, and LCD backlighting, this premium LED combines efficiency with durability. Purchase now to improve visibility and enhance your electronic and automotive projects with top-tier LED technology.
Get Avago ASMT-Rx45-U today—built for precision and long-lasting durability in electronic and automotive lighting solutions.
Frequently Asked Questions
Where can I buy BROADCOM ASMTRR45AQ902?
You can click on the BUY or RFQ button to purchase ASMTRR45AQ902 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ASMTRR45AQ902?
You can download the ASMTRR45AQ902 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ASMTRR45AQ902?
BROADCOM
