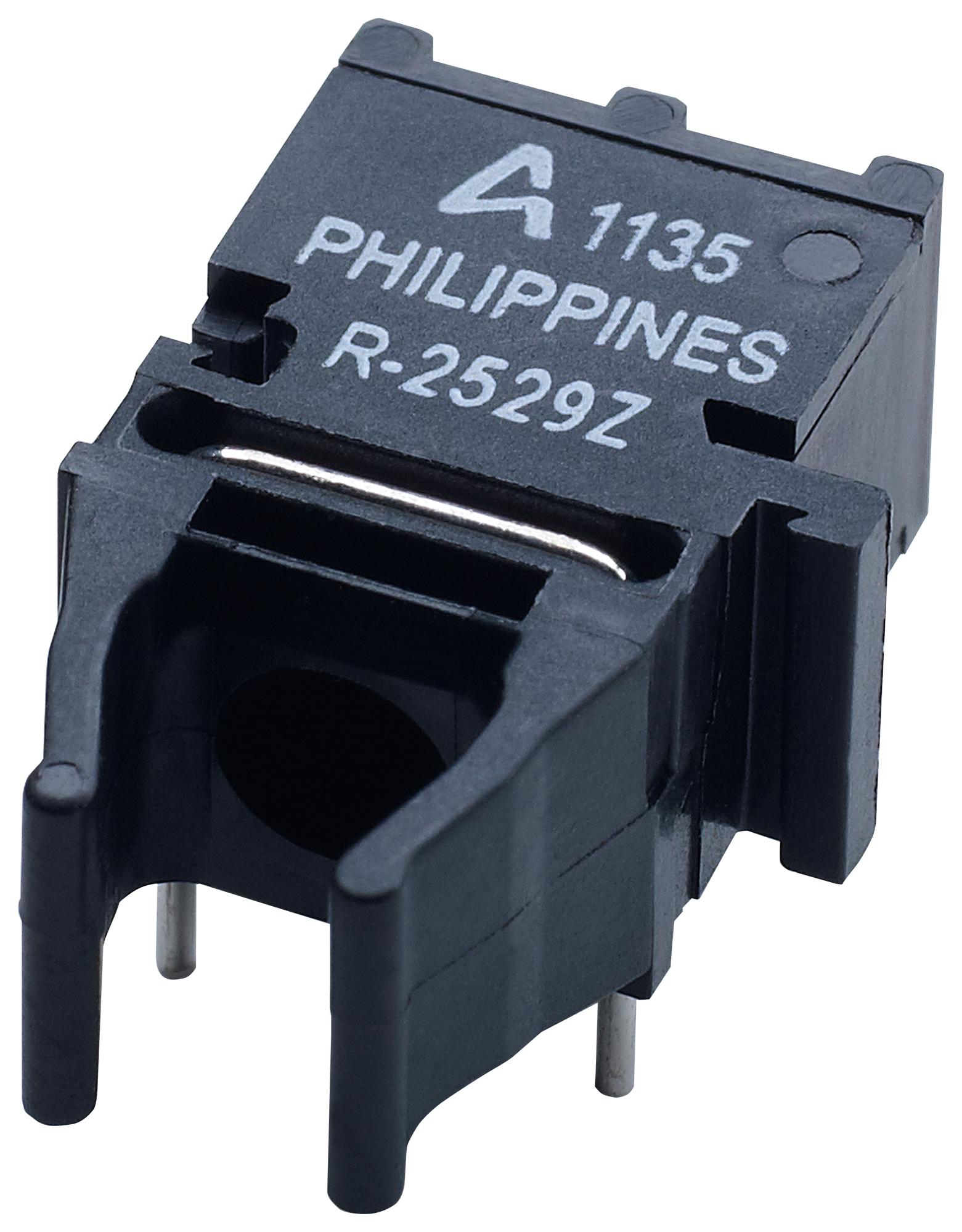

BROADCOM AFBR2529SIZ Fiber Optic Receiver
The AFBR-2529SIZ is a versatile fiber-optic receiver designed for DC to 50 MBd signals with extensive reach up to 50 meters with 1 mm POF, 200 meters at 10 MBd with 200 µm PCS, and 120 meters at 50 MBd. It features an integrated photodiode, TTL compatible output, and analog monitoring for optical power. Suitable for industrial control, automation, and high-voltage isolation, it supports dual connections, is RoHS compliant, and operates reliably from -40°C to +85°C. The device supports 3.3V or 5V power supplies and has a compact, stackable housing for easy installation.
BROADCOM AFBR2529SIZ Fiber Optic Receiver Specifications:
- Operating temperature range: -40°C to +85°C
- Link distance: >0.1m (POF), up to 50m at 50 MBd with 1mm POF, up to 200m at 10 MBd with 200 µm PCS, and up to 120m at 50 MBd with 200 µm PCS
- Input optical power (peak): +2 dBm (1 mm POF), -25 dBm (PCS 200 um)
- Input optical off-state power: -40 dBm (POF), -44 dBm (PCS)
- Supply voltage: 3.3V or 5.0V ± 5%
- Supply current: 20-30 mA
- Data rate: up to 50 MBd
- Response time: 5 ns rise/fall time, 30 ns propagation delay
- Analog RSSI output voltage: proportional to optical power, with resistor selection
- Connector housing: black plastic, stackable, RoHS-compliant
- Pin configuration: Data Out inverted, Vee ground, Veo power, RssiP monitored signal, housing pins for chassis GND
Buy the Broadcom Series Versatile Link Fiber-Optic Receiver: AFBR2529SIZ
Enhance your optical communication system with the Broadcom fiber optic receiver AFBR-2529SIZ. Supporting data rates up to 50 MBd and distances up to 50 meters with 1 mm POF, it ensures reliable performance in industrial control, automation, and high-voltage isolation applications. Featuring integrated photodiode, TTL compatible output, analog power monitoring, and stackable design, this RoHS-compliant device operates within -40°C to +85°C. Easy to install with dual connectors, it provides a durable, space-efficient solution for your fiber-optic links.
Order your Broadcom Series Versatile Link fiber-optic receiver AFBR-2529SIZ today and enhance your industrial control and automation projects with reliable optical communication.
