BROADCOM ASMTYTB20BB02 High Brightness Tricolor LED
The high brightness tri-color surface-mount LED features a black top surface in a standard PLCC-6 package, offering excellent contrast and wide 120° viewing angle. Designed for indoor and outdoor full-color displays, these high reliability LEDs utilize AllnGaP and InGaN technologies for superior brightness. They are compatible with reflow soldering, water-resistant to IPX6, and sensitive to electrostatic discharge. Proper handling, storage, and soldering precautions are essential to maintain performance, especially due to silicone encapsulation and moisture sensitivity. Suitable for versatile lighting and display applications, delivering high efficiency and durability.
BROADCOM ASMTYTB20BB02 High Brightness Tricolor LED Specifications:
- Package: PLCC-6 (Plastic Leaded Chip Carrier)
- Color: Red, Green, Blue
- Dimensions: Standard PLCC-6 size with encapsulation made of silicone resin
- Forward Current: Max 50mA for DC, 100mA peak
- Power Dissipation: 125mW for Red, 114mW for Green/Blue
- Junction Temperature: Max 125°C
- Operating Temperature Range: -40°C to +110°C
- Storage Temperature Range: -40°C to +120°C
- Viewing Angle: 120°
- Water Resistance: IPX6 (IEC 60529)
- Luminous Intensity: Max 1125-1800 mcd (Red), Max 560-715 mcd (Green), Max 1125-1800 mcd (Blue)
- Wavelength: 618–628nm (Red), 525–537nm (Green), 465–477nm (Blue)
- Electrical Characteristics: Forward Voltage 1.80–2.50V (Red), 2.80–3.80V (Green/Blue)
- Reflow Soldering Temperature: 240°C max for 20 sec; Lead-free at 255–260°C
- ESD Sensitivity: Class 1C (ESD sensitive), proper precautions required

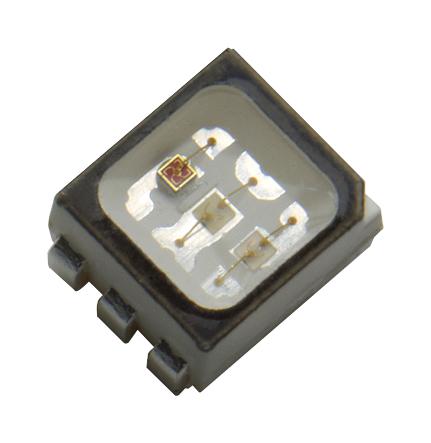

Buy the Avago Series T Tricolor LED: ASMT-YTB2-0BB02
Secure your Avago ASMT-YTB2-0BB02 high brightness tri-color surface-mount LED today and enhance your projects with reliable, high-contrast, and wide-angle illumination. Designed for indoor and outdoor full-color signs, these PLCC-6 LEDs boast water resistance, exceptional brightness, and compatibility with reflow soldering. Proper handling and storage are essential to maintain performance due to silicone encapsulation and moisture sensitivity. Perfect for signage, display lighting, and versatile illumination applications, ensuring durability, efficiency, and superior visual impact in any environment.
Buy Avago ASMT-YTB2-0BB02 now and experience unmatched reliability and performance for your full color display and signage needs.
