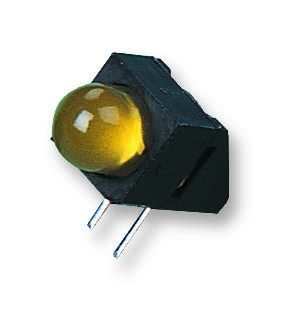

BROADCOM HLMP4719A00B2 Indicator LED
These low current tinted diffused LED lamps are optimized for minimal DC power use, tested at 2 mA to ensure consistent brightness for TTL output levels. Suitable for telecommunications, portable equipment, and keyboard indicators, they feature wide viewing angles, high efficiency, and multiple package options. The LEDs are designed with robust construction, offering reliable performance in various industrial applications. Variants include different colors, intensities, and form factors like T-1 and T-13/4 packages, supporting easy integration into electronic and automation systems. Ideal for indicator lights and low power signaling needs.
BROADCOM HLMP4719A00B2 Indicator LED Specifications:
- Package Options: T-1 (3 mm), T-13/4 (5 mm)
- Color Options: Red, Yellow, Green
- Luminous Intensity at 2 mA: 21-50 mcd depending on model
- Forward Voltage: 1.8 - 2.2 V
- Peak Wavelength: 565-635 nm
- Spectral Line Halfwidth: 28-36 nm
- Speed of Response: 90 ns to 500 ns
- Capacitance: 1 - 18 pF
- Thermal Resistance: 260-290 °C/W
- Maximum Power Dissipation: 14-17.5 mW
- DC Forward Current: 7 mA
- Transient Forward Current: 500 mA (10 ps pulse)
- Reverse Voltage: 5 V
- Operating Temperature Range: -40°C to 100°C
- Storage Temperature Range: -40°C to +100°C
Buy the Avago HLMP-4719 U–2013 Reliable Indicator LED for Industrial Applications
Order the Avago HLMP-4719A00B2 indicator LED online today to benefit from high efficiency, wide viewing angles, and reliable performance in telecommunication and industrial signaling. This low current diffused LED is designed for minimal power consumption, ensuring consistent brightness at just 2 mA. Available in multiple colors and package styles, it is suitable for assembling indicator panels, electronic devices, and automation systems. Purchase now and ensure your projects are equipped with dependable, high-quality LED indicators backed by a trusted manufacturer.
Buy Avago HLMP-4719A00B2 now and experience unmatched reliability and performance in low power LED indicator solutions.
Frequently Asked Questions
Where can I buy BROADCOM HLMP4719A00B2?
You can click on the BUY or RFQ button to purchase HLMP4719A00B2 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP4719A00B2?
You can download the HLMP4719A00B2 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP4719A00B2?
BROADCOM
