BROADCOM ASSR1228302E High-Voltage Solid-State Relay
The ASSR-1228 Series are high-voltage solid-state relays with a photo-MOSFET output, rated for 60V and 0.2A. Designed for switching AC/DC signals, they feature opto-isolation, low input current, and low on-resistance for efficient performance. Suitable for telecommunication, industrial, medical, and security applications, these relays are LED driven, RoHS compliant, and UL and CSA approved. Available in DIP and gull wing surface-mount packages, they ensure high reliability with insulation ratings up to 3750 Vrms and robust safety specifications.
BROADCOM ASSR1228302E High-Voltage Solid-State Relay Specifications:
- Output Voltage: 60V
- Output Current: 0.2A (standard), 0.4A (DC-only)
- Insulation Voltage: 3750 Vrms for 1 min
- Input Current: 3mA (typical)
- Input Voltage: ON at 3mA, OFF at 0.8V or less
- On-Resistance: 0.25Ω typical for DC, 1Ω typical for AC/DC
- Storage Temperature: -55°C to 125°C
- Operating Temperature: -40°C to 85°C
- Package Options: DIP-6, DIP-8, gull wing surface mount
- Lead-Free: Yes, RoHS compliant
- Isolation: Electrical isolation between input and output
- Soldering Temperature: 260°C for 10 seconds
- Switching Times: ON >0.7ms, OFF >0.04ms
- Safety Ratings: UL Recognized, CSA Certified

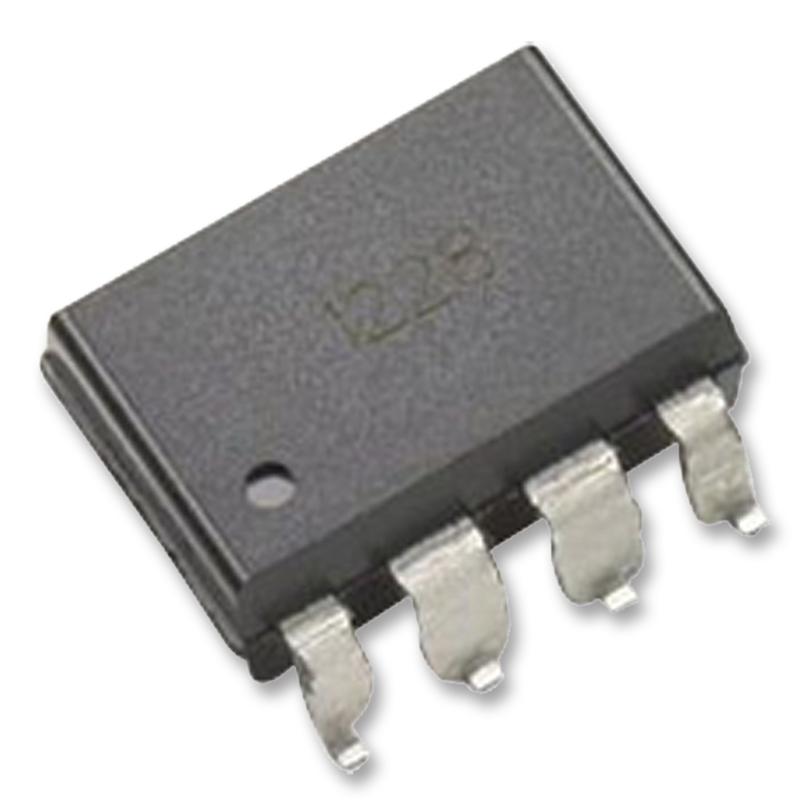

Buy the Buy Avago ASSR1228302E Part Number ASSR-1228 Online
Order the Avago ASSR-1228 series relay online for reliable high-voltage switching with low input current and excellent isolation features. Ideal for telecommunications, industrial control, and security applications, this relay offers robust performance with voltage ratings up to 60V and current capacity of 0.2A. Available in DIP and gull wing surface-mount packages, it’s RoHS compliant, UL recognized, and CSA approved. Easy to integrate into various systems, ensuring safety, efficiency, and long-term durability for your critical projects. Buy now for fast delivery and dependable operation.
Get Avago ASSR-1228 today—built for high-voltage switching, reliability, and low power consumption in industrial and telecommunication systems.
Frequently Asked Questions
Where can I buy BROADCOM ASSR1228302E?
You can click on the BUY or RFQ button to purchase ASSR1228302E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ASSR1228302E?
You can download the ASSR1228302E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ASSR1228302E?
BROADCOM
