BROADCOM HCNW4506000E Intelligent Power Module Optocoupler
The HCNW-4506-000E is a single-channel, 8-pin intelligent power module and gate drive interface optocoupler featuring an AlGaAs LED. The LED is optically coupled to an integrated high-gain photodetector, providing efficient isolation for IGBT or MOSFET gate drive applications. Its minimized propagation delay difference enhances inverter efficiency by reducing switching dead time. Key features include a minimum pulse width distortion of 450 ns, a common mode transient immunity of at least 15 kV/μs at VCM = 1500 V, a current transfer ratio exceeding 44% at 10 mA forward current, and a maximum working insulation voltage of 1414 V. Suitable for motor drive and industrial control applications.
BROADCOM HCNW4506000E Intelligent Power Module Optocoupler Specifications:
- Type: Single-channel, 8-pin optocoupler
- LED Type: AlGaAs
- Isolation Voltage: 1414 Vpeak
- Propagation Delay: 480 ns typical, 550 ns maximum
- Pulse Width Distortion: 450 ns
- Common Mode Transient Immunity: ≥15 kV/μs at VCM=1500V
- Current Transfer Ratio: >44% at 10 mA input
- Maximum Working Temperature: -40°C to 100°C
- Storage Temperature Range: -55°C to 125°C
- Input Forward Voltage: 1.2 V to 1.95 V depending on options
- Input Reverse Voltage: 3 V to 5 V
- Output Voltage Range: 0-30 V
- Maximum Input Current: 20 mA
- Maximum Output Current: 15 mA
- Maximum Power Dissipation: 100 mW (per device), total 145 mW
- Insulation Resistance: 10^9 Ω at 500 V
- Lead Solder Temperature: 260°C for 10s
- Package: 8-pin widebody DIP

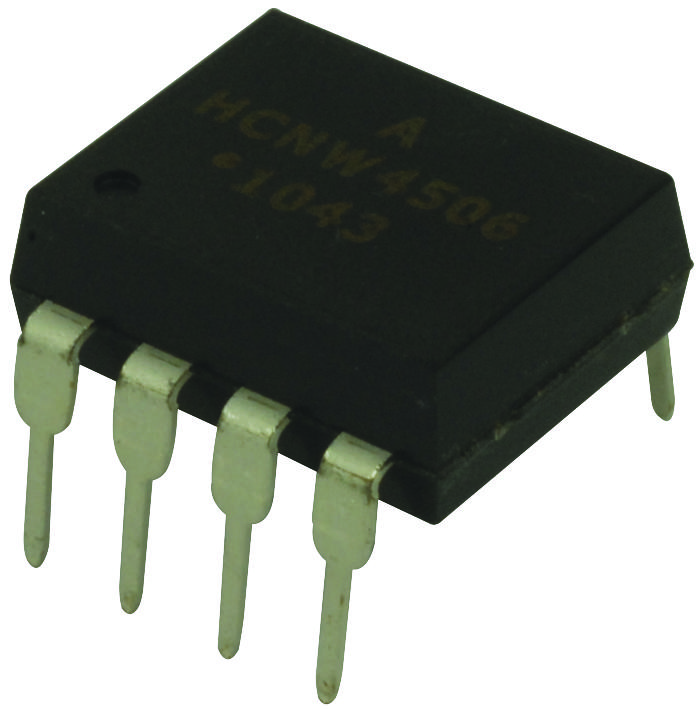

Buy the Buy Avago HCNW4506 Part Number HCNW4506000E Online
Order the Avago HCNW4506 optocoupler online now to ensure fast delivery and reliable performance for your motor drives and industrial control systems. Designed with AlGaAs LEDs and high-gain photodetectors, this 8-pin device offers superior electrical isolation, high insulation voltage of 1414 Vpeak, and rapid response times. Its minimized propagation delay and excellent transient immunity make it ideal for inverter efficiency and motor control applications. Easy to integrate, robust, and UL recognized, purchase HCNW4506 now for long-lasting, dependable operation.
Get Avago HCNW4506 today—built for high isolation, fast switching, and reliable industrial motor control performance.
Frequently Asked Questions
Where can I buy BROADCOM HCNW4506000E?
You can click on the BUY or RFQ button to purchase HCNW4506000E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCNW4506000E?
You can download the HCNW4506000E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCNW4506000E?
BROADCOM
