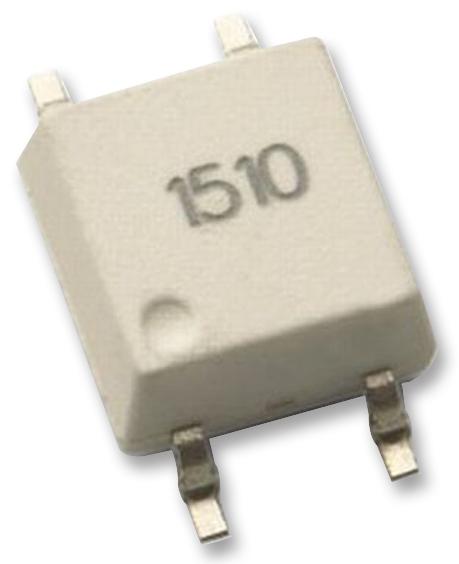

BROADCOM ASSR1510003E High Current Solid State Relay
The ASSR-1510 Series is a high-current, solid-state relay with photo MOSFET technology, rated for 60V/1.0A. It features optocoupling with infrared LED input and high-voltage MOSFET outputs, suitable for industrial controls, factory automation, and data acquisition. The relay offers fast switching times, low input current, and excellent isolation, rated for up to 3750 Vrms. Available in small outline and DIP packages, it is RoHS compliant, robust, and designed for reliable operation over a wide temperature range.
BROADCOM ASSR1510003E High Current Solid State Relay Specifications:
- Rated Voltage: 60V
- Rated Current: 1.0A (standard), 2.0A (DC-only output connection)
- Isolation Voltage: 3750 Vrms for 1 min
- On-Resistance: 0.12Ω typical DC-only, 0.35Ω typical AC/DC
- Switching Time: 0.25ms (Ton), 0.02ms (Toff)
- Temperature Range: -40°C to +85°C
- Input Current: 3mA minimum, low input CMOS compatibility
- Rated Power Dissipation: 40mW (input), 500-800mW (output)
- Package Types: SO-4, DIP-6, SO-8, Gull Wing Mount
- RoHS compliance: Fully RoHS 6 compliant
- Leakage Current: 0.5nA at Vo=60V
- Input Voltage (OFF): Up to 8V
- Input Forward Voltage: 11-13V at 5mA
- Collector-emitter voltage: 60V maximum
- VDE/CUL certifications: UL 1577, CSA
Buy the Vishay ASSR1510 – Reliable Solid State Relay for Industrial Applications
Order the Vishay ASSR1510 high current solid state relay online today and benefit from fast delivery, reliable performance, and RoHS compliance. Perfect for industrial automation, factory controls, and data acquisition systems, this relay features fast switching times, low input current, and excellent isolation ratings to ensure seamless integration into your equipment. With multiple package options including small outline and DIP versions, it provides versatile mounting and installation options. Buy now to enhance the reliability and efficiency of your industrial applications.
Buy Vishay ASSR1510 now and experience unmatched reliability and performance in industrial control and automation systems.
Frequently Asked Questions
Where can I buy BROADCOM ASSR1510003E?
You can click on the BUY or RFQ button to purchase ASSR1510003E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part ASSR1510003E?
You can download the ASSR1510003E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of ASSR1510003E?
BROADCOM
