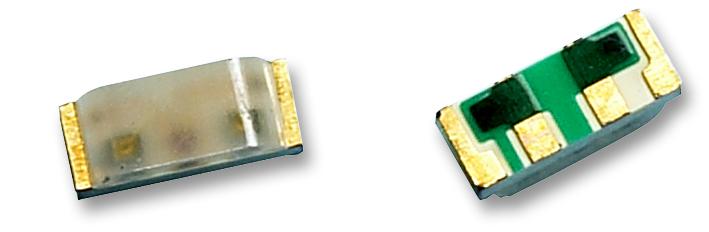

BROADCOM HSMFC115 Tri-Color Surface Mount LED
The HSMF-C115 is a compact, multi-color surface mount chip LED designed for backlighting, status indication, and front panel illumination. Featuring diffused optics and high brightness using AllnGaP and InGaN die technology, it offers a small 2.5 x 1.0 x 1.0 mm package, compatible with reflow soldering, and shipped in tape and reel for automated assembly. Its common anode configuration supports any color combination from red, green, and blue dies, making it ideal for versatile display and indicator applications in industrial, office automation, and home appliances.
BROADCOM HSMFC115 Tri-Color Surface Mount LED Specifications:
- Package Size: 2.5 x 1.0 x 1.0 mm
- Technology: AllnGaP and InGaN die
- Colors: Red, Green, Blue (diffused optics)
- Operating Current: 15-20 mA
- Power Dissipation: 36-78 mW
- Forward Voltage: Red 1.9-2.0 V, Green 2.0-2.6 V, Blue 3.4-3.9 V
- Luminous Intensity: Red up to 80 Im/W, Green 50-170 Im/W, Blue 60 Im/W
- Peak Wavelength: Red 626 nm, Green 525 nm, Blue 470 nm
- Viewing Angle: 120° (Red), 125° (Green & Blue)
- Temperature Range: -40°C to +85°C
- Reflow Soldering Compatible: Yes
- Package Quantity: 3000 units per reel
Buy the Avago Series HSMF-C115 Tri-Color Surface Mount LED: HSMFC115
Upgrade your electronic projects with the versatile HSMF-C115 tri-color surface mount LED. This compact, diffused optics LED offers vibrant red, green, and blue colors, and supports high brightness levels for clear indicators and backlighting. Compatible with reflow soldering, it comes in tape and reel packaging for ease of automation. Perfect for industrial equipment, home appliances, and office automation, this LED ensures high performance, durability, and wide application flexibility. Order online today and improve your product visibility and functionality.
Buy Avago HSMFC115 now and enhance your electronics with versatile, reliable tri-color LED lighting solutions for industrial and consumer applications.
