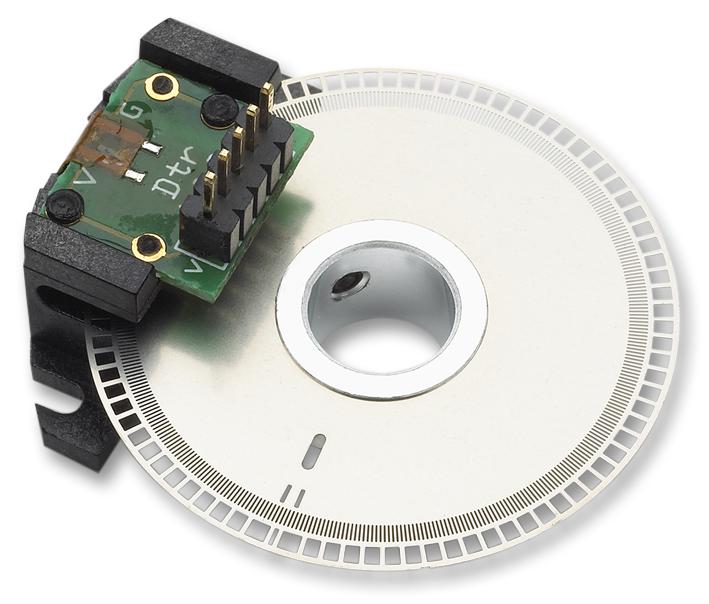

BROADCOM AEDB9140A13 Optical Encoder Module
The AEDB-9140 series is a compact, three-channel optical incremental encoder module that detects rotary position with high accuracy. Equipped with a codewheel, it provides resolution options from 100 CPR to 500 CPR, making it suitable for industrial automation, printers, and plotters. Featuring a highly collimated LED source and advanced photodetectors, it offers excellent tolerance to mounting misalignment. Its small size, TTL compatibility, and simple mounting make this encoder ideal for high-volume motion control applications. Designed to operate within -10°C to 85°C, it delivers reliable performance with minimal signal adjustment required.
BROADCOM AEDB9140A13 Optical Encoder Module Specifications:
- Resolution: 100 CPR to 500 CPR (Counts Per Revolution)
- Optical Radius: 11.00 mm (0.433 inch)
- Output Signals: Two quadrature channels plus index pulse
- Electrical Output: TTL compatible
- Supply Voltage: 5V ± 0.5V
- Operating Temperature: -10°C to 85°C
- Power Consumption: approximately 57 mA at typical load
- Dimensions: Small package designed for easy mounting, dimensions include shaft diameter options from 3mm to 8mm
- Signal Timing: Pulse width approximately 180°, phase approximately 90°, index pulse width about 90°e
- Mounting: Screw mounting with recommended screw size M1.6 x 0.35, mounting torque 1 in-lb (0.113 Nm)
Buy the Avago AEDB9140 Series – Reliable Rotary Encoder for Industrial Applications
Order the Avago AEDB9140 optical encoder module online today to enjoy high-resolution rotary sensing capabilities. Ideal for automation, printers, and industrial machinery, this compact, TTL-compatible device offers resolutions from 100 to 500 CPR. Its precise detection, simple mounting, and stable operation ensure reliable motion control in demanding environments. Designed with a small form factor and low power consumption, it enhances system reliability and simplifies installation. Purchase now for superior performance and trouble-free integration into your automation systems.
Buy Avago AEDB9140 encoder now and experience precise motion detection, easy mounting, and dependable high-resolution performance.
