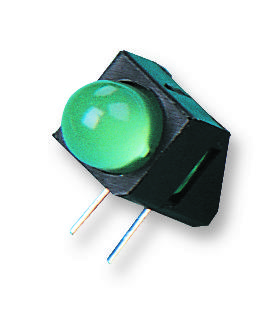

BROADCOM HLMP4740A00B2 Low Current LED Lamp
These low current tinted diffused LED lamps are optimized for low DC power operation, testing at 2 mA for consistent brightness suitable for TTL and CMOS applications. Available in various colors including red, yellow, and green, they feature wide viewing angles and multiple package styles such as T-1 3/4 and T-1. Designed for low power circuits, telecommunications, portable devices, and keyboard indicators, these LEDs ensure efficiency, reliability, and compatibility with automated manufacturing processes.
BROADCOM HLMP4740A00B2 Low Current LED Lamp Specifications:
- Package Styles: T-1 3/4 (5 mm), T-1 (3 mm)
- Colors: Red, Yellow, Green
- Luminous Intensity at 2 mA: 1.5 to 50 mcd (varies by color and bin)
- Forward Voltage: 1.8V to 2.2V (typical)
- Peak Wavelength: 569 nm to 635 nm
- Spectral Line Halfwidth: 28 to 40 nm
- Response Time: 90 to 500 ns
- Capacitance: 1 to 18 pF
- Thermal Resistance Junction to Cathode: 260°C/W to 290°C/W
- Maximum Power Dissipation: 14 to 17.5 mW depending on color
- Maximum DC Forward Current: 7 mA
- Transient Forward Current: 500 mA (10 ps pulse)
- Reverse Voltage: 5.0 V
- Operating Temperature Range: -40°C to 100°C
- Storage Temperature: -40°C to 100°C
- Soldering Conditions: Max temperature 250°C, dwell time 3 sec
Buy the Avago Series Low Current LED Lamps: HLMP4740A00B2
Enhance your electronic assembly with our high-efficiency low current LED lamps, available in multiple colors and package styles such as T-1 3/4 and T-1. Designed for low power circuits, they deliver consistent brightness tested at 2 mA, making them ideal for indicators in telecommunications, portable devices, and keyboard backlighting. Their wide viewing angles and high reliability ensure long-term performance in various applications, combining quality with cost-effective performance. Purchase online now for quick delivery and superior indicator solutions.
Order your Avago Series Low Current LED Lamps HLMP4740A00B2 today and give your electronic projects reliable, efficient indicator lighting solutions.
Frequently Asked Questions
Where can I buy BROADCOM HLMP4740A00B2?
You can click on the BUY or RFQ button to purchase HLMP4740A00B2 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HLMP4740A00B2?
You can download the HLMP4740A00B2 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HLMP4740A00B2?
BROADCOM
