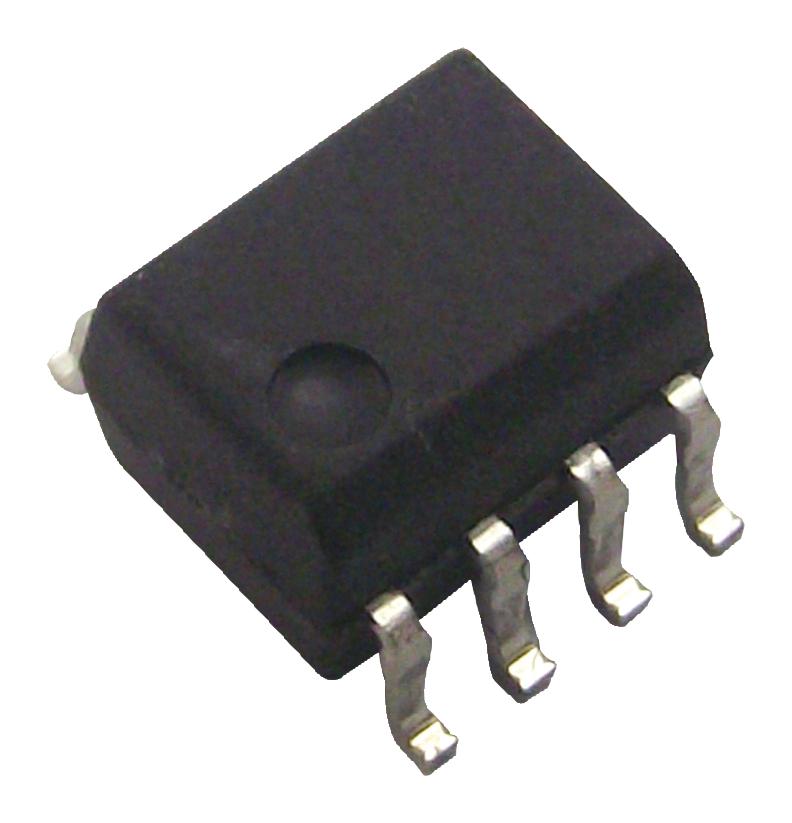

BROADCOM HCNW139300E High Gain Optocoupler
The HCNW139300E is a high-gain, industrial-grade optocoupler designed for low input current and high output current applications. It features a widebody encapsulation suitable for safety standards and provides excellent electrical isolation. This optocoupler guarantees a current transfer ratio of up to 4500% at 0.5 mA input, with a high output current capacity of 60mA, making it ideal for ground isolation in low power systems, line receivers, and high voltage insulation. Certified for UL, CSA, and IEC standards, it ensures reliable performance in various industrial environments.
BROADCOM HCNW139300E High Gain Optocoupler Specifications:
- Type: Widebody DIP-8 package
- Input Current: 0.5 mA (guaranteed minimum)
- Output Current: Up to 60mA
- Current Transfer Ratio: Up to 4500%
- Isolation Voltage: 3750 V rms (UL), 5000 V rms option
- Isolation Resistance: > 10^10 Ω at 500 V
- Maximum Storage Temperature: 125°C
- Maximum Operating Temperature: 85°C
- Reflow Temperature Profile: 245°C for 8 minutes max
- Lead Solder Temperature: 260°C for 10 seconds
- Peak Forward Input Voltage: 5 V
- Reverse Voltage: 3 V (max)
- Capacitance: 90 pF at 1 MHz
- Insulation and Safety: IEC/EN/DIN approved, pollution degree 2
Buy the Buy Avago HCNW139300E Part Number HCNW139300E Online
Purchase the Avago HCNW139300E optocoupler online today and enjoy fast delivery. Designed for industrial applications, it offers high transfer ratio, excellent electrical isolation, and safety certifications. Its widebody encapsulation ensures durability and compliance with safety standards such as UL, CSA, and IEC. This device is perfect for ground isolation, high voltage insulation, and low power systems, providing reliable performance in various industrial environments. Buy now to upgrade your system with a trusted, high-quality optocoupler that guarantees safety and efficiency.
Order your Avago HCNW139300E optocoupler today and ensure reliable electrical isolation in your industrial systems with high transfer ratio and certified safety standards.
Frequently Asked Questions
Where can I buy BROADCOM HCNW139300E?
You can click on the BUY or RFQ button to purchase HCNW139300E from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HCNW139300E?
You can download the HCNW139300E datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HCNW139300E?
BROADCOM
